MUTOH SC-650 - SC-Series Y-Rail Assembly Parts

Maintenance Manual – SC Cutting Plotter
88 AP-74030, Rev / B

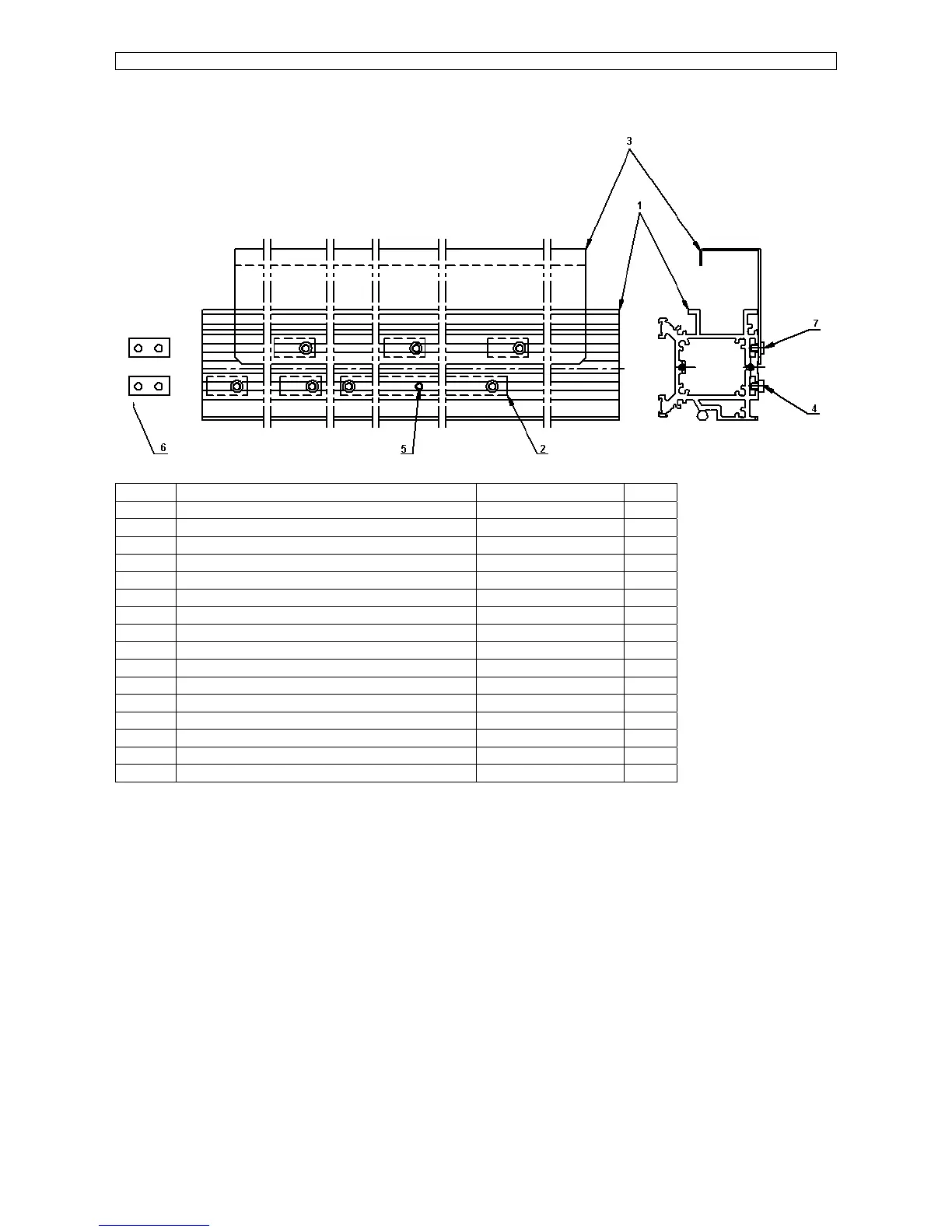

8.11. Y-rail assy.
Ref. Description Partnumber Qty
1 Y-rail SC-650 ME-10401 1
1 Y-rail SC-750 ME-10408 1
1 Y-rail SC-1000 ME-10410 1
1 Y-rail SC-1300 ME-10416 1
2 Grid indication rail SC-650 ME-20646 1
2 Grid indication rail SC-750 ME-20746 1
2 Grid indication rail SC-1000 ME-21646 1
2 Grid indication rail SC-1300 ME-21255 1
3 FCC cable guide SC-650 MY-20050 1
3 FCC cable guide SC-750 MY-20051 1
3 FCC cable guide SC-1000 MY-20052 1
3 FCC cable guide SC-1300 MY-21254 1
4 Screw M4x6 black DR-4008-41838 4-3
5 Set screw M3x3 DR-4007-41200 1-3-4
6 Screwplate DR-2164-41836 5-6
7 Screw M4x6 BM-6200-604006 3-4
