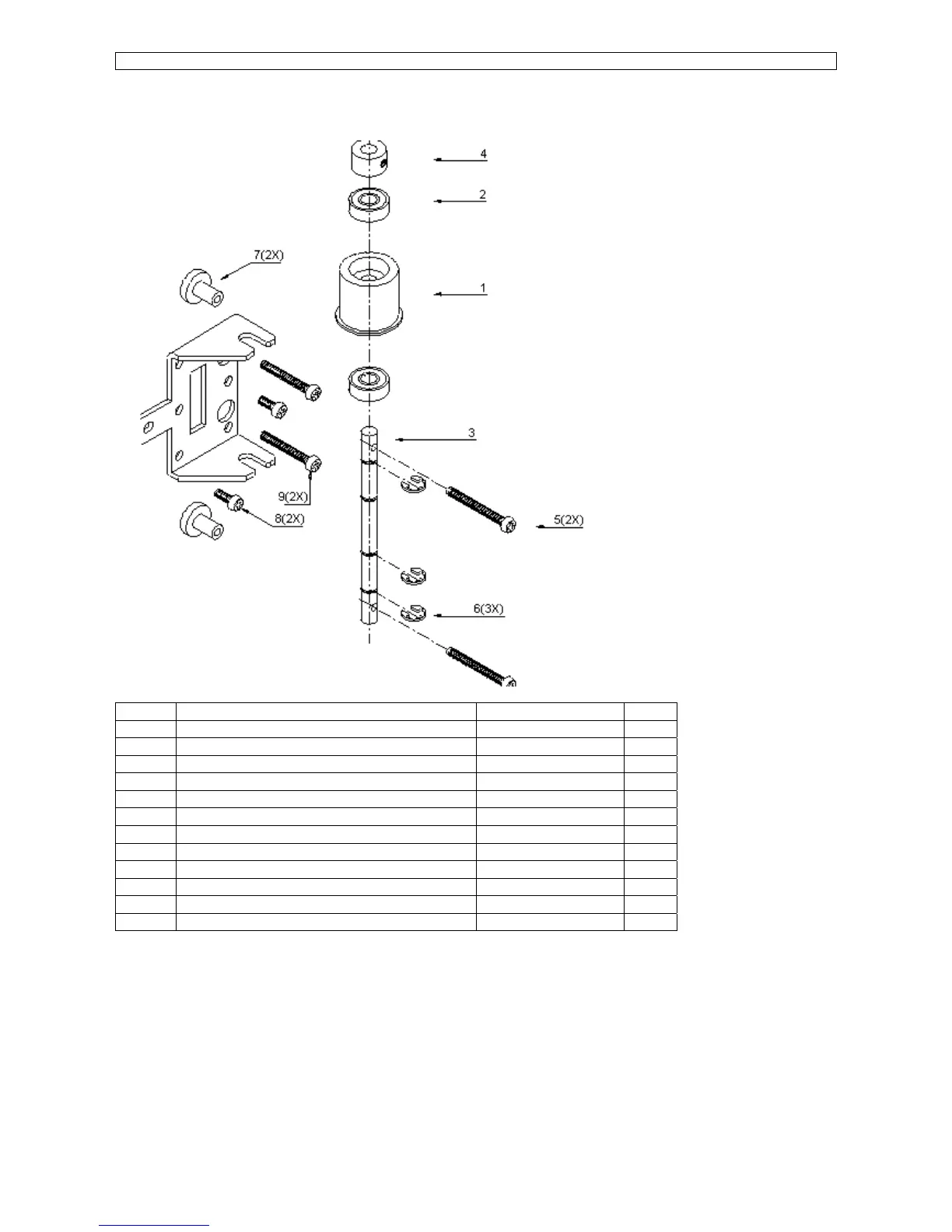

8.14. Y-axis return pulley assy.
Ref. Description Partnumber Qty
# Return pulley assy MY-47675 1
1 Return pulley DE-47075 1
2 Bearing DE-47095 2
3 Shaft ME-20058 1
4 Set-ring and screw BR-32000 1
5 Screw M3x30 DR-4001-45094 2
6 E-ring BR-31050 3
- ---------------------------------------------------------- --------------------------- -
# Return pulley bracket ME-20607 2
7 Screw foot (plastic) DE-47091 2
8 Screw M3x8 DR-4001-43329 2
9 Screw 3.5x25 BM-2100-135025 2
