MUTOH SC-650 - SC-550 Pressure Roller UP;DOWN Mechanism Parts

Maintenance Manual – SC Cutting Plotter
114 AP-74030, Rev / B

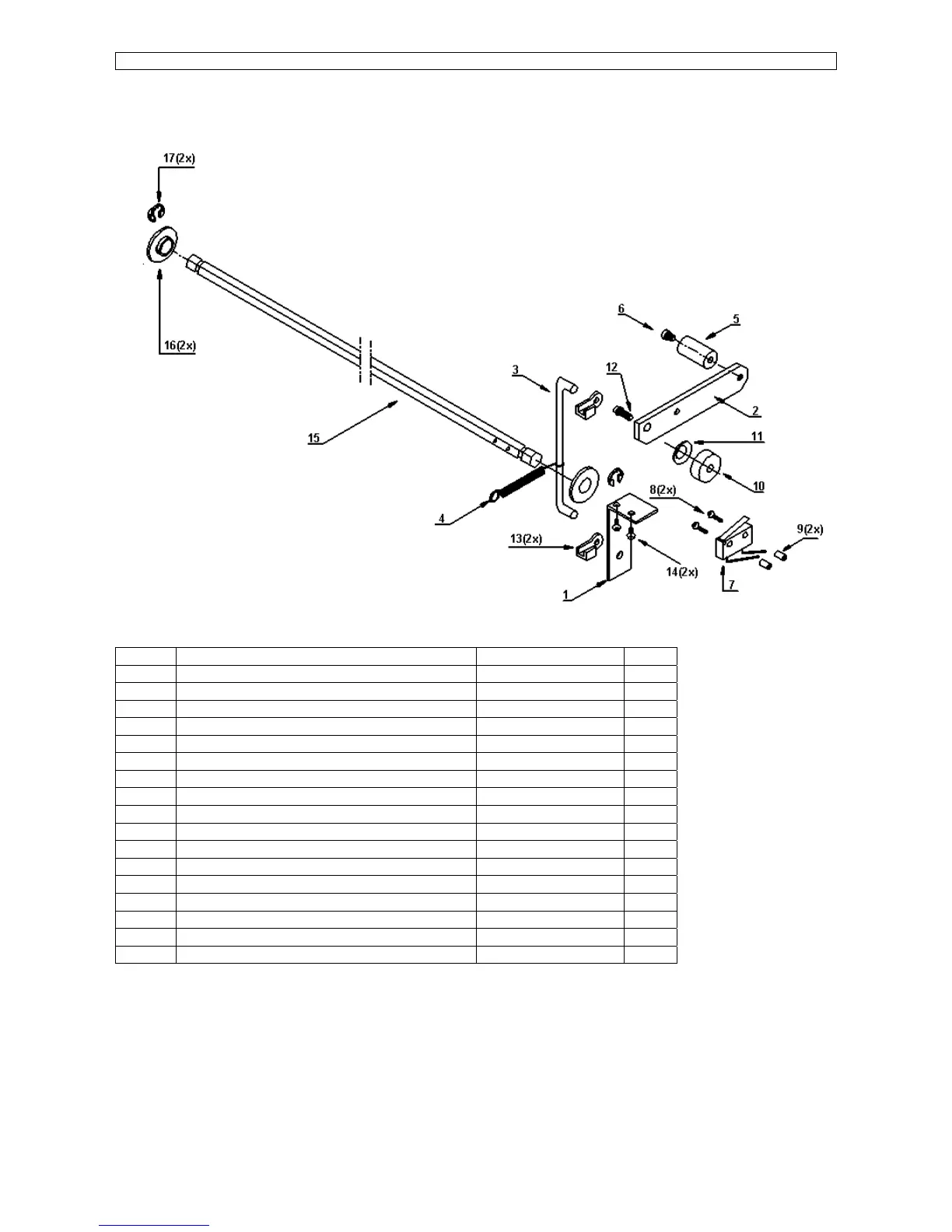

9.13. Pressure roller UP/DOWN mechanism SC-550.
Ref. Description Partnumber Qty
1 Turn over plate ME-20503 1
2 Pressure lever ME-20524 1
3 Transmission shaft ME-20504 1
4 Spring DE-45673 1
5 Knob UP/DOWN ME-20640 1
6 Hex screw M4x6 DR-4008-41834 1
7 µ Switch UP/DOWN E-41761 1
8 Screw M2x14 BM-5000-002014 2
9 Plastic spacer BR-40301 2
10 Spacer BR-10011 1
11 Spring washer BR-24650 1
12 Screw M4x16 DR-4001-44611 1
13 Clamp shaft DE-44782 2
14 Screw M3x8 DR-4001-43329 2
15 Hex. Shaft ME-20776 1
16 Plastic bearing BR-40010 2
17 E-ring BR-31070 2
