NCR CX5 User Manual

Product Overview 1-23
USB Centric I/O (Retail)
Base

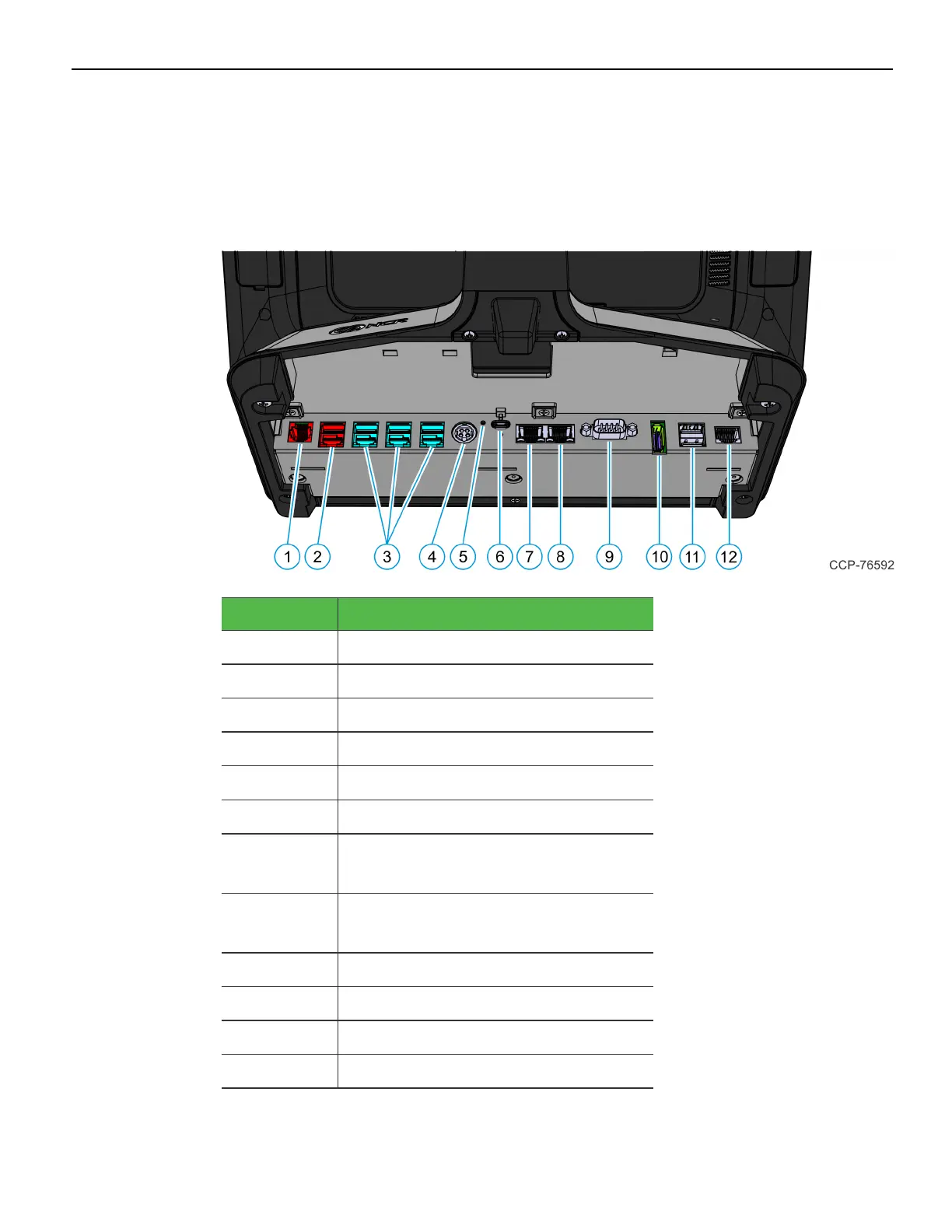

The following are the default I/O ports for the NCR CX5 All-in-One POS (7773) with a
USBCentric I/O(Retail)Base.
Callout Port Name
1 Cash Drawer
2 USB24V
3 USB12V, Ports C to E
4 24V Power In
5 Status LED
6 USB-C
7 LANOut
Note: Connect to the CXHead
8 LANIn
Note: Connect to Ethernet Network
9 DB9 Serial (Standard UART)
10 DisplayPort
11 Dual USB 3.0
12 RJ50 Serial (Enhanced UART)

NCR CX5 Specifications

General

Memory	4GB DDR3
Touch Technology	Projected Capacitive
Operating System	Windows 10 IoT
Ports	Ethernet
Weight	5.5 kg
