NCR CX5 User Manual

Product Overview 1-35

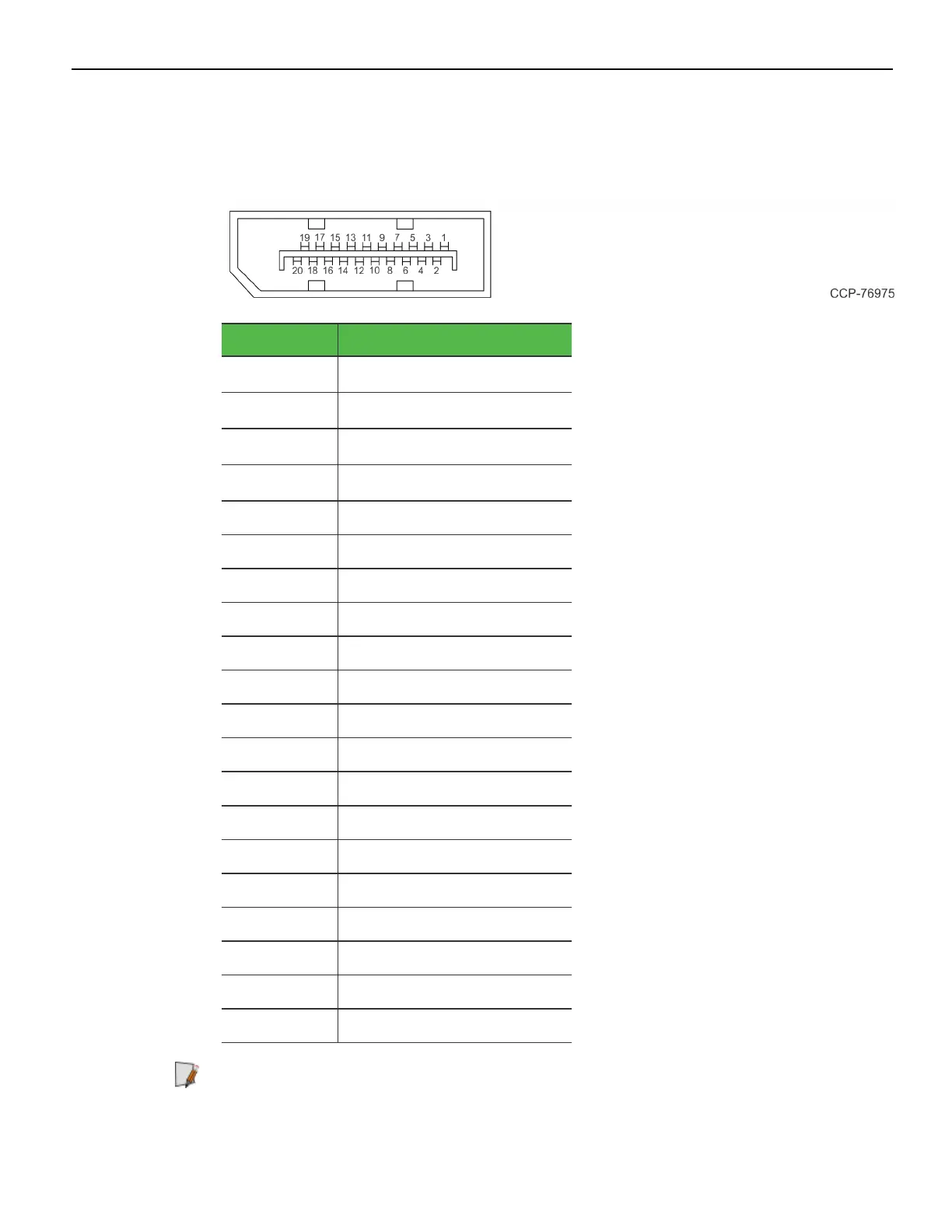

DisplayPort
The I/O Board provides a 2-lane DisplayPort. Lanes 2 and 3 of the DisplayPort are not
connected internally.
Pin Signal Name
1
ML_Lane0 (p)
2
GND
3
ML_Lane0 (n)
4
ML_Lane1 (p)
5 GND
6 ML_Lane1 (n)
7 ML_Lane2 (p)
8 GND
9 ML_Lane2 (n)
10 ML_Lane3 (p)
11 GND
12 ML_Lane3 (n)
13 CONFIG1
14 CONFIG2
15 AUXCH (p)
16 GND
17 AUXCH(n)
18 Hot Plug Detect
19 Return
20 DP_PWR
Note: DisplayPort does not support dual-mode DisplayPort (DP++). Use the Active
Adapter DisplayPort /M to HDMI/F (NCR part number 497-0530701) if driving an
HDMI display.
