2-58 Hardware Installation
Installing the Cash Drawer

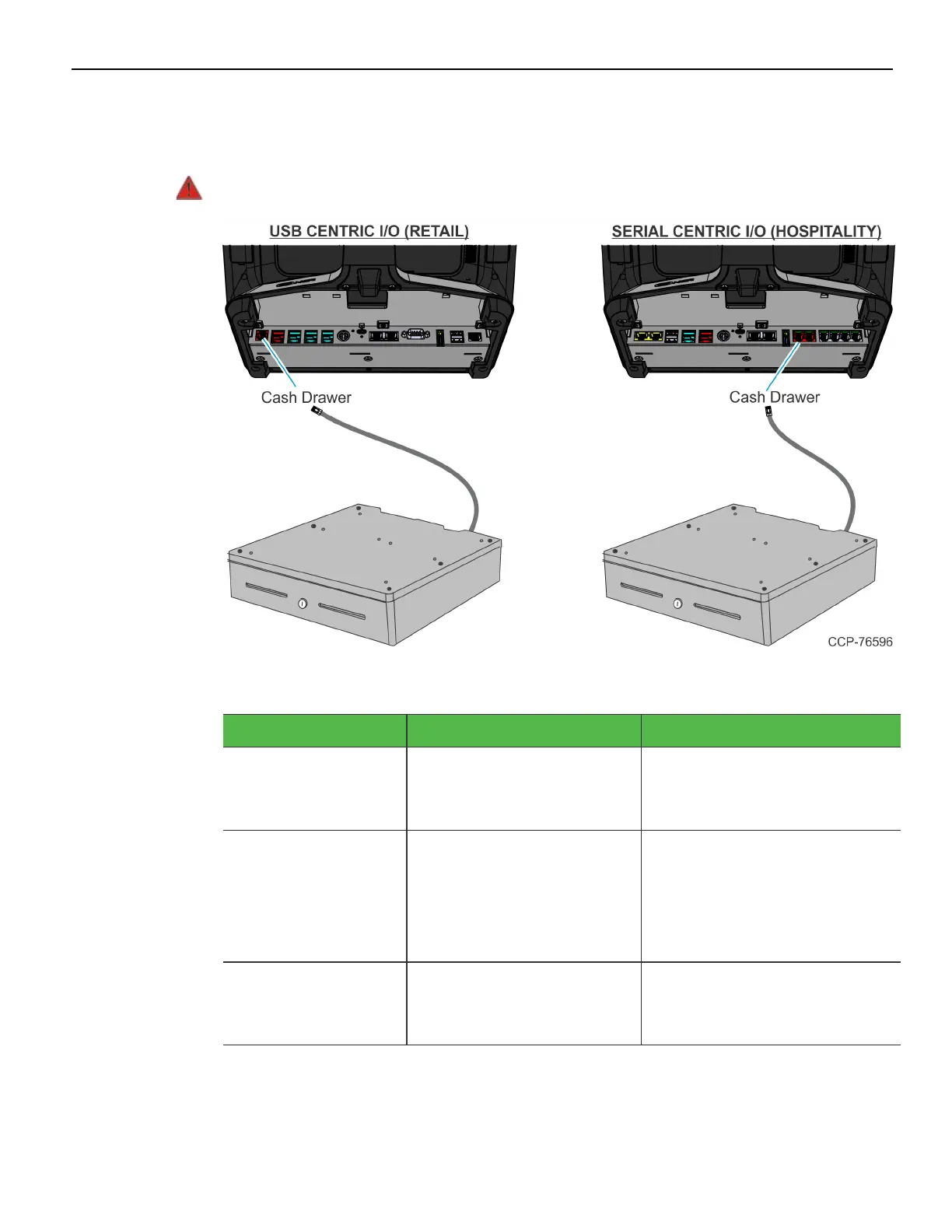

The Cash Drawer can be connected to the Cash Drawer connector on the Base.
Warning: Non-NCRCash Drawers must contain a protective diode.
The table below shows the cable options.
Cable Description Notes
1432-C516-0009 Dual Cash Drawer Splitter
for 24V cash drawers
Required if using two 24V cash
drawers on a CX5 USBCentric
I/O.
1432-C517-0009 12V Cash Drawer (RJ12)
Adaptor for Single or Dual
Cash Drawer
Required if using 12V cash
drawers (legacy Radiant) on a
CX5 USBCentric I/O. Cable
allows software to see which
drawer is open/closed.
1432-C828-0010 CX7 Single Cash Drawer 6-
pin to 4-pin (12V) Cable
Required if using 12V cash
drawer on a CX5 USBCentric
I/O or Serial Centric I/O .
