Product Overview 1-33
Cash Drawer
Cash Drawer Connector for USBCentric I/O

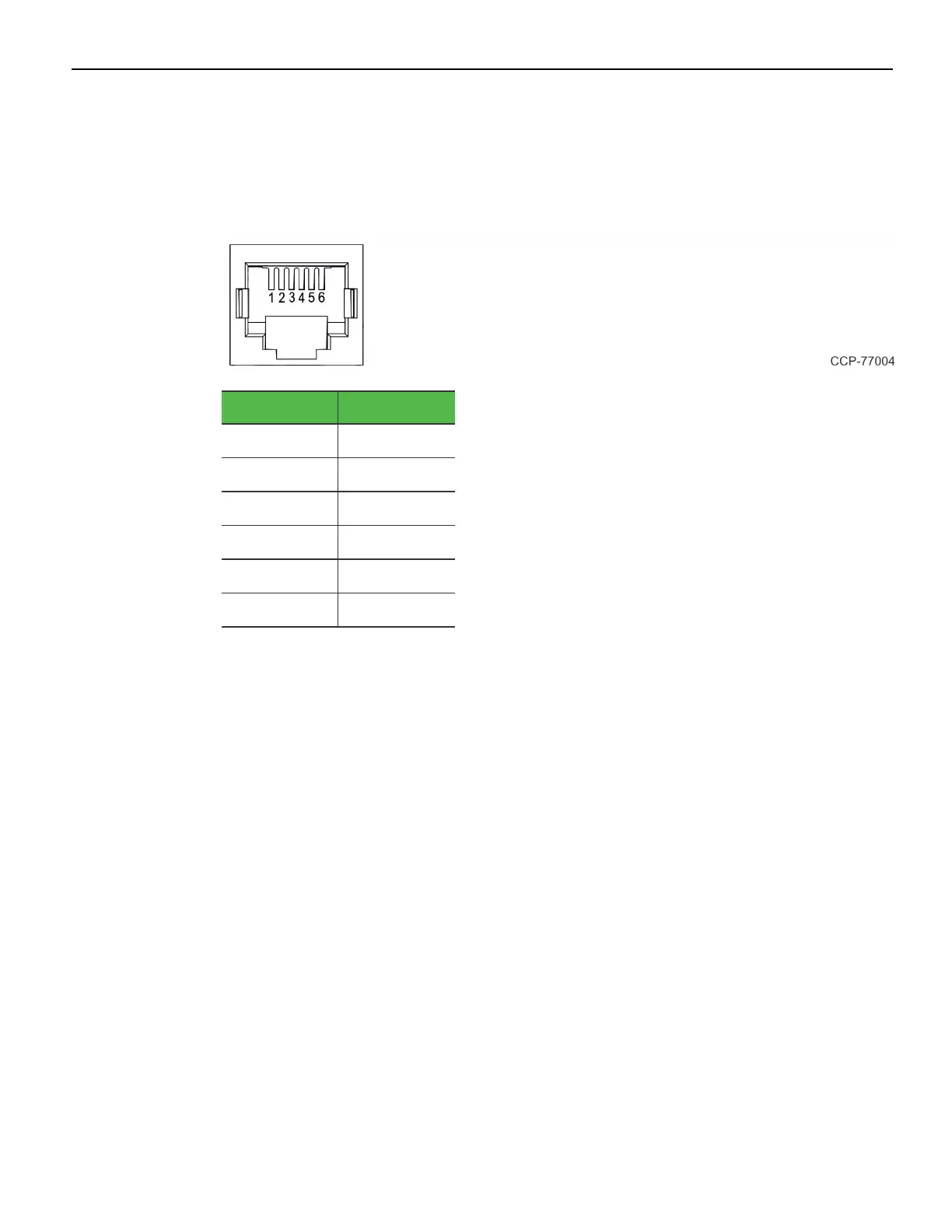

The USBCentric I/O Board provides a single 6-position RJ12 connector (Molex 44248-
0065 or NCR approved equivalent).
Pin Signal Name
1 Frame Gnd
2 Solenoid A
3 Drawer A/B
4 +24V/12V
5 Solenoid B
6 Logic Gnd
