NCR CX5 User Manual

2-54 Hardware Installation
Installing the Terminal

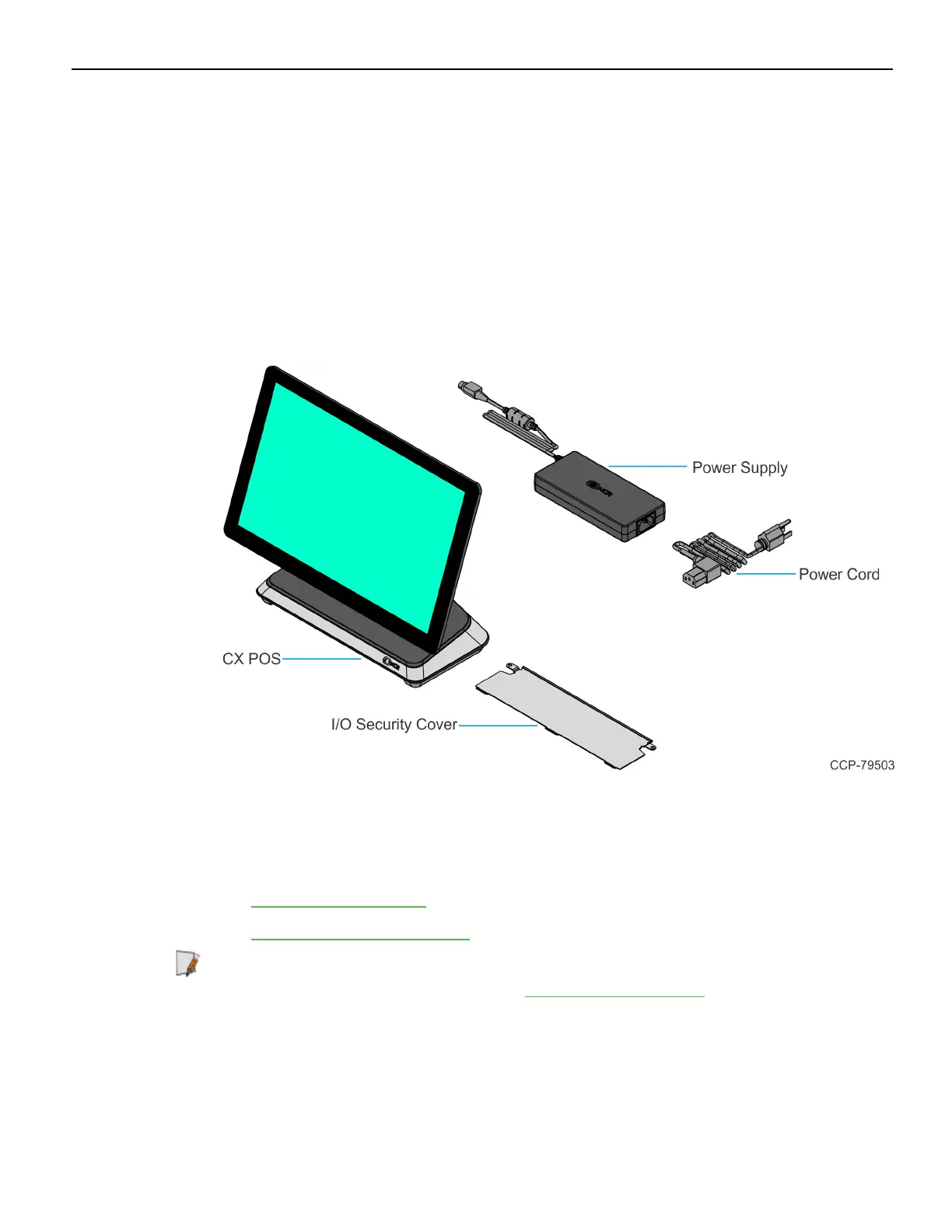

This chapter explains how to perform an "Out-of-box" installation of a CX5 configured
with the Base and how to connect optional peripheral devices. The standard items
included in the box are:
• CX5 POS
• Power Supply
• Power Cord
• I/OSecurity Cover
The CX5 comes fully assembled and ready to use. All that is required to install is
connect the AC Power Cord, LAN Cable, and peripheral device cables.
For more information about the CX5 I/O ports, refer to:
• USB Centric I/O (Retail) on page23
• Serial Centric I/O(Hospitality) on page26
Note: The POSLCD has a protective film. After removing the film, the LCD should be
cleaned. For more information, refer to Cleaning the Touchscreen on page82.

NCR CX5 Specifications

General

Memory	4GB DDR3
Touch Technology	Projected Capacitive
Operating System	Windows 10 IoT
Ports	Ethernet
Weight	5.5 kg
