NCR CX5 User Manual

1-30 Product Overview
Remote I/OChassis

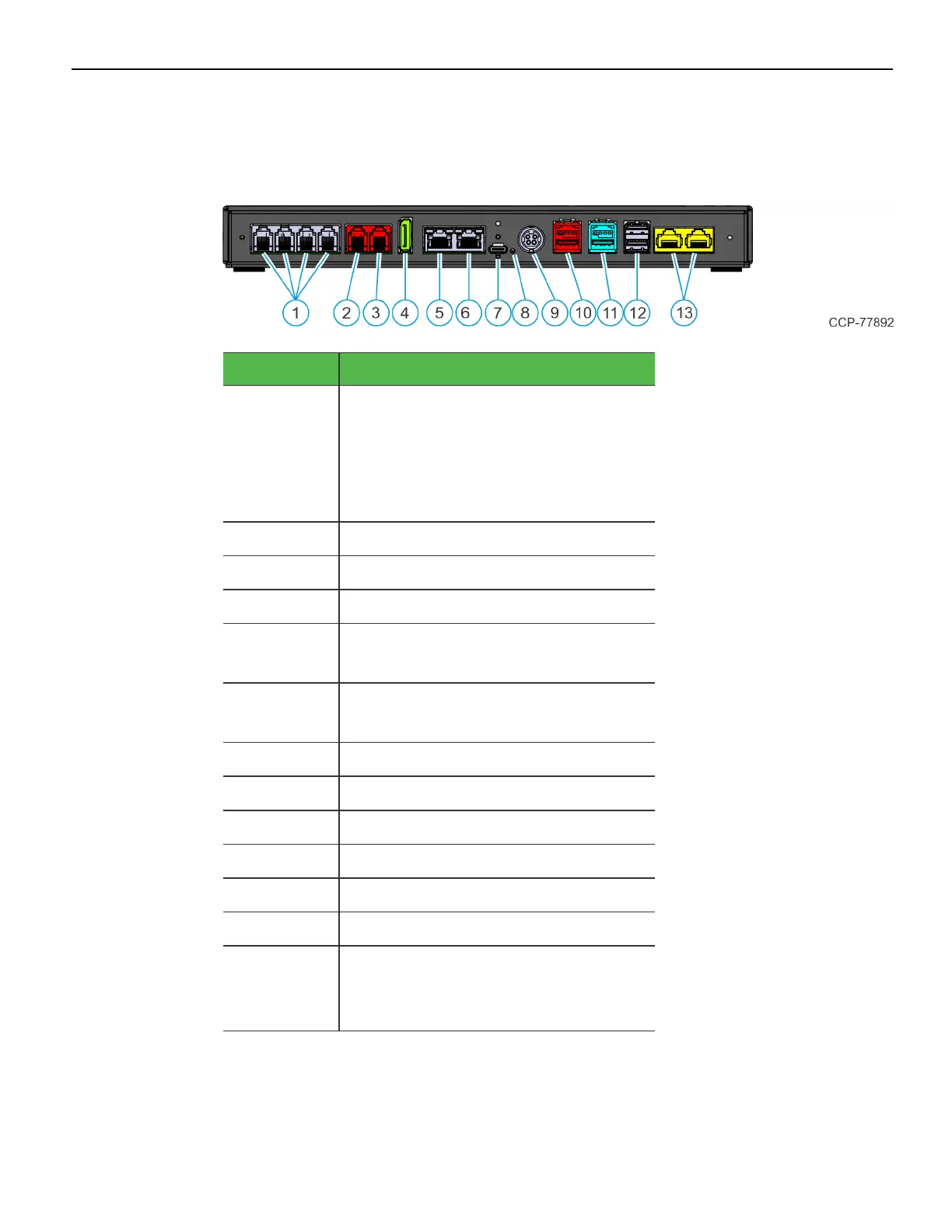

The following are the default I/O ports for the NCR CX5 All-in-One POS (7773) Remote
SerialCentric I/O(Hospitality)Chassis.
Callout Port Name
1 RJ12 Serial
• COM1 (Enhanced UART)
• COM2 (Standard UART)
• COM3 (Enhanced UART)
• COM4 (Standard UART)
2 Cash Drawer A
3 Cash Drawer B
4 DisplayPort
5 LANIn
Note: Connect to Ethernet Network
6 LAN Out
Note: Connect to the CXHead
7 USB-C
8 LED
9 24VPower In
10 USB24V
11 USB12V
12 Dual USB 3.0
13 RJ45 Serial
• COM5 (Enhanced UART)
• COM6 (Standard UART)

NCR CX5 Specifications

General

Memory	4GB DDR3
Touch Technology	Projected Capacitive
Operating System	Windows 10 IoT
Ports	Ethernet
Weight	5.5 kg
