NCR CX5 - Lan; Power in

1-36 Product Overview

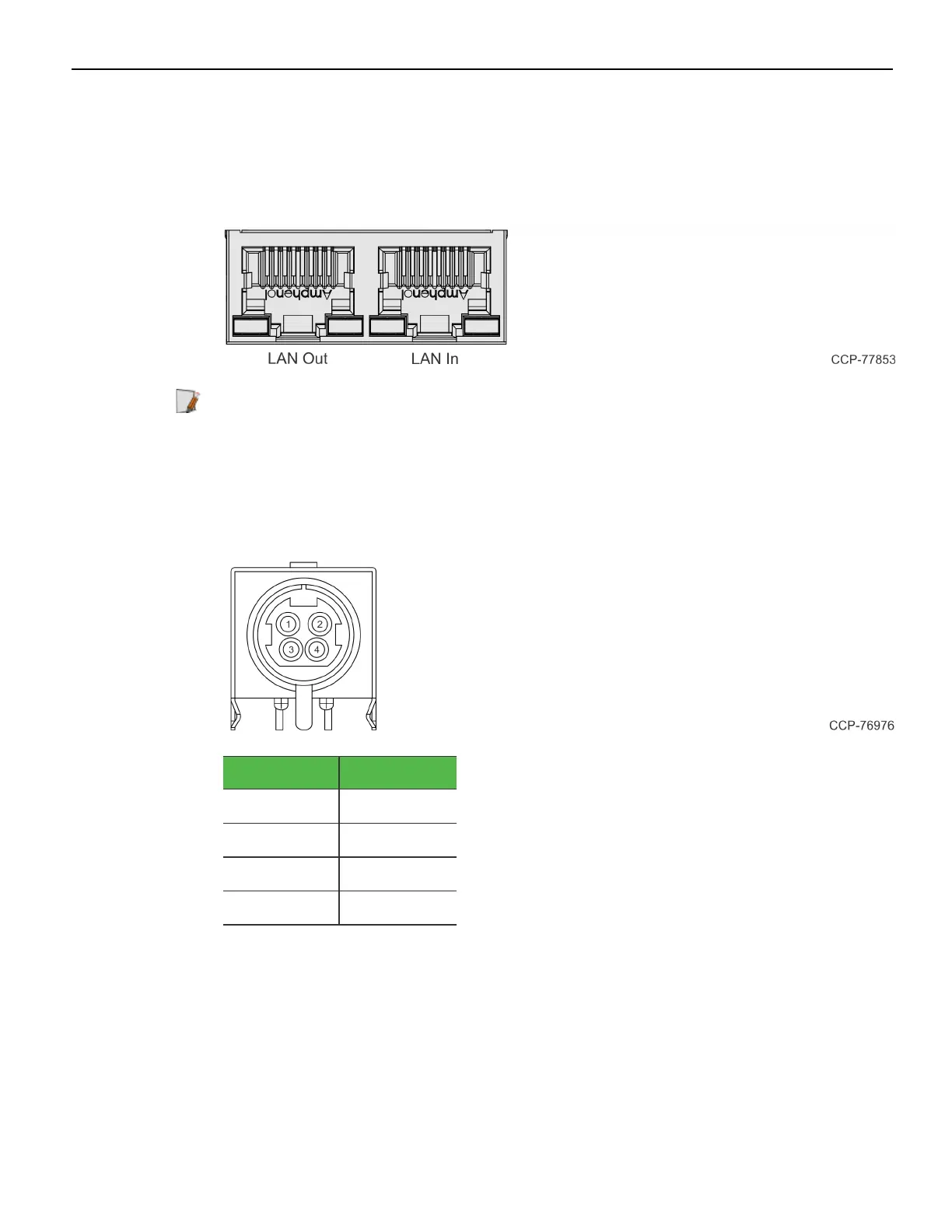

LAN
Both USBCentric and Serial Centric I/O Boards provide Gigabit Ethernet support on an
RJ45 connector using a passthrough connection to the motherboard. The connector does
not feature an LED indicator.
Note: The Integrated I/O does not have LANOut and LANIn Ports.
PowerIn
Both USBCentric and Serial Centric I/O Boards accept +24V DC voltage input from an
external power supply. The Power In connector is a 4-pin DIN - CUI PD-40S or
equivalent.
Pin Signal Name
1 GND
2 24V
3 GND
4 24V
