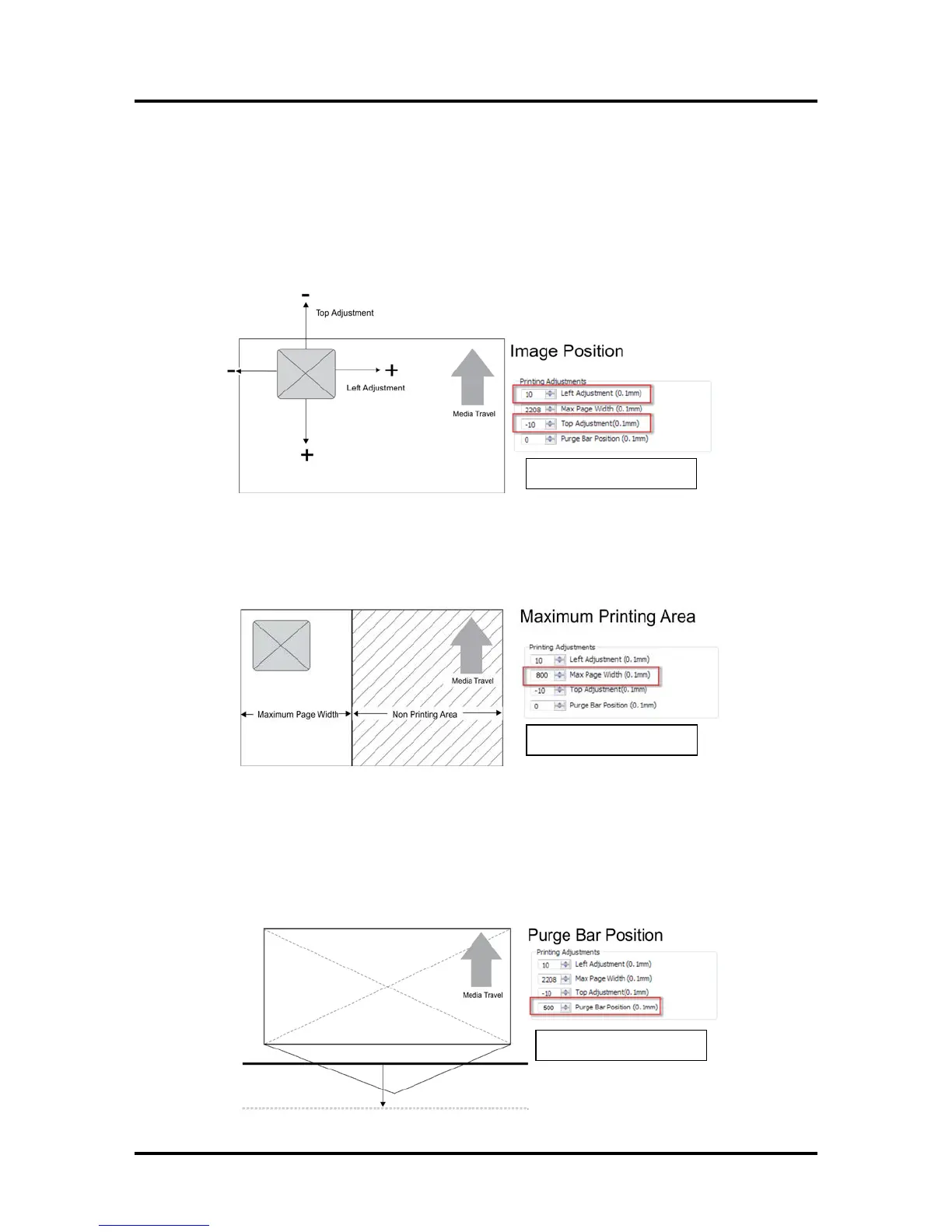

Driver Properties Printing Adjustments - Quick Reference
These features are located under the Layout tab of the Printer Driver (R12.01)
Le
ft Adjustment
Range: -30 (-3mm) left to 2000 (+200mm) right. Default = 0
- Moves the image area, left or right on the media.
Top Adjustment
Range: -50 (-5mm) up to 2000 (+200mm) down. Default = 0
- Moves the image up or down on the media.
M
ax Page Width
Range: 5 (0.5mm) to 2208 (220.8mm). Default = 2208 (max print width of printer)
– Lets you set how wide the actual print area will be. Reducing this value from 2208 will reduce
the max print width of the printer.
Pu
rge Bar Position*
Range: -538 (-53.8mm) up to 2000 (+200mm) down. Default = 0
– Allows you to adjust the purge bar location; to account for the extra length needed to reach the
actual gap between pieces.
Tip: Set value so purge bar is positioned about 3 mm past the trailing edge of the media.
* See also “Purge Bar Position” in the “Using the Toolbox Utility” section.
