SECTION 5
MAINTENANCE
85
Removing Jammed Media
Clearing a jam depends on where the jam occurred.
From the Feed Section: Remove media stack. Loosen and lift the sheet
separators to clear the jam. Then re-adjust the sheet separators as described in
this manual.

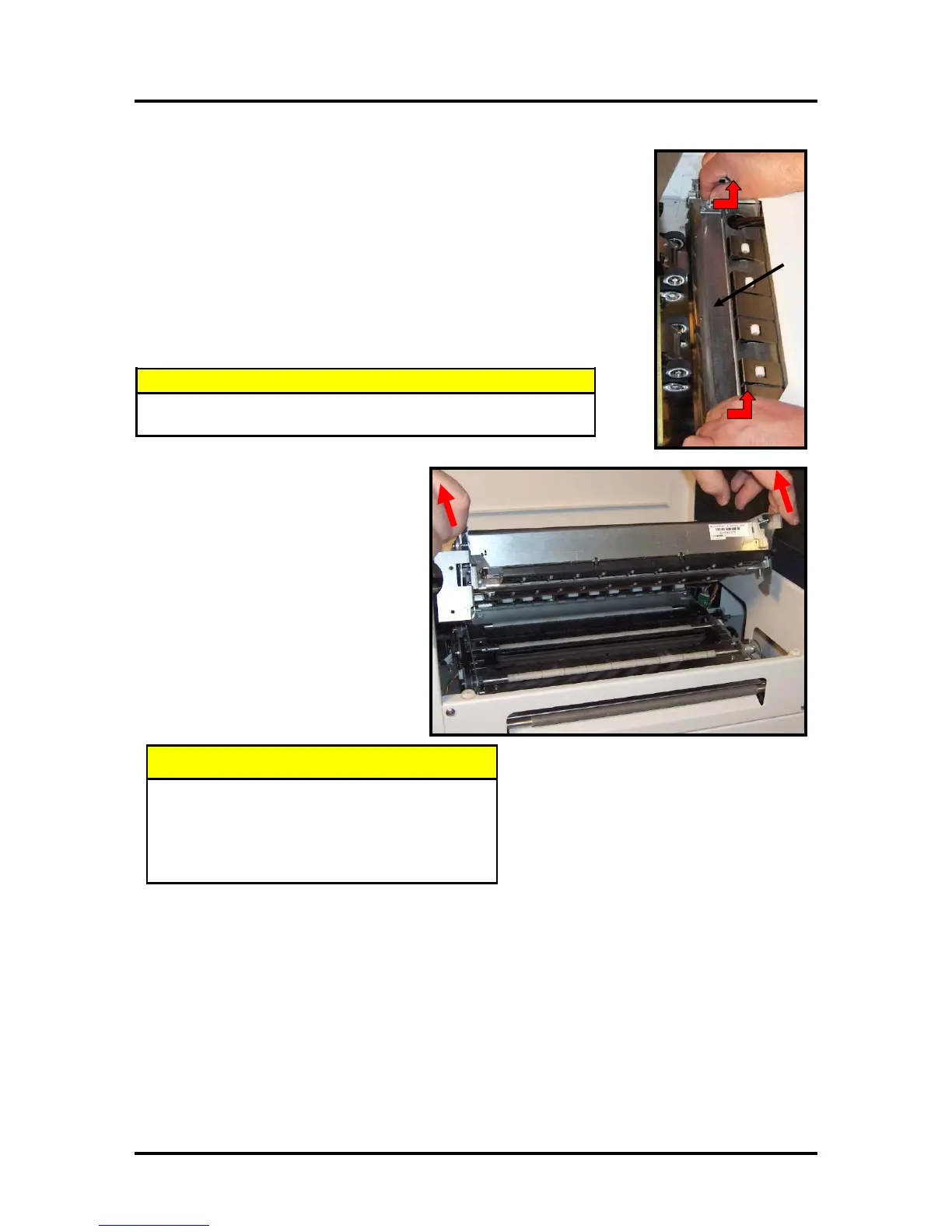

Under the Antistatic Brush Assembly: If necessary, remove the Antistatic
Brush Assembly [A] to access jammed material. Unlatch the two latches (one
on either side of the Assembly) and lift the assembly off the four mounting pins
as shown. Do not bend the fingers! Clear the jam, and then carefully reinstall
the Antistatic Brush Assembly. Make sure brush assembly is correctly
reinstalled and aligned before starting to print. Assembly should sit flat on
transport area surface
BE CAREFULL NOT TO PINCH OR CUT THE INK HOSES
WHEN RE-INSTALLING THE ANTISTATIC BRUSH ASSY.
From the Print Engine Area: Open the
Top Cover. Lift up on the two latches (one
on each side of the print engine assembly)
and raise (swing open) the Clamshell [C].
Clear the jam, then lower and re-latch the
Clamshell. Then close the Top Cover.
HOLD ONTO BOTH LATCHES WHEN
OPENING AND CLOSING THE PRINT ENGINE
CLAMSHELL TO PREVENT DAMAGE.
DO NOT ALLOW THE CLAMSHELL DROP OR
SLAM CLOSED.
Double-Feeds
Double-feeds, or overlapping media, can be corrected by readjusting the Sheet Separators (See Setting up
the Feed), or replacing the sheet separators (See “Replacing the Sheet Separators”).
