SECTION 1
GETTING ACQUAINTED
3

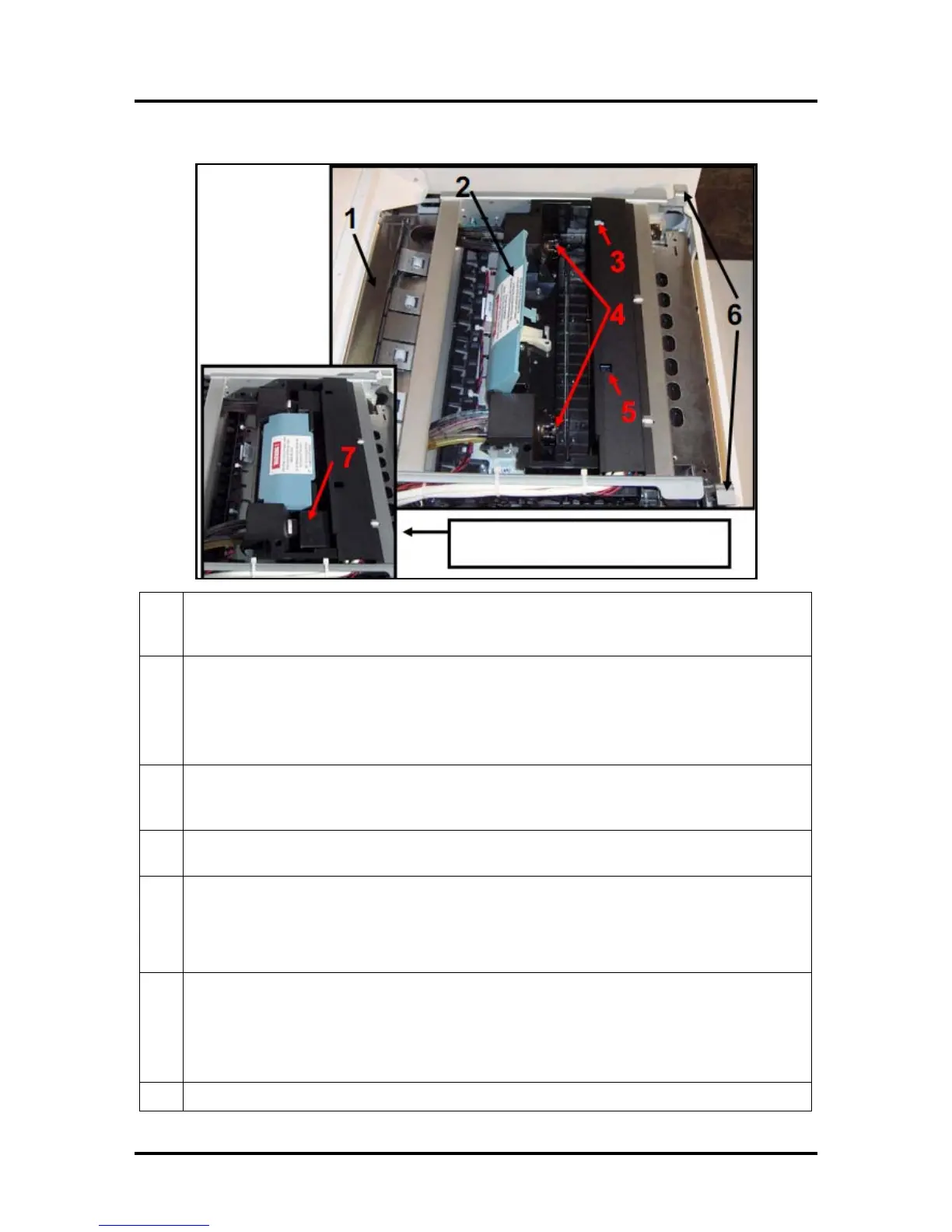

Print Engine Area
1.
Antistatic Brush AssemblyContains an antistatic brush that is used to help reduce static
energy and remove paper dust from the media. This assembly also contains pressure rollers and
fingers that help guide the paper into the print engine.
2.
Printhead LatchWhen closed; the Ink Revolver Couplings extend/connect with the Printhead
Cartridge. When opened; the Ink Revolver Couplings retract/disconnect from the Printhead
Cartridge, providing access for Printhead Cartridge installation/removal/replacement.
WARNING! Never attempt to open the Printhead Latch manually, severe damage will result. Use
the Printhead Release button function in the Toolbox utility on your PC,
3.
Print Ink Channels Button* Prints 5 bars (1 bar from each ink tank) to indicate how well the
Printhead Nozzles are working. Lightly press the button with a non-conductive tool.
*Same function can be accessed through the Printer Toolbox Diagnostics screen on your computer.
4.
Ink Revolver CouplingsConnects the ink hoses to the Printhead Cartridge. The Printhead
Latch extends and retracts the couplings from the Printhead.
5.
Printhead Latch Release Button* Initiates a Printhead Latch release cycle. If system is primed
with ink; a “System Deprimecycle will occur before the Printhead Latch is released. Lightly
press the button with a non-conductive tool.
*Similar function can be accessed through the Printer Toolbox User Interface screen on your computer. If you are
replacing the printhead; it is best to use the “Release Printhead” button from the Toolbox utility.
6.
Clamshell LatchesLift both latches at the same time to release and swing open the
“Clamshell” (top section of the Print Engine).
Do NOT open the Clamshell while the Printer is operating.
Do NOT let the Clamshell drop. Close it gently and then release the latches slowly.
Make Sure the Clamshell is closed and locked before operating.
7.
Printhead Cartridge Memjet
®
Printhead. Capable of printing an 8.5" wide full color print area.
Print Engine with printhead cartridge
installed and printhead latch closed.
