SECTION 2
INSTALLING THE PRINTER
1
1

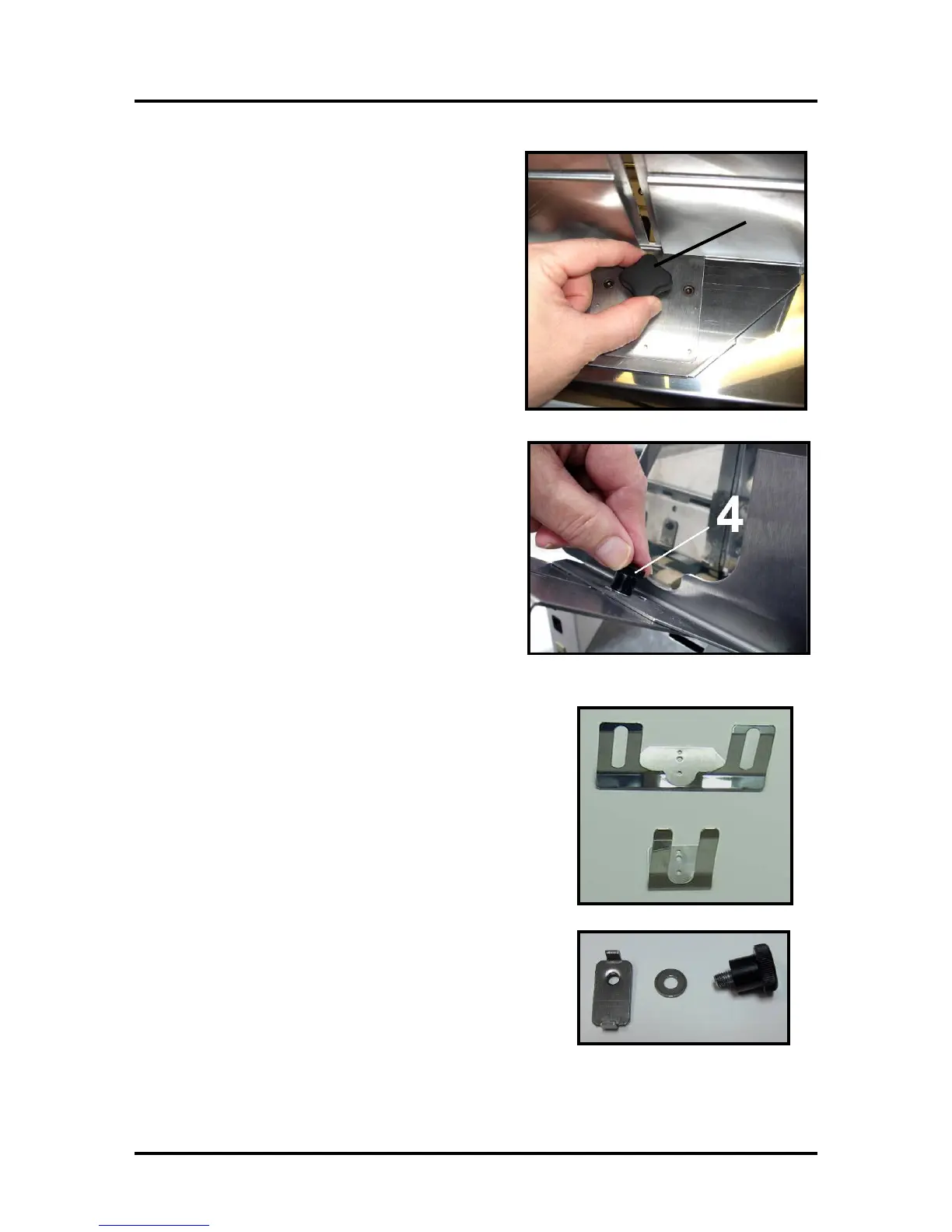

3. Attach the Rear Media Support Guide using the
Knob [3] and washer provided.
Remove the knob and washer from the printer.
Position the Rear Media Support Guide against
the frame of the printer. The two outer holes in
the guide fit over the socket head screws; as
shown.
Install the washer, then install and tighten the
Knob.
4. Install the desired Media Support Wedge using the
mounting hardware [4]; as described below.
Choose the appropriate Media Supp
ort Wedge for your application:
Wide Media Support Wedge [5]
– For media that is 8 to 9.5 inches wide
.
Narrow Media Support Wedge [6]
– For media that is 3 to 8 inches wide.
The Anchor Plate [7] fits into the slot, from the underside
of the Rear Media Support Guide. Position the Media
Support Wedge so the upper and lower holes fit onto the
two tabs from the Anchor Plate.
The washer [8] goes between the Thumb Screw [9] and
the Media Support Wedge. The Thumb Screw is inserted
down through the washer, then through the center hole in
the Media Support Wedge and into the threaded hole in
the Anchor Plate. Tighten the thumb screw to secure the
Media Support Wedge onto the Rear Media Support
Guide.
