Mapping CoS to Queues
The CoS to Queue Page contains fields for mapping CoS values to traffic queues. To map CoS
values to queues:
1. Click Switch > QoS > Mapping > CoS to Queue. The CoS to Queue Page opens:

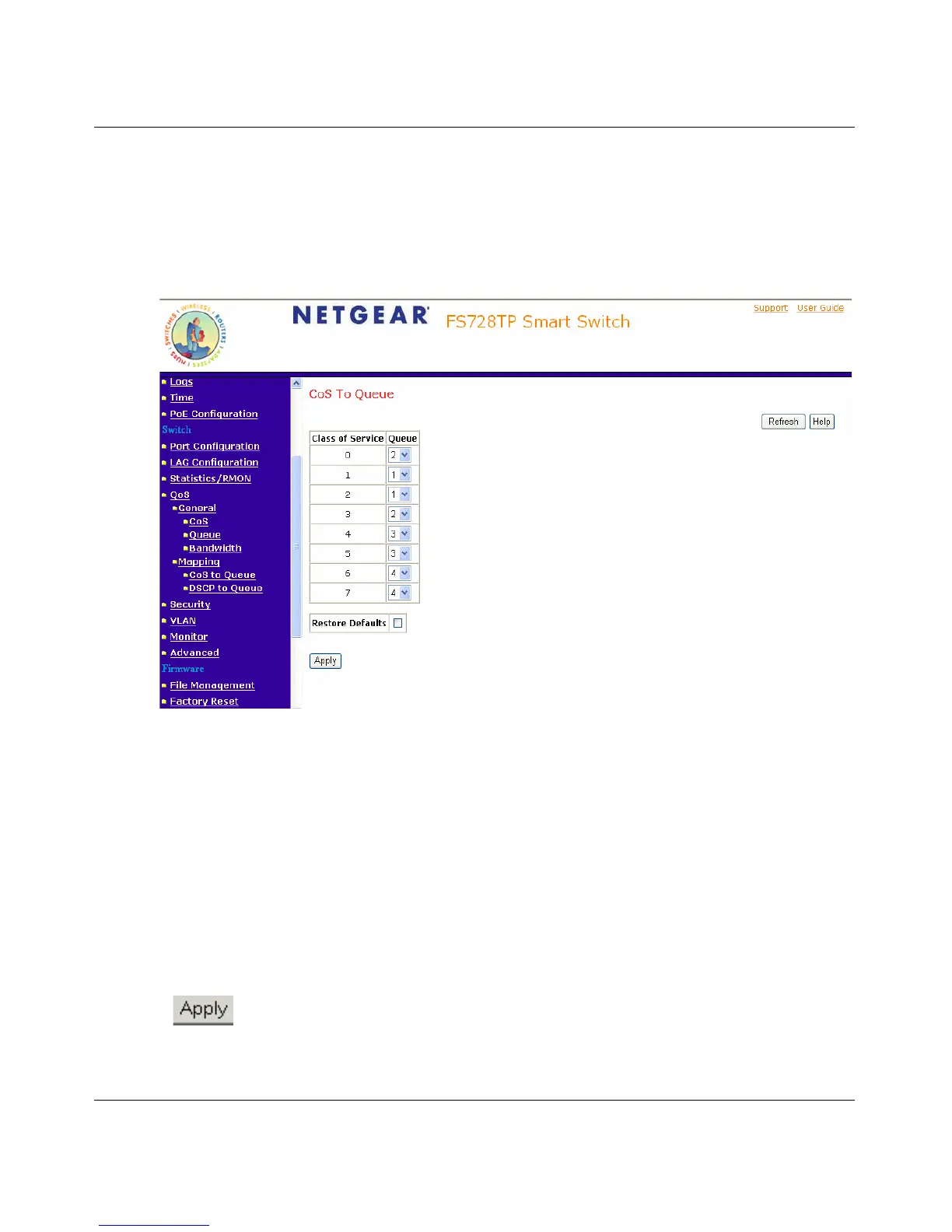

Figure 5-61
The CoS to Queue Page contains the following fields:
– Class of Service – Specifies the CoS priority tag values, where zero is the lowest and 7 is
the highest.
– Queue – Defines the traffic forwarding queue to which the CoS priority is mapped. Four
traffic priority queues are supported. The lowest priority is 1 and the highest is four.
– Restore Defaults – Restores the device factory defaults for mapping CoS values to a
forwarding queue.
2. Define the queue number in the Queue field next to the required CoS value.
3. Click . The CoS value is mapped to a queue and the device is updated.

NETGEAR ProSafe FS728TP Specifications

General

Model	FS728TP
PoE Ports	24
PoE Budget	192W
Switching Capacity	12.8 Gbps
Forwarding Rate	9.5 Mpps
MAC Address Table Size	8K
VLAN Support	Yes
QoS	Yes
Rack Mountable	Yes
Jumbo Frame Support	Yes
Power Supply	Internal
Humidity	10% to 90% non-condensing
Management	Web-based, SNMP
Dimensions	440 x 43 mm
Operating Temperature	0°C to 40°C
Weight	3.7 kg
