NETGEAR ProSafe FS728TP User Manual

FS728TP Smart Switch Software User Manual
5-129 Configuring the Device Using Your Browser
v2.0, November 2006
Configuring File Uploads
To back up files:
1. Click Firmware > File Management > File Upload. The File Upload from Switch Page
opens:

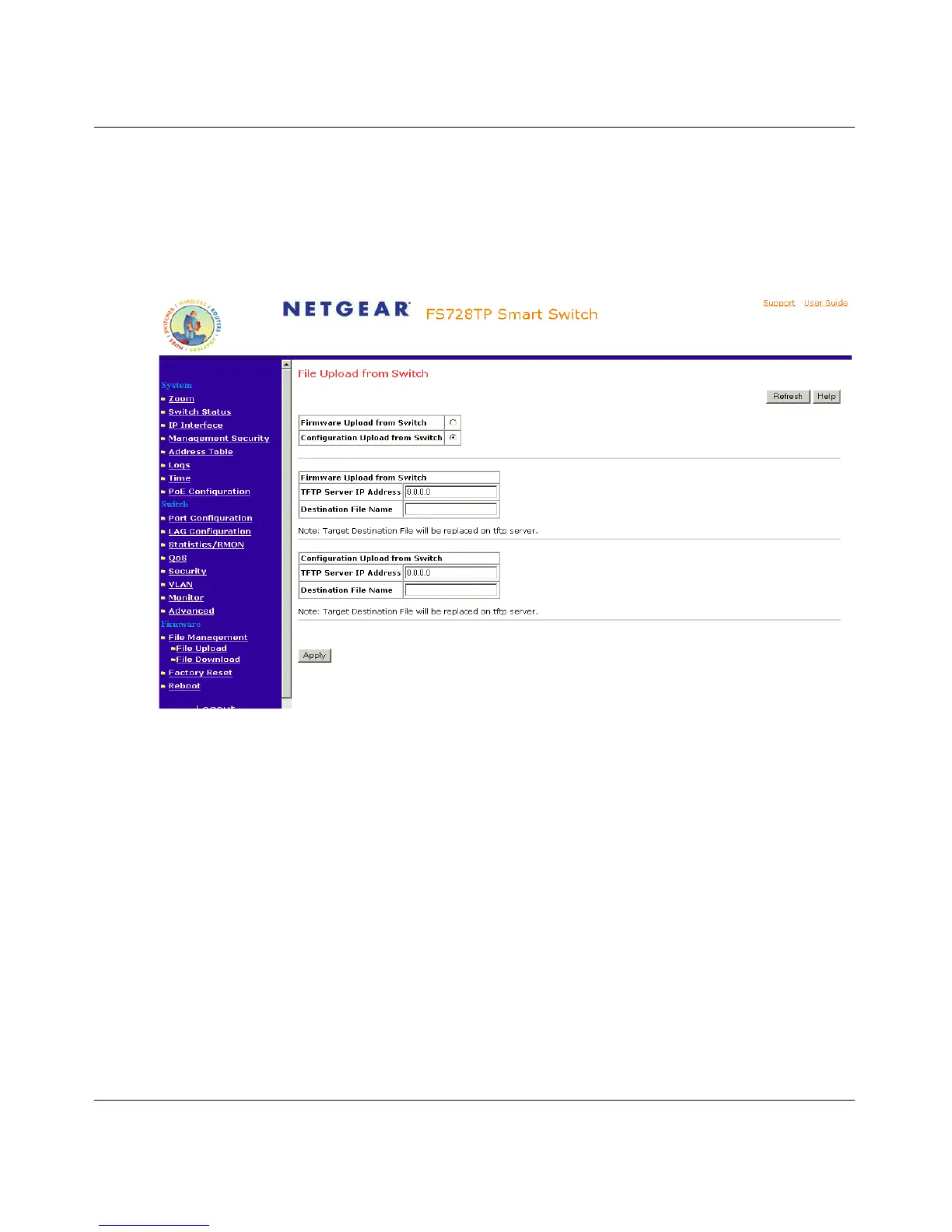

Figure 5-85
The File Upload from Switch Page contains the following fields:
– Firmware Upload from Switch
– Configuration Upload from Switch
Firmware Upload from Switch
The Firmware section contains the following fields:
– TFTP Server IP Address – Specifies the TFTP Server IP Address to which the firmware
upload file is uploaded.
– Destination File Name – Specifies the destination file name to be uploaded.
Configuration Upload from Switch
The Configuration Upload from Switch section contains the following fields:

NETGEAR ProSafe FS728TP Specifications

General

Model	FS728TP
PoE Ports	24
PoE Budget	192W
Switching Capacity	12.8 Gbps
Forwarding Rate	9.5 Mpps
MAC Address Table Size	8K
VLAN Support	Yes
QoS	Yes
Rack Mountable	Yes
Jumbo Frame Support	Yes
Power Supply	Internal
Humidity	10% to 90% non-condensing
Management	Web-based, SNMP
Dimensions	440 x 43 mm
Operating Temperature	0°C to 40°C
Weight	3.7 kg
