Defining RMON Alarms
The RMON Alarms Page contains fields for setting network alarms. Network alarms occur when a
network problem or event, is detected. Rising and falling thresholds generate events.
To set RMON alarms:

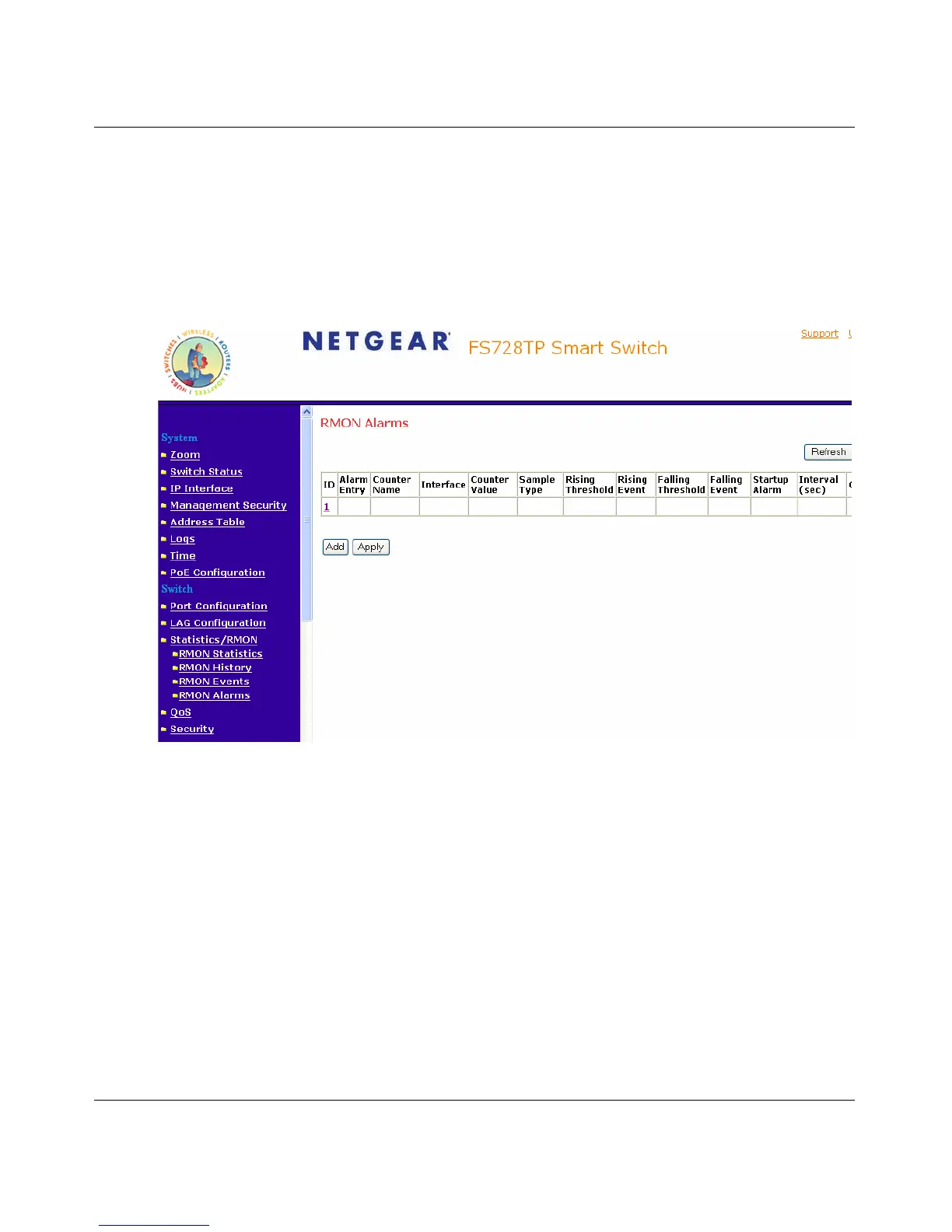

1. Click Switch > Statistics/RMON > RMON Alarms. The RMON Alarms Page opens:
Figure 5-99
The RMON Alarms Page contains the following fields:
– ID – Indicates the RMON Alarms table entry.
– Alarm Entry – Indicates a specific alarm.
– Counter Name – Displays the selected MIB variable.
– Interface – Displays interface for which RMON statistics are displayed. The possible
field values are:
– Port – Displays the RMON statistics for the selected port.
– LAG – Displays the RMON statistics for the selected LAG.
– Counter Value – Displays the selected MIB variable value.
