NETGEAR ProSafe FS728TP User Manual

FS728TP Smart Switch Software User Manual
Configuring the Device Using Your Browser 5-118
v2.0, November 2006
– Filter Type – Indicates whether to send traps or informs relating to the selected OID.
– Excluded – Does not send traps or informs.
– Included – Sends traps or informs.
– Delete – The possible field values are:
– Checked – Deletes the selected filter.
– Unchecked – Maintains the list of filters.

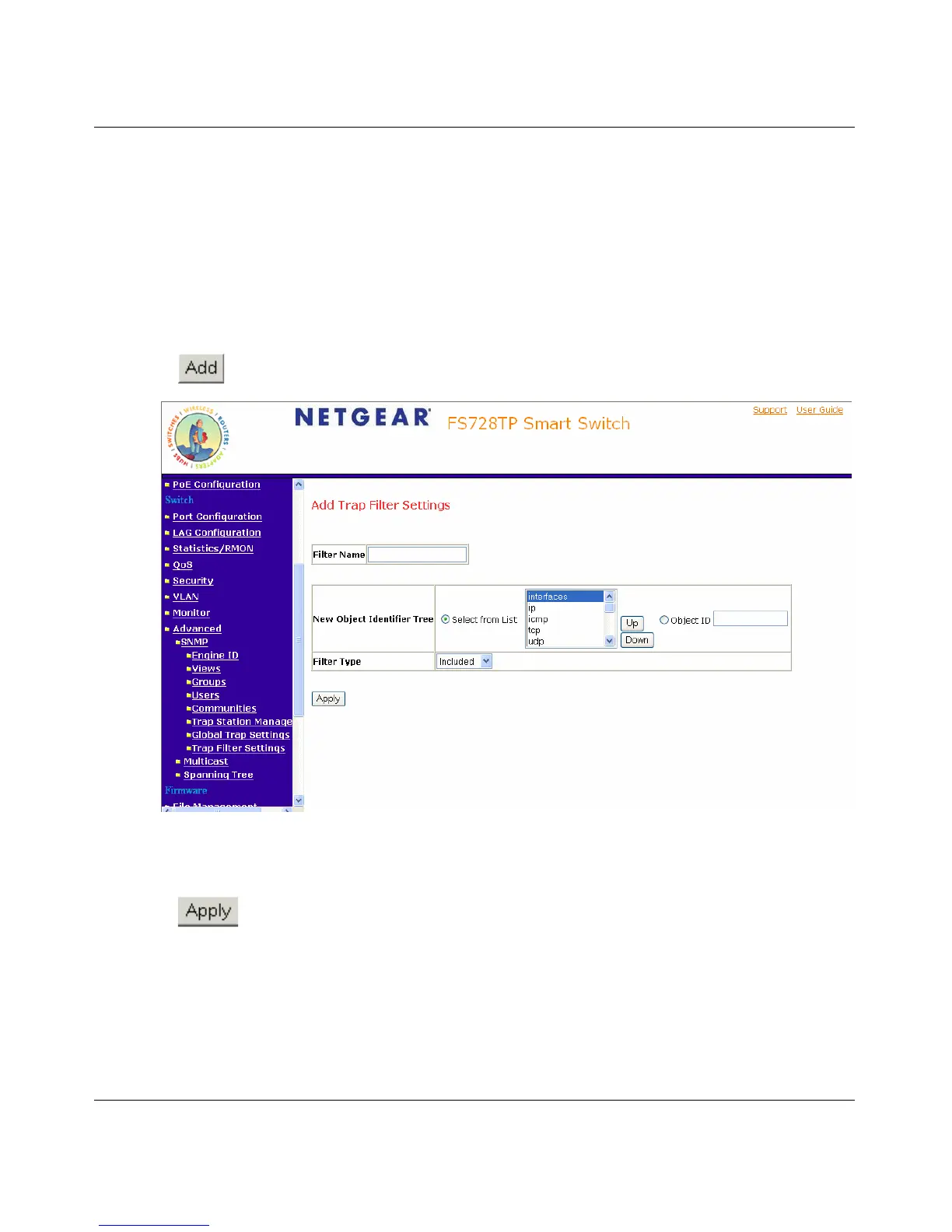

2. Click . The Add Trap Filter Settings Page opens:
Figure 5-79
3. Define the Filter Name, New Object Identifier Tree, and Filter Type fields.
4. Click . The SNMP Trap filter is defined and the device is updated.

NETGEAR ProSafe FS728TP Specifications

General

Model	FS728TP
PoE Ports	24
PoE Budget	192W
Switching Capacity	12.8 Gbps
Forwarding Rate	9.5 Mpps
MAC Address Table Size	8K
VLAN Support	Yes
QoS	Yes
Rack Mountable	Yes
Jumbo Frame Support	Yes
Power Supply	Internal
Humidity	10% to 90% non-condensing
Management	Web-based, SNMP
Dimensions	440 x 43 mm
Operating Temperature	0°C to 40°C
Weight	3.7 kg
