The Define ACLs Page contains the following fields:
– ACL Name – Displays the user-defined MAC based ACLs.
– Remove ACL – Removes the ACLs. The possible field values are:
– Checked – Removes the selected MAC based ACL.
– Unchecked – Maintains the MAC based ACLs.
– ID – Matches the packet’s VLAN ID to the ACE. The possible field values are 1 to 4095.
– Priority – Indicates the ACE priority, which determines which ACE is matched to a
packet on a first-match basis. The possible field values are 1-2147483647.
– Source Address
– MAC Address – Matches the source MAC address to which packets are addressed to
the ACE.

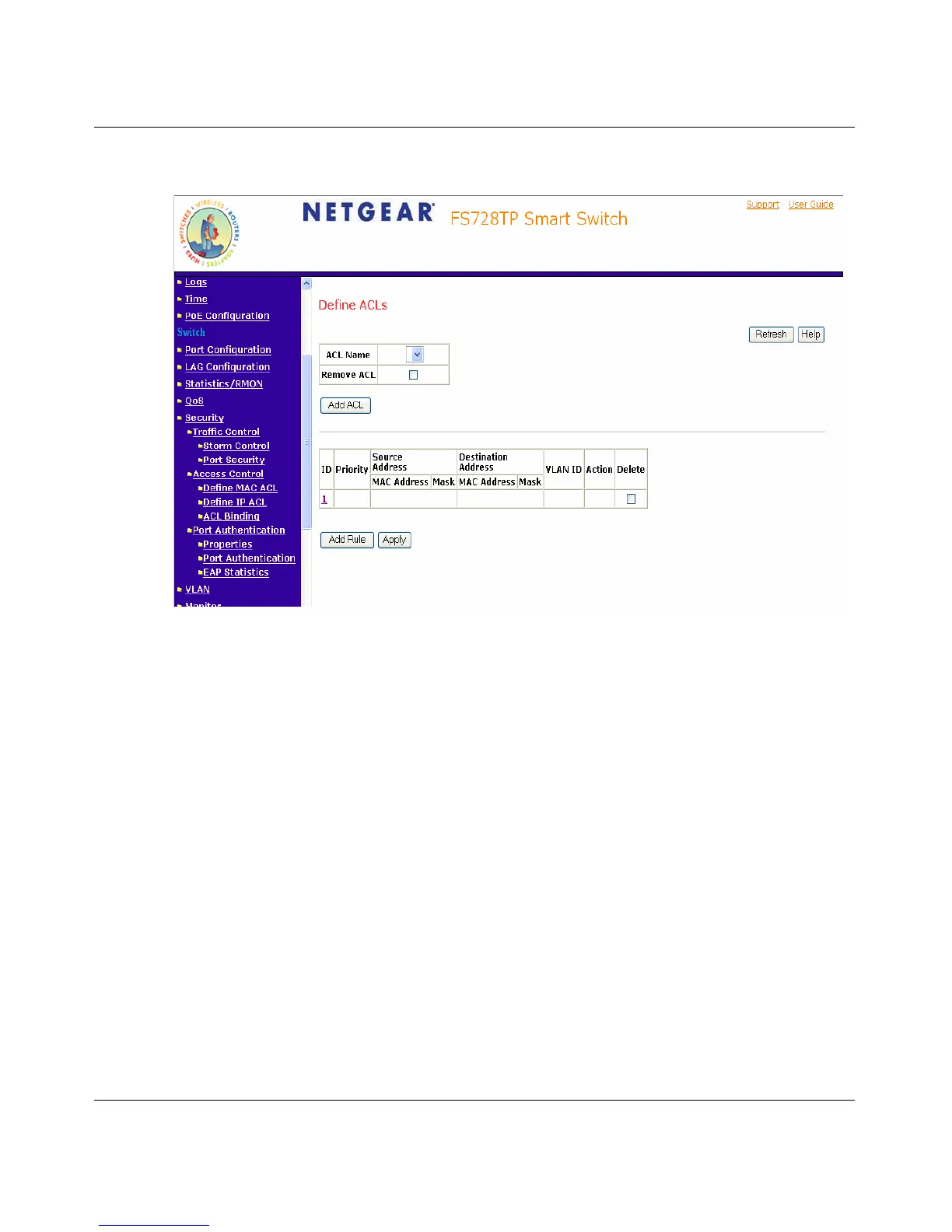

Figure 5-23
