FS728TP Smart Switch Software User Manual
Configuring the Device Using Your Browser 5-62
v2.0, November 2006

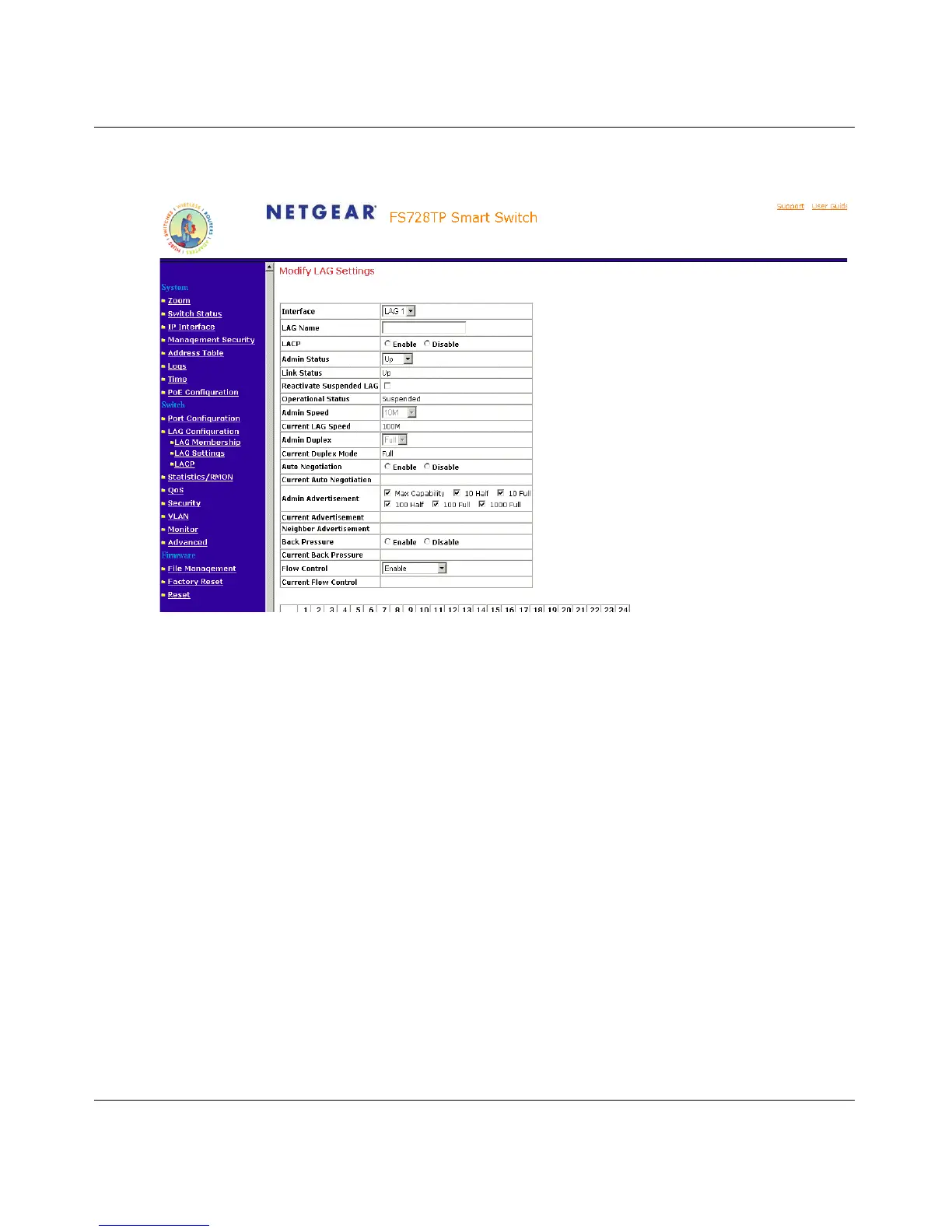

2. Click a LAG. The Modify LAG Settings Page opens:
Figure 5-42
In addition to the fields in the LAG Settings Page, the Modify LAG Settings Page contains the
following additional fields:
– LAG Name – Displays the user-defined LAG name.
– LACP – Enables LACP on the LAG. The possible field values are:
– Selected – LACP is enabled on the LAG.
– Unselected – LACP is disabled on the LAG. This is the default value.
– Admin Status – Indicates whether the port is currently operational or non-operational.
The possible field values are:
– Up – Indicates the port is currently operating.
– Down – Indicates the port is currently not operating.
– Reactivate Suspended LAG – Reactivates a LAG if the port has been disabled through
the locked LAG security option.
