NETGEAR WNDAP360 User Manual

Advanced Configuration
87
ProSafe Dual Band Wireless-N Access Point WNDAP360
When you configure the EDCA settings, the wireless access point can leverage existing
information in the IP packet header that is related to the Type of Service (ToS). The wireless
access point examines the ToS field in the headers of all packets that it processes. Based on
the value in a packet’s ToS field, the wireless access point prioritizes the packet for
transmission by assigning it to one of the queues. A different type of data is associated with
each queue. You can configure how the wireless access point treats each queue.
The queues defined for different types of data transmitted from AP-to-station and
st
ation-to-AP are:
• Dat
a 0 (Best Effort). Medium priority queue, medium throughput and delay. Most
traditional IP data is sent to this queue.
• Dat
a 1 (Background). Lowest priority queue, high throughput. Bulk data that requires
maximum throughput and is not time-sensitive is sent to this queue (FTP data, for
example).
• Dat
a 2 (Video). Highest priority queue, minimum delay. Time-sensitive video data is
automatically sent to this queue.
• Dat
a 3 (Voice). Highest priority queue, minimum delay. Time-sensitive data such as VoIP
and streaming media are automatically sent to this queue.
 To configure advanced QoS:

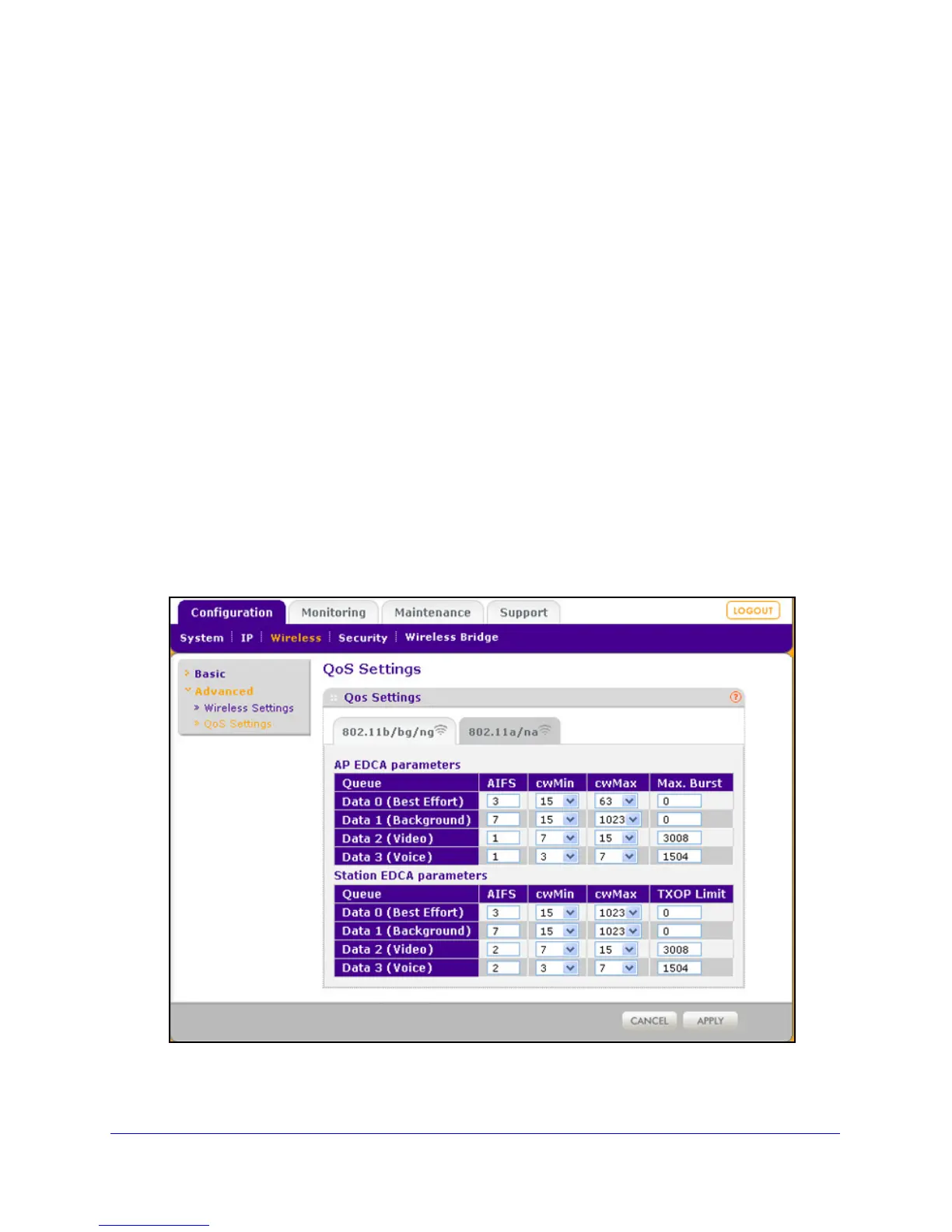

1. Select Con
figuration > Wireless > Advanced > QoS Settings. The advanced QoS
Settings screen displays:
Figure 52.
2. Optionally: To configure advanced QoS for the 802.11a/na modes, click the 802.11a/na tab.

NETGEAR WNDAP360 Specifications

General

VLAN support	Yes
Frequency band	2.4 - 5 GHz
Number of users	50 user(s)
Cabling technology	10/100/1000BASE-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Antenna connector type	SMA
Antenna gain level (max)	5 dBi
Weight (imperial)	1.93 lbs
Networking features	Gigabit Ethernet
Compliance industry standards	IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE802.1x
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, EAP, EAP-TLS, EAP-TTLS, PEAP, SSH, SSL/TLS, TTLS, WEP, WPA, WPA2
Power requirements	12 VDC, 1A
Power consumption (typical)	10.51 W
Minimum system requirements	Internet Explorer 6.0, Mozilla Firefox 1.5
Compatible operating systems	- Windows Vista, XP, 2000, 98, Me - Mac OS - UNIX - Linux
Internal	No
LED indicators	LAN
Cable lock slot type	Kensington

Weight and Dimensions

Height	54.76 mm
Weight	878 g
Dimensions (WxDxH)	253.75 x 253.76 x 54.76 mm
