Neural DSP Quad Cortex - FRFR;Direct

56
Setup Examples
FRFR/Direct
This type of setup is common for live applications, without needing
to disable any device on the signal chain due to using a flat
response system. You can use the same I/O setup to connect to an
audio interface.

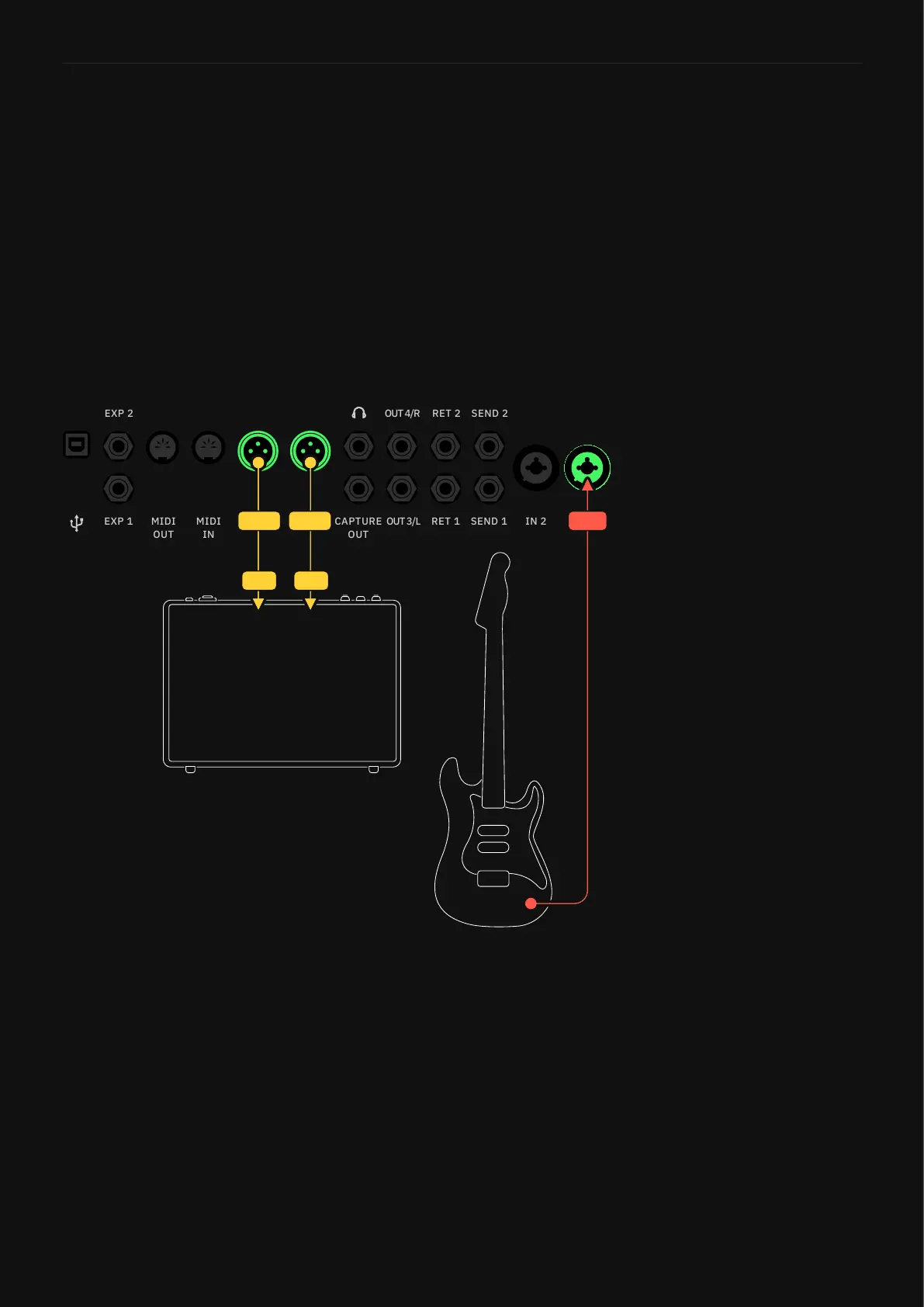

I/O Setup #1
1. Connect your instrument to Input 1.
1. Connect OUT1/L (and OUT2/R if stereo) to an FRFR system or
an audio interface using XLR cables.
