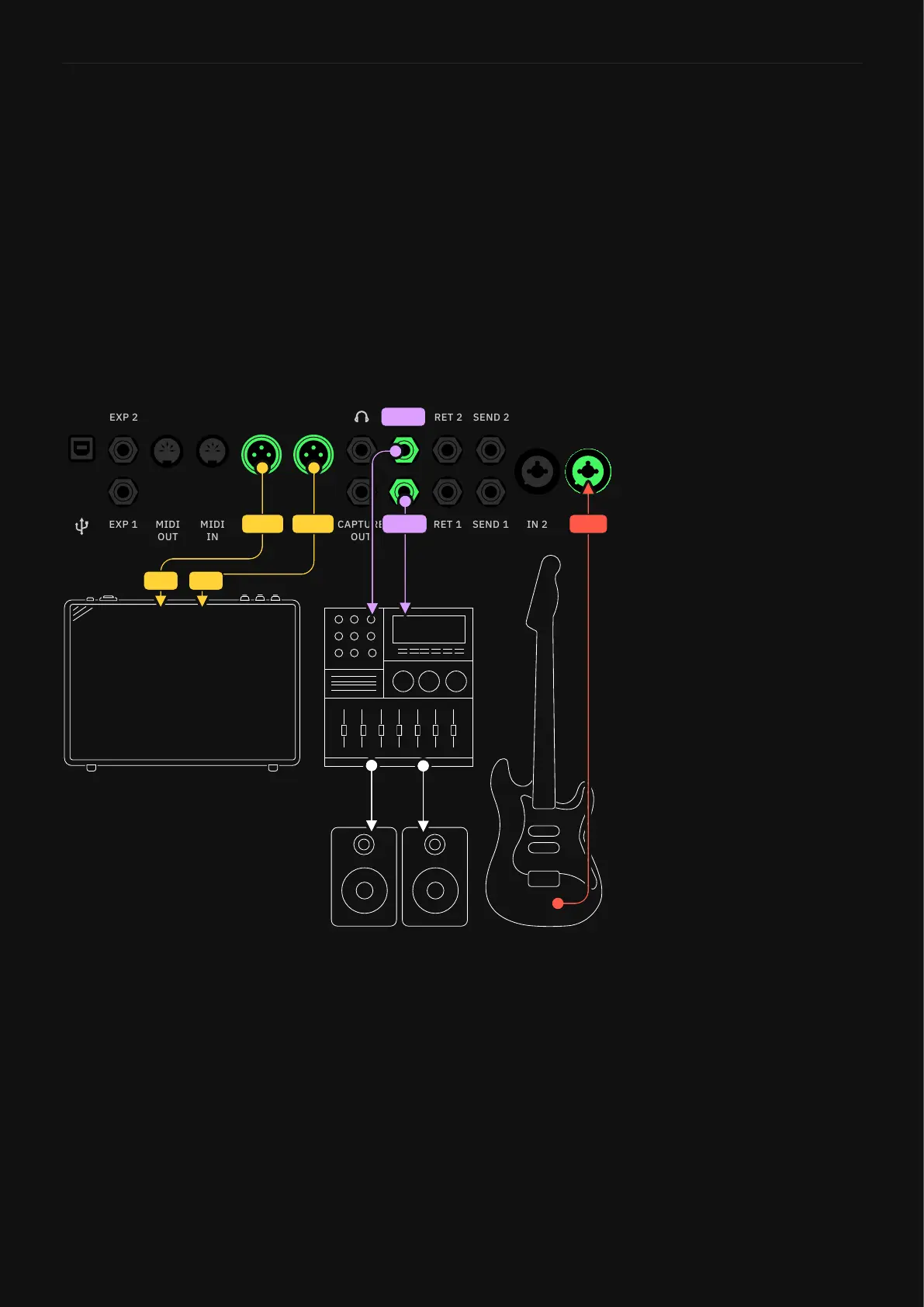

FRFR Monitor + FRFR to Front-of-House
This method is used to send a “copy” of the stereo signal to a
mixing console or another monitoring system.
1. Connect your instrument to Input 1.
2. Connect OUT1/L and OUT2/R to an FRFR system.
3. Use The Grid to patch your signal chain to use Outputs 3 and 4
using an A/B Splitter.
4. Connect OUT3/L and OUT4/R to a mixing console or another
monitoring system.
Using an A/B Splitter allows you
to send a custom amount of
signal to each external device.
Why use an A/B Splitter?
