Neural DSP Quad Cortex - As FX Processor (pre only)

67
Setup Examples
3
Out
1
In
PRESET
A
A1 PreFX Preset
Preset Grid

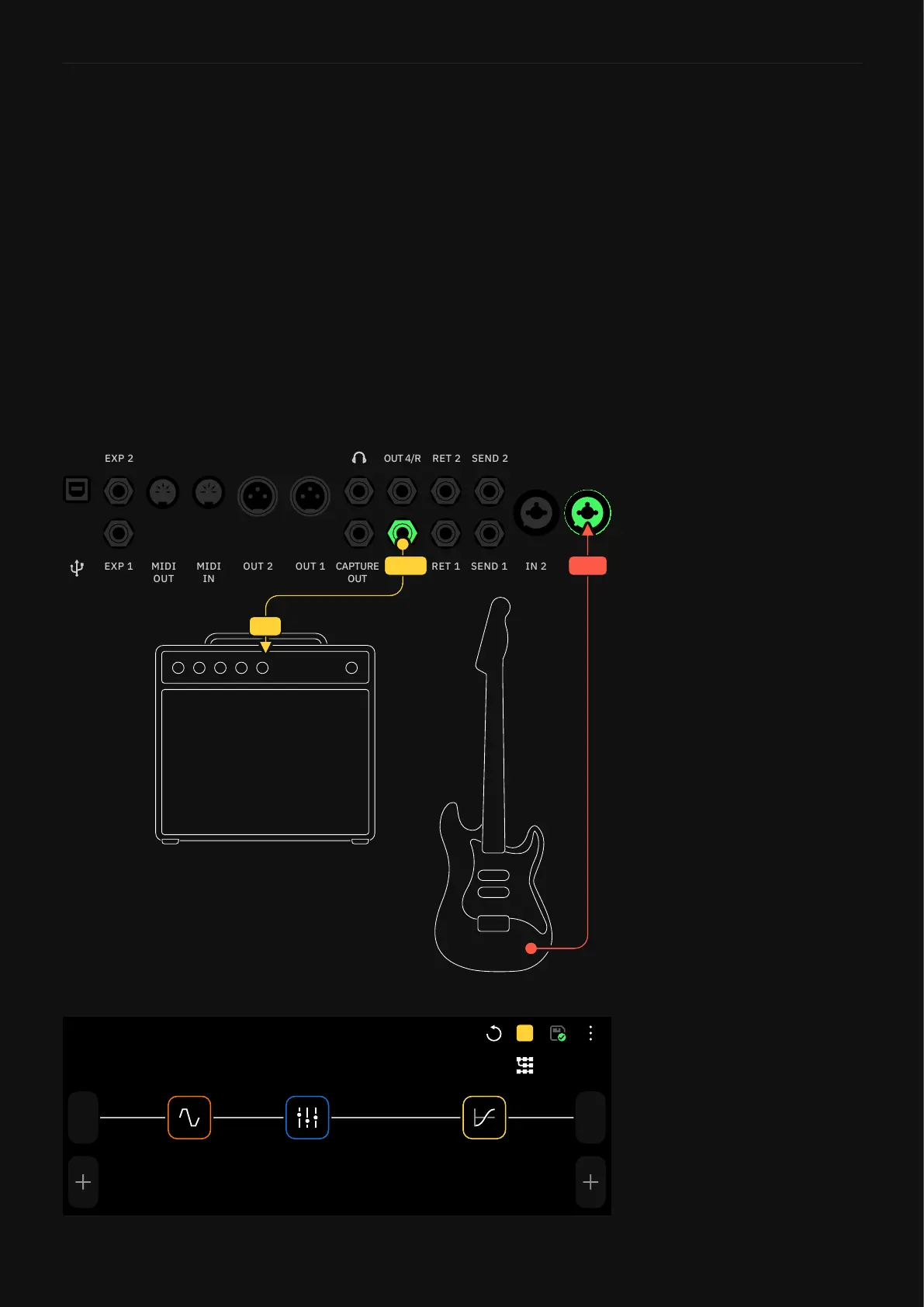

As FX Processor (pre only)
Similar to the previous method, you can use the Quad Cortex
purely for pre effects, such as EQs, overdrives, noise gates, and
pitch shift effects. Grid rows built for this purpose will contain only
pre effects blocks.
1. Connect your instrument to Input 1 on the Quad Cortex.
2. Place all the pre effects blocks you want on the rst row of The
Grid, and set the output to OUT3/L.
3. Connect the OUT3/L on the Quad Cortex to the input of your
amplier.
I/O Setup
EXP 2
EXP 1
IN 2
IN 1
OUT 4/R
OUT 1
OUT 2
MIDI
IN
MIDI
OUT
SEND 2
SEND 1
RET 2
RET 1
CAPTURE
OUT
IN 1
IN
OUT 3/L
