Neural DSP Quad Cortex - Using external gear (FX loop)

68
Setup Examples
1/2
Out
1
In
PRESET
A
A1 External gear
Preset Grid
Using external gear (FX loop)
The Effects Loop device block allows you to insert external effects
into your signal chain on The Grid.

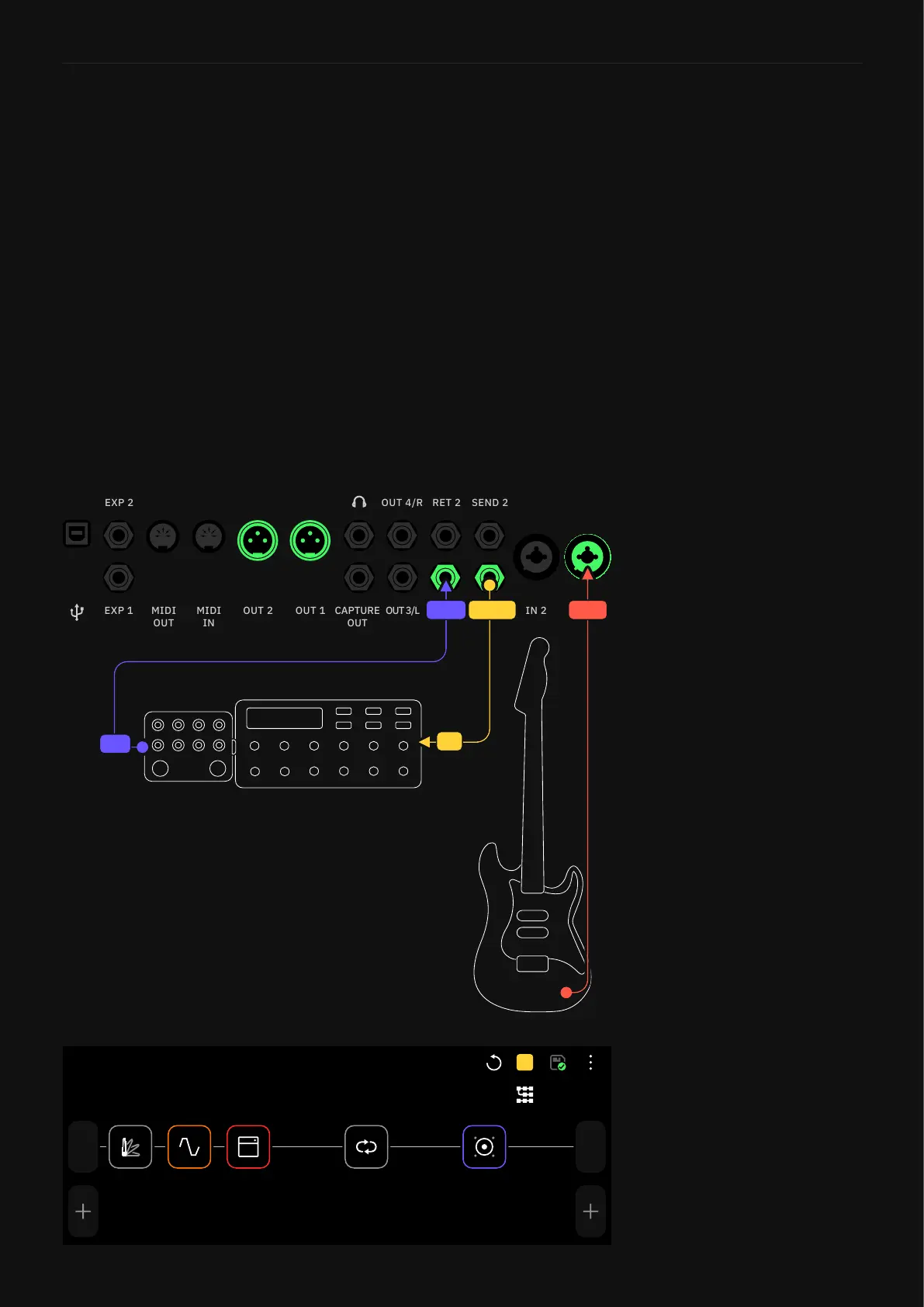

1. Connect your instrument to Input 1.
2. Build your signal chain on The Grid, then add an FX Loop
device block (set to FX Loop 1) where you want to insert the
external effects. Make sure the Mix parameter is set to 100%.
3. Connect a cable from Send 1 on the Quad Cortex to the
external effects.
4. From the output of the external effects, connect a cable to
Return 1 on the Quad Cortex.
I/O Setup
EXP 2
EXP 1
IN 2
IN 1
OUT 4/R
OUT 3/L
OUT 1
OUT 2
MIDI
IN
MIDI
OUT
SEND 2
SEND 1
RET 2
RET 1
CAPTURE
OUT
IN 1RET 1
IN
OUT
SEND 1
