Neural DSP Quad Cortex - As FX Loop Only

66
Setup Examples
As FX Loop Only
The post effects included on Quad Cortex, like reverbs and delays,
can be used independently through the FX loop of an external
amplier. For this purpose, your Presets will only contain one row
of post effects blocks.
1. Connect your instrument to the input of your amplier.
2. Connect an instrument cable from the Send of the FX Loop of
the amplier to Input 1 on Quad Cortex.
3. On The Grid, add all the post effects you want to the rst row
and set the output to OUT3/L.
4. Connect the OUT3/L on the Quad Cortex to the Return of the
amp’s FX Loop.

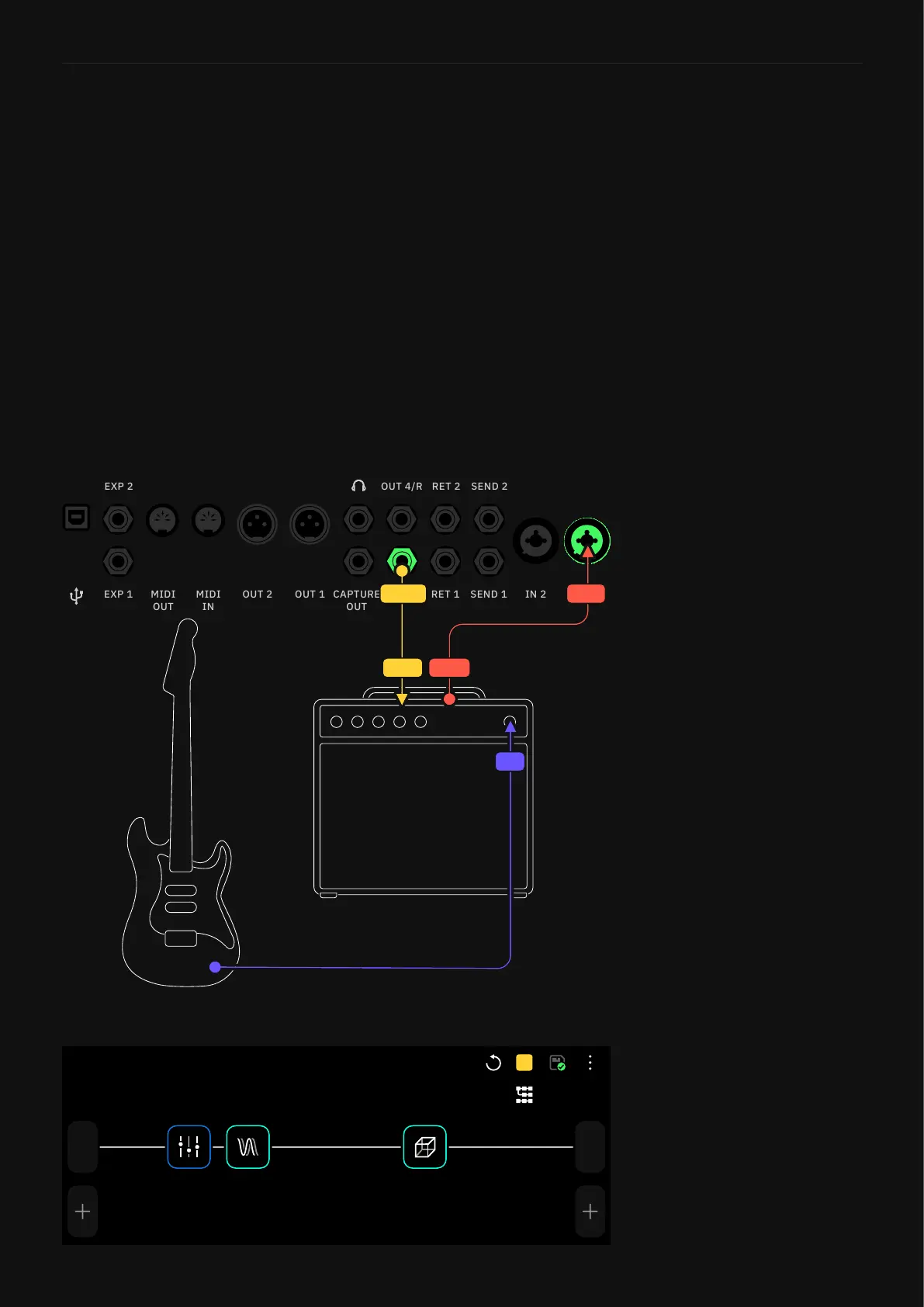

I/O Setup
EXP 2
EXP 1
IN 2
IN 1
OUT 4/R
OUT 3
OUT 1
OUT 2
MIDI
IN
MIDI
OUT
SEND 2
SEND 1
RET 2
RET 1
CAPTURE
OUT
IN 1
SEND
OUT 3/L
RET
IN
3
Out
1
In
PRESET
A
A1 FX Loop Preset
Preset Grid
