Neural DSP Quad Cortex - Page 63

63
Setup Examples
I/O Setup
EXP 2
EXP 1
IN 2
IN 1
OUT 4/R
OUT 3
OUT 1
OUT 2
MIDI
IN
MIDI
OUT
SEND 2
SEND 1
RET 2
RET 1
CAPTURE
OUT
IN 1SEND 1
IN
OUT 3/L
RET
RET 1
SEND
3
Out
1
In

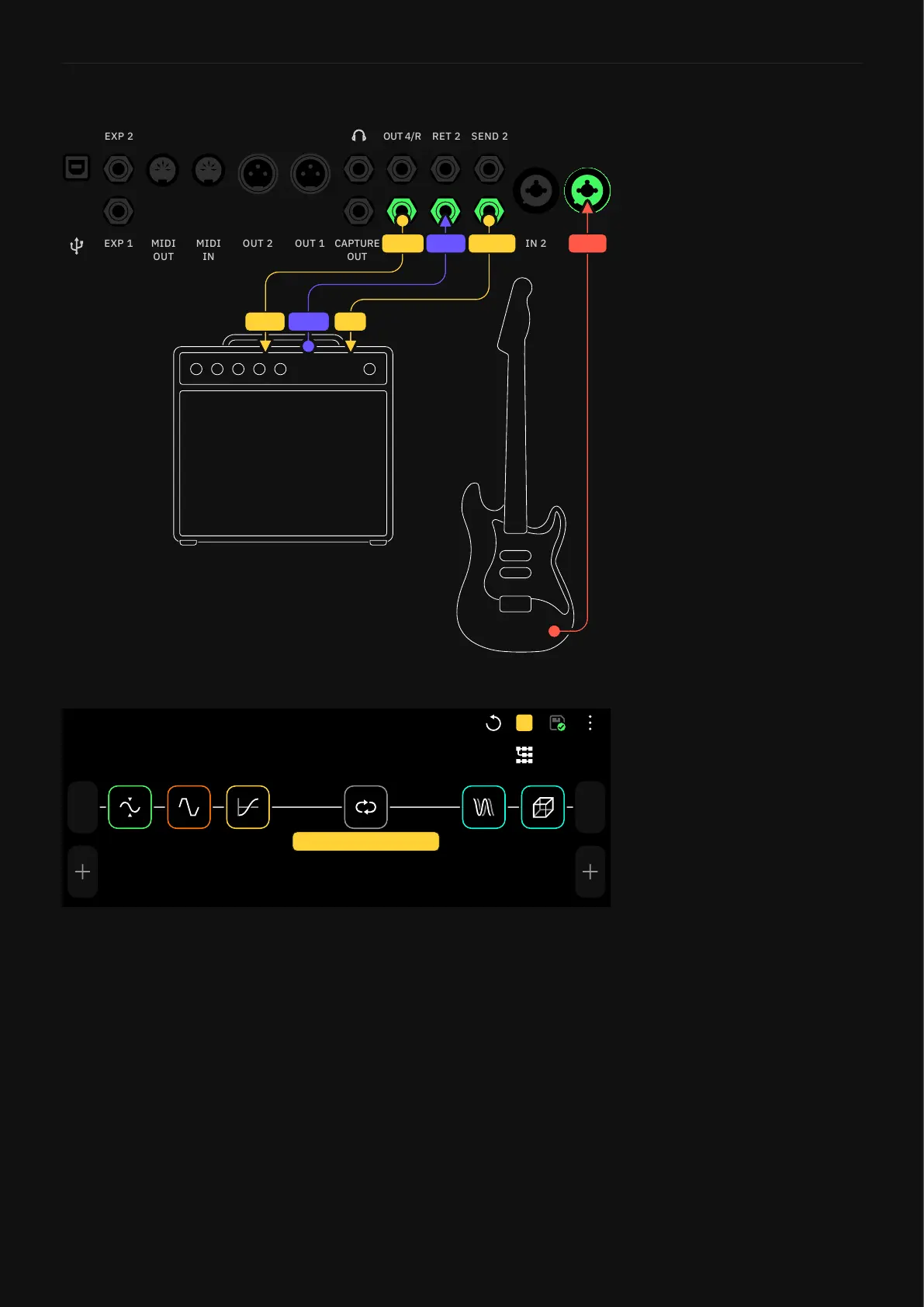

FX Loop 1 (Send 1 + Return 1)
PRESET
A
A1 4CMv2 Preset
Preset Grid #1
There are many FX Loop
devices. FX Loop 1 takes the
signal from the row where it’s
placed and returns it by using
SEND 1 and RETURN 1.
If you want to use SEND 2 and
RETURN 2 for conneccting your
external devices, choose FX
LOOP 2.
Why FX Loop 1?
