Max hot water temperature
Max HW temp Knob position
50 A
55 B
65 C*
70 D
75 E
80 F
Setting hot water temperature

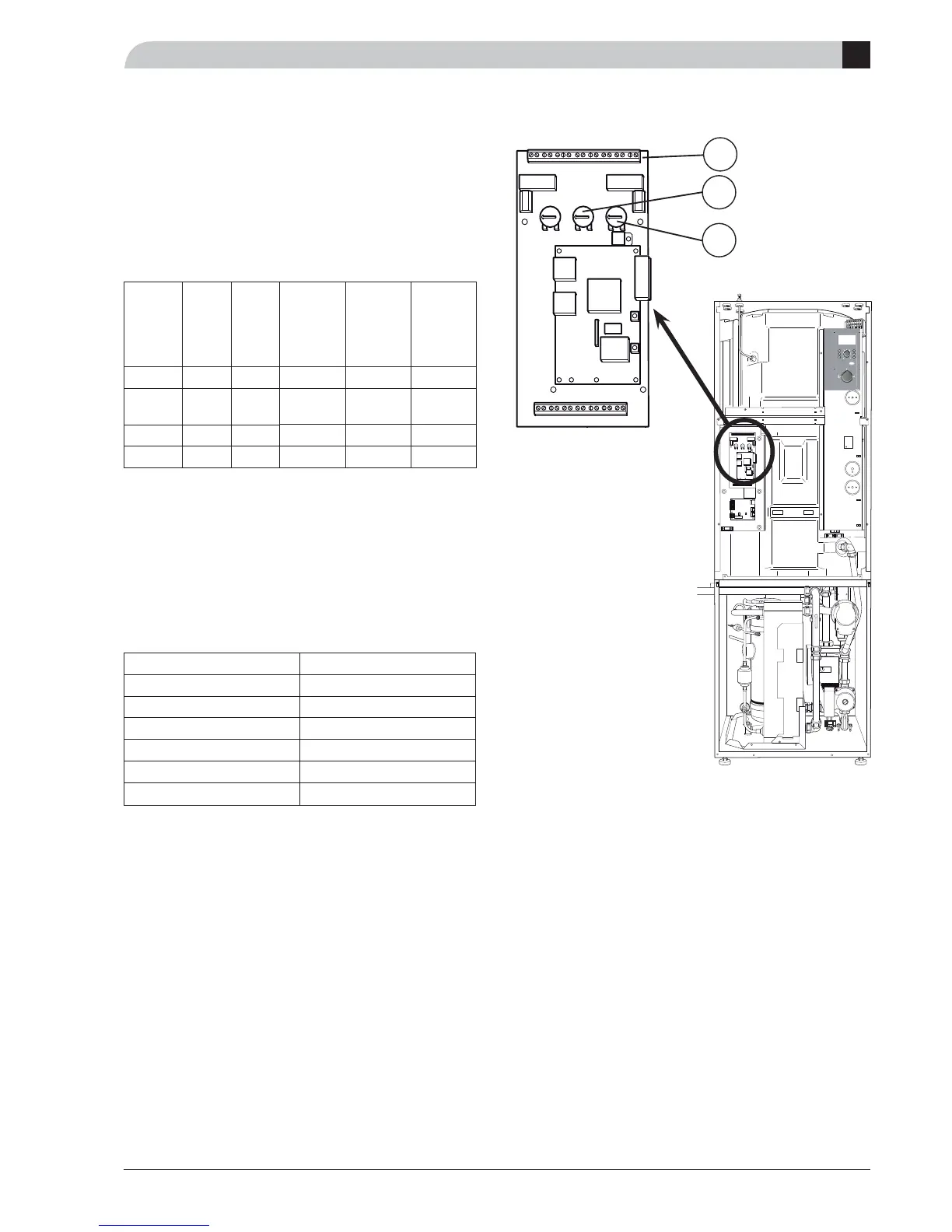

The maximum hot water temperature is set using the knob
(102) on the load monitor card (2).
The setting can be checked in the menu 9.2.1.
Phase currents
Max
Elec-
trical
addition
(kW)
Elec-
trical
step
Knob
posi-
tion
Phase
current
L1 (A)
Phase
current
L2 (A)
Phase
current
L3 (A)
0 0 A 14,8 12 12
2 1 B 14,8
(2,8)
16,3
(4,3)
16,3
(4,3)
6 2 C (11,5) (8,7) (8,7)
8 3 D* (11,5) (13) (13)
Setting electrical addition
The setting of the maximum output on the electrical addi-
tion is done using the knob (101) on the load monitor card
(2).
The setting can be checked in menu 8.3.5.
A maximum of one electrical step is permitted during com-
pressor operation.
B
Electrical connections
* Factory setting
Currents within brackets apply to operating mode ”Only ad-
ditional heat”
102
2
101
