Connecting the outside sensor
Install the outside temperature sensor in the shade on a
wall facing north or north-west, so it is unaffected by the
morning sun. The sensor is connected to terminals X1:1
and X1:2 on the load monitor card (2). Use a two-core ca-
ble of at least 0.5 mm.
2
.
.
If the outside sensor cable runs close to power cables,
shielded cable must be used.
If a conduit is used it must be sealed to prevent condensa-
tion in the sensor capsule.
X2
2
X1
Outside sensor
Alarm output,
Buzzer alarm
B
Electrical connections
Alarm/alarm outputs
External indication of external buzzer alarms is possible
through the relay function on the load monitor card (2),
terminals X2:1–3.
The picture shows the relay in the alarm position.
When switch (8) is in the 0 or “ ” position the relay is
in the alarm position.

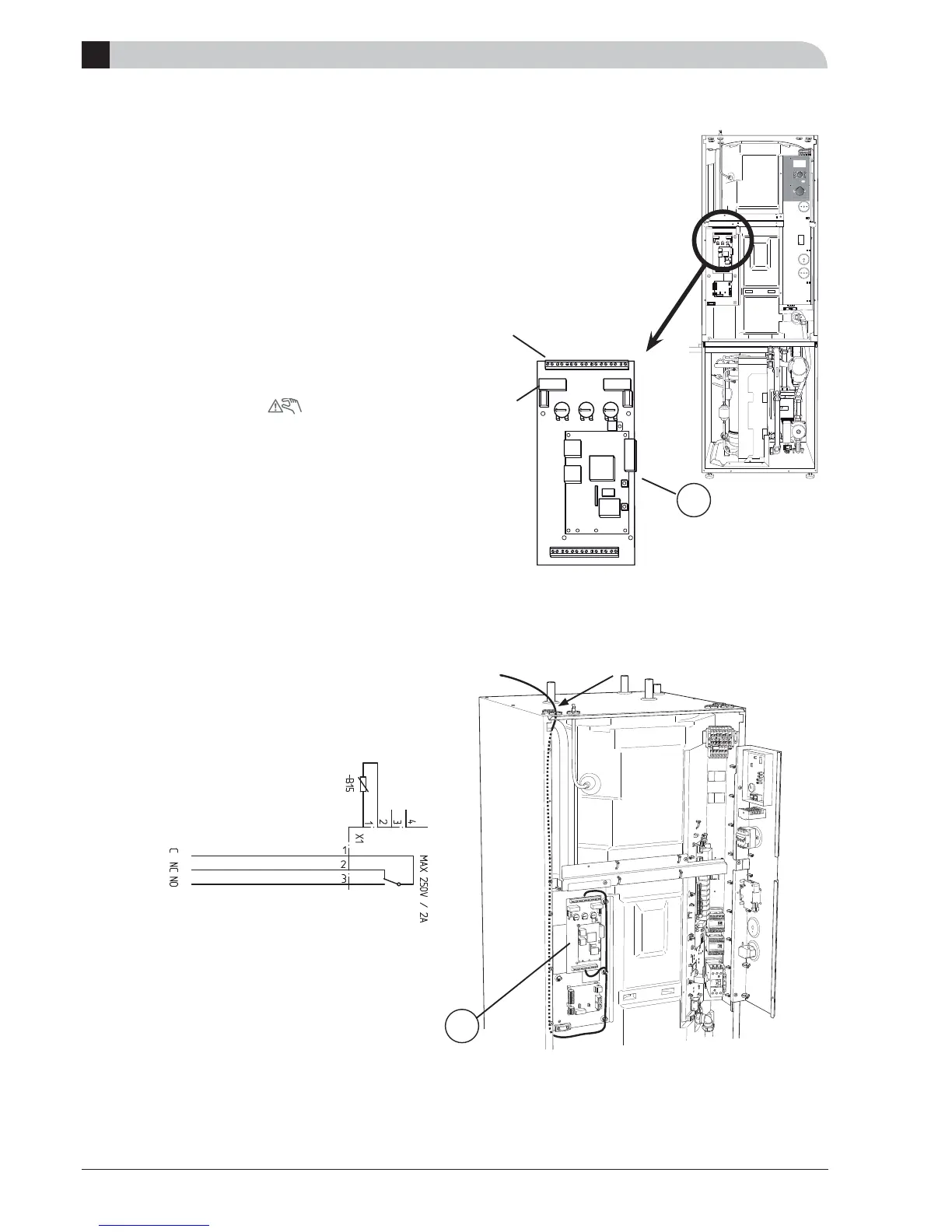

Cable routing for outdoor sensors and alarms
2
