Nikon D5 User Manual

127
S

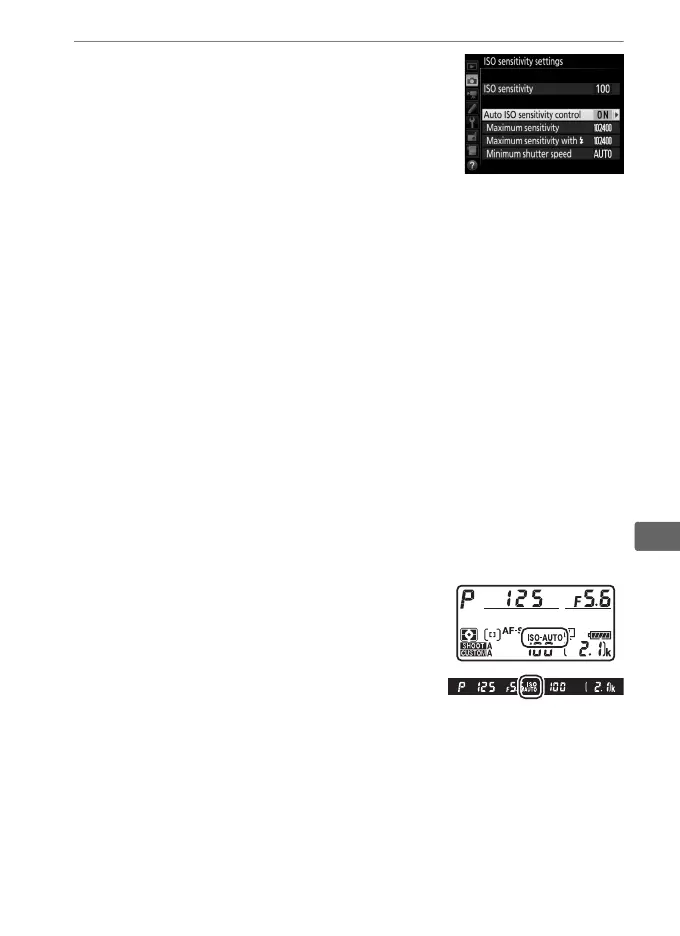

3 Adjust settings.
The maximum value for auto ISO
sensitivity can be selected using
Maximum sensitivity (the minimum
value for auto ISO sensitivity is
automatically set to ISO 100; note that if
the ISO sensitivity selected by the user is higher than that
chosen for Maximum sensitivity, the value selected by the
user will be used instead).
In exposure modes P and A,
sensitivity will only be adjusted if underexposure would result
at the shutter speed selected for Minimum shutter speed
(
1
/4000–30 s, or Auto; in modes S and M, ISO sensitivity will be
adjusted for optimal exposure at the shutter speed selected by
the user).
If Auto is selected, the camera will choose the
minimum shutter speed based on the focal length of the lens.
Press J to exit when settings are complete.
To choose the maximum ISO sensitivity for photos taken using
an optional flash unit (0 418), use Maximum sensitivity with
M.
Selecting Same as without flash sets the maximum ISO
sensitivity for flash photography to the value currently
selected for Maximum sensitivity.
When On is selected, the viewfinder and
top control panel show ISO-AUTO.
When
sensitivity is altered from the value selected
by the user, these indicators flash and the
altered value is shown in the viewfinder
and top control panel.

Nikon D5 Specifications

General

Megapixel	20.8 MP
Camera type	SLR Camera Body
Sensor type	CMOS
Image stabilizer	No
Total megapixels	21.33 MP
Image sensor size	- \
Image formats supported	RAW
Maximum image resolution	5568 x 3712 pixels
Image sensor size (W x H)	35.6 x 23.9 mm
Still image resolution(s)	5568 x 3712, 4176 x 2784, 2784 x 1856, 4640 x 3088, 3472 x 2312, 2320 x 1544, 3648 x 2432, 2736 x 1824, 1824 x 1216, 4640 x 3712, 3472 x 2784, 2320 x 1856
Optical zoom	- x
Focal length range	- mm
Minimum aperture number	-
Focus	TTL
Focus adjustment	Auto/Manual
Light exposure correction	±5EV (1/2; 1/3 EV step)
Camera shutter type	Mechanical
Fastest camera shutter speed	- s
Flash sync-speed	1/250 s
Flash range (wide)	- m
Video recording	Yes
Video resolutions	1280 x 720, 1920 x 1080, 3840 x 2160 pixels
Maximum video resolution	3840 x 2160 pixels
Audio system	stereo
Memory slots	2
Internal memory	- MB
Compatible memory cards	CF, XQD
Display diagonal	3.2 \
Display resolution (numeric)	2359000 pixels
Viewfinder type	Optical
USB version	3.2 Gen 1 (3.1 Gen 1)
USB connector	Micro-USB B
Headphone outputs	1
White balance	Auto, Cloudy, Direct sunlight, Flash, Fluorescent, Incandescent, Manual, Shade
Self-timer delay	2, 3, 5, 10, 20 s
Power source type	Battery
Product color	Black
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	92 mm
Width	160 mm
Height	158.5 mm
Weight	1240 g
Weight (including battery)	1415 g
