Appendix E, Multi-Needle Setup and Use (continued)
To Use the Multi Needle Command in a Program
PREREQUISITES
 The system is properly set up. Refer to “Setting Up and Calibrating the System (Required)” on page47.
 The additional dispensers are installed and set up and the Multi Needle capability is enabled. Refer to “To Enable
Multi-Needles Dispensing” on page148 and to “To Set the Camera-to-Tip Offsets for Multiple Dispensers” on
page148.
 A test workpiece is positioned on the fixture plate or work surface.
NOTE: This procedure explains the programming process for two dispensers. Repeat steps as needed to add
commands for additional dispensers (up to four dispensers can be installed).

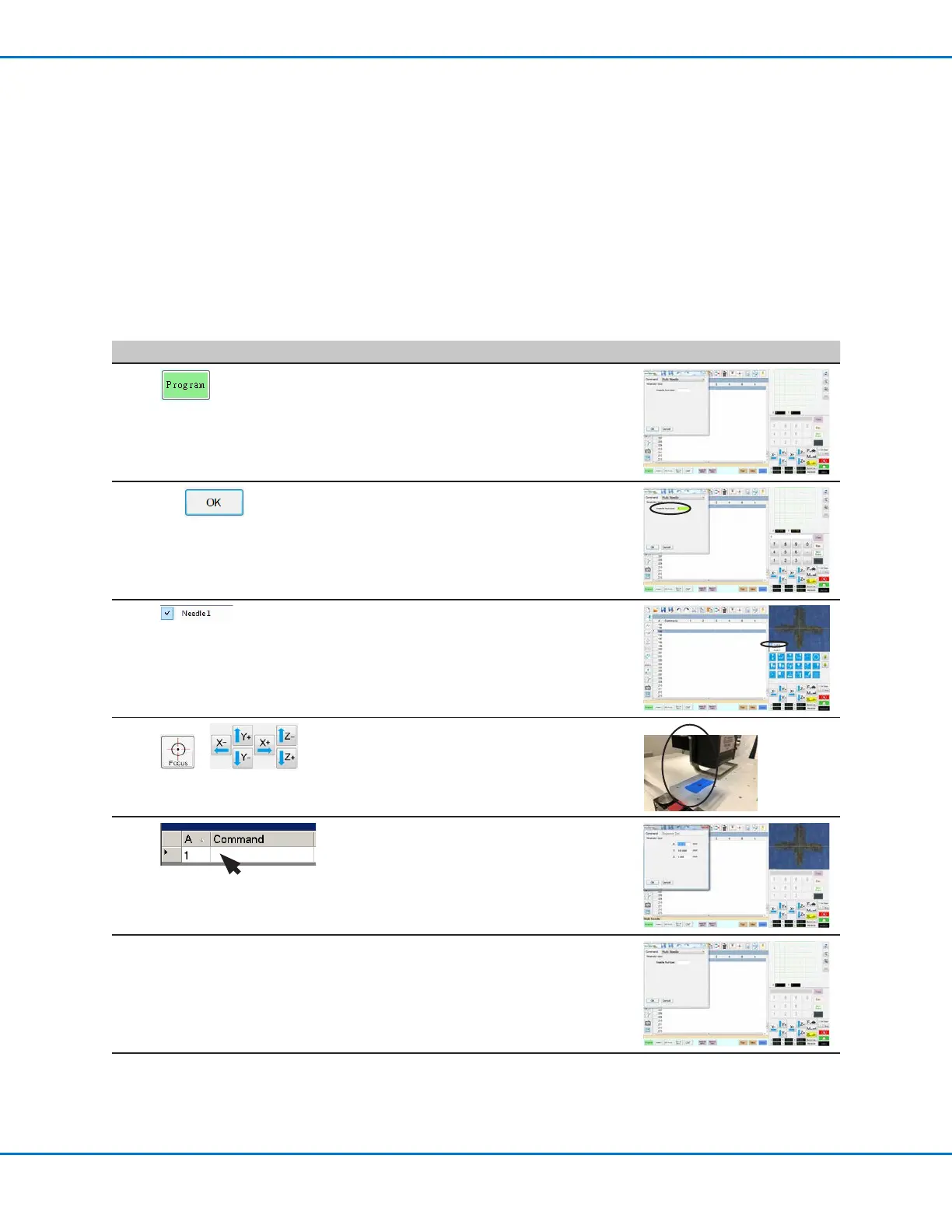

# Click Step Reference Image
1
> MULTI NEEDLE
• Click the PROGRAM tab
• Double-click the address row where you
want to insert a Multi Needle command and
select MULTI NEEDLE.
2
1 >
• Enter the number of the dispenser to
dispense from at this point in the program (in
this example, Dispenser 1).
• Click OK to save.
3
• In the Secondary View screen, right click and
check the NEEDLE 1 checkbox.
4
>
• Click the FOCUS icon to focus the camera.
• Jog the camera until the camera crosshairs
are centered over the desired target on the
workpiece.
5
• Insert the required commands for
Dispenser1 (for example, create dispense
dots or lines).
6
MULTI NEEDLE
• Double-click the address row where you
want to insert the second Multi Needle
command and select MULTI NEEDLE.
Continued on next page
