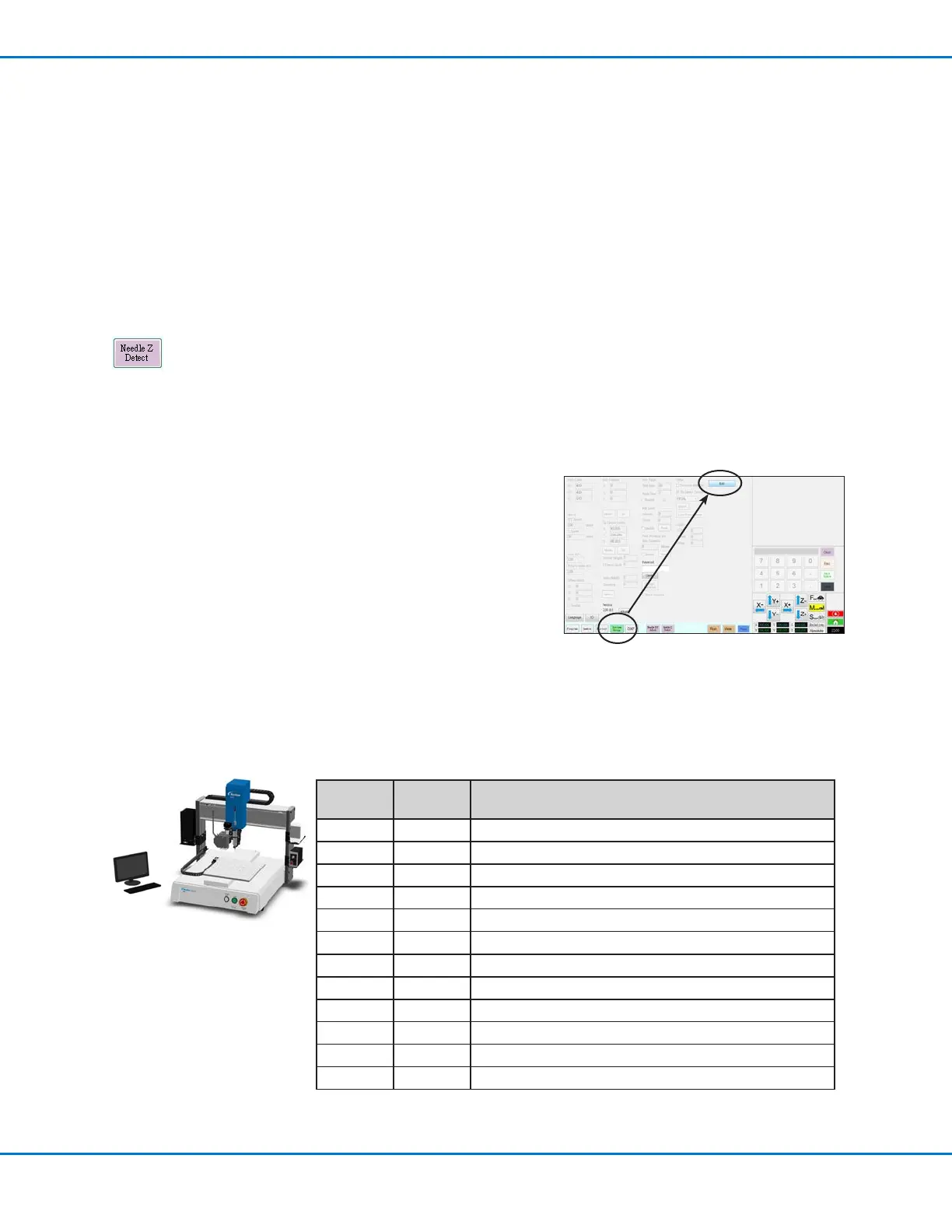

Pausing During a Dispense Cycle
Press START at any time to pause the system during a dispense cycle; the system pauses at its current position.
NOTE: If the system is paused when the dispenser is open, pattern integrity will be compromised.
Purging the System
To purge the system, press the DISPENSER PURGE button.
NOTE: You can set up the system to purge automatically. Refer to “How to Set Up Auto Purge, Program Cycle
Limits, or Fluid Working Life Limits” on page93.
Updating Offsets
After running a program repeatedly for several hours, click NEEDLE Z DETECT to update the system to
compensate for minute changes that can occur after long periods of operation.
Refer to “How the System Responds to Needle Z Detect or Needle XY Adjust” on page55 for a detailed
description of the system response to a Needle Z Detect selection.
Shutting Down the System
1. Click SYSTEM SETUP > EXIT to close the DispenseMotion
software. If prompted to save a file, select YES or NO.
2. Switch off the following components as applicable:
• DispenseMotion controller
• Monitor
• Robot
• Light controller
3. Refer to the dispensing system manuals for any special
shutdown instructions.
Part Numbers
Part #
Part #
Europe*
Description
7362911 7363829 Robot, PRO3, 250 x 250 x 100 mm
7362913 7363830 Robot, PRO3L / A, 250 x 220 x 100 mm, laser A
7362914 7363831 Robot, PRO3L / B, 250 x 220 x 100 mm, laser B
7363536 7363650 Robot, PROPlus3, 250 x 250 x 100 mm
7363538 7363652 Robot, PROPlus3L / A, 250 x 220 x 100 mm, laser A
7363537 7363651 Robot, PROPlus3L / B, 250 x 220 x 100 mm, laser B
7360860 7361353 Robot, PRO4, 350 x 350 x 100 mm
7360861 7361354 Robot, PRO4L / A, 350 x 320 x 100 mm, laser A
7360862 7361355 Robot, PRO4L / B, 350 x 320 x 100 mm, laser B
7363539 7363653 Robot, PROPlus4, 350 x 350 x 100 mm
7363541 7363654 Robot, PROPlus4L / A, 350 x 320 x 100 mm, laser A
7363540 7363655 Robot, PROPlus4L / B, 350 x 320 x 100 mm, laser B
*Complies with European safety regulations.
