Prepare the Work Surface or Fixture Plate
Prepare the robot work surface or the optional fixture plate for secure placement of the workpiece. Fixture plate
mounting hole templates are provided below.
11.81
300.00
11.81
300.00
7X 1.57
40.00
7X 1.57
40.00
64X M4X0.7 - 6H THRU AL
L

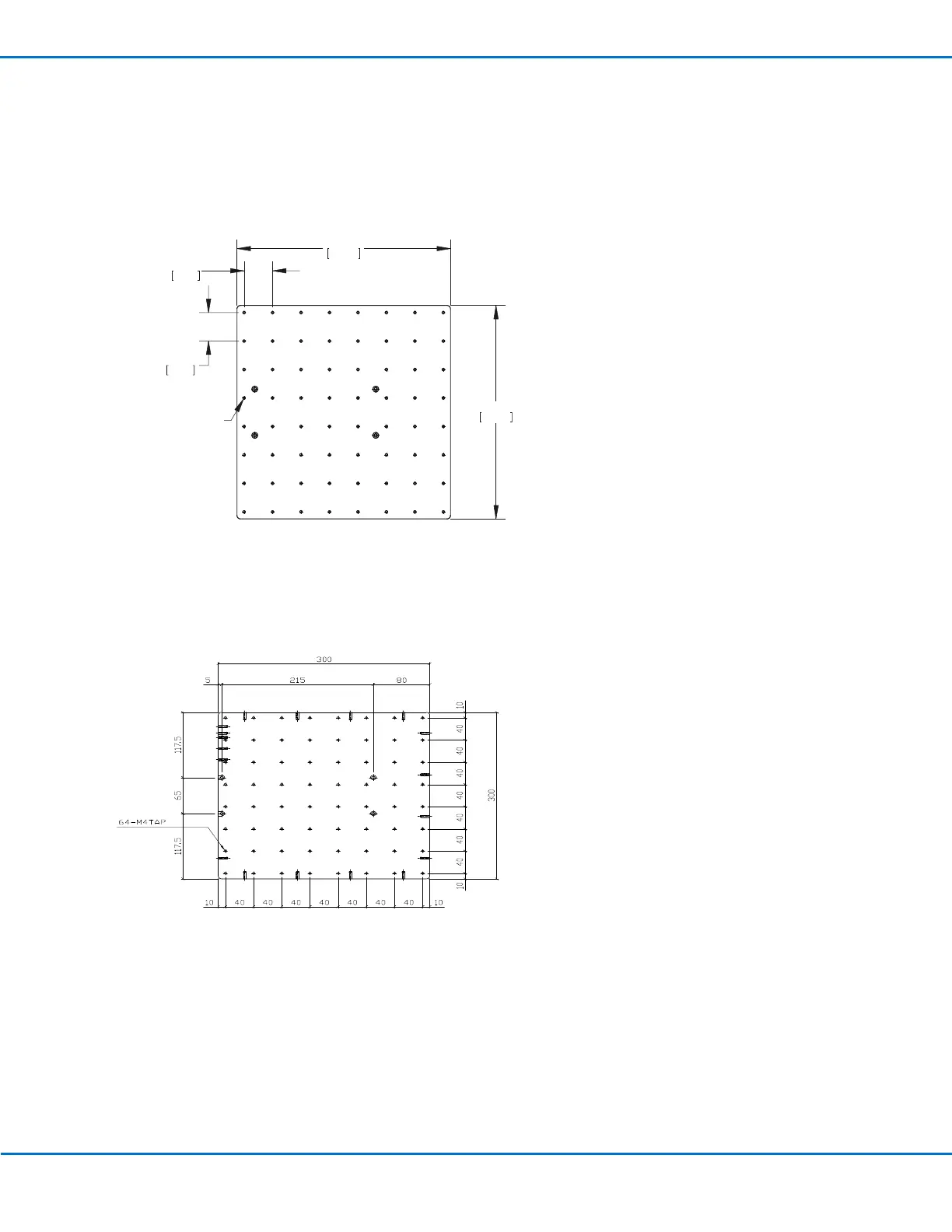

Fixture Plate Mounting Hole Template for PRO4 Robots
NOTE: Dimensions are in inches [millimeters].
Fixture Plate Mounting Hole Template for PROPlus4 Robots
NOTE: All dimensions are in mm.
