PROPlus / PRO Series Automated Dispensing Systems
23www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
Connect Inputs / Outputs (Optional)
All automated dispensing systems provide 8 standard inputs and 8 standard outputs. Connect input / output
wiring to the I/O PORT connection on the back of the robot. For a wiring diagram, refer to “I/O Port” on page106.
There are several ways to use the system inputs / outputs. Refer to “Setting Up Inputs / Outputs” on page58 for
additional information on inputs / outputs.

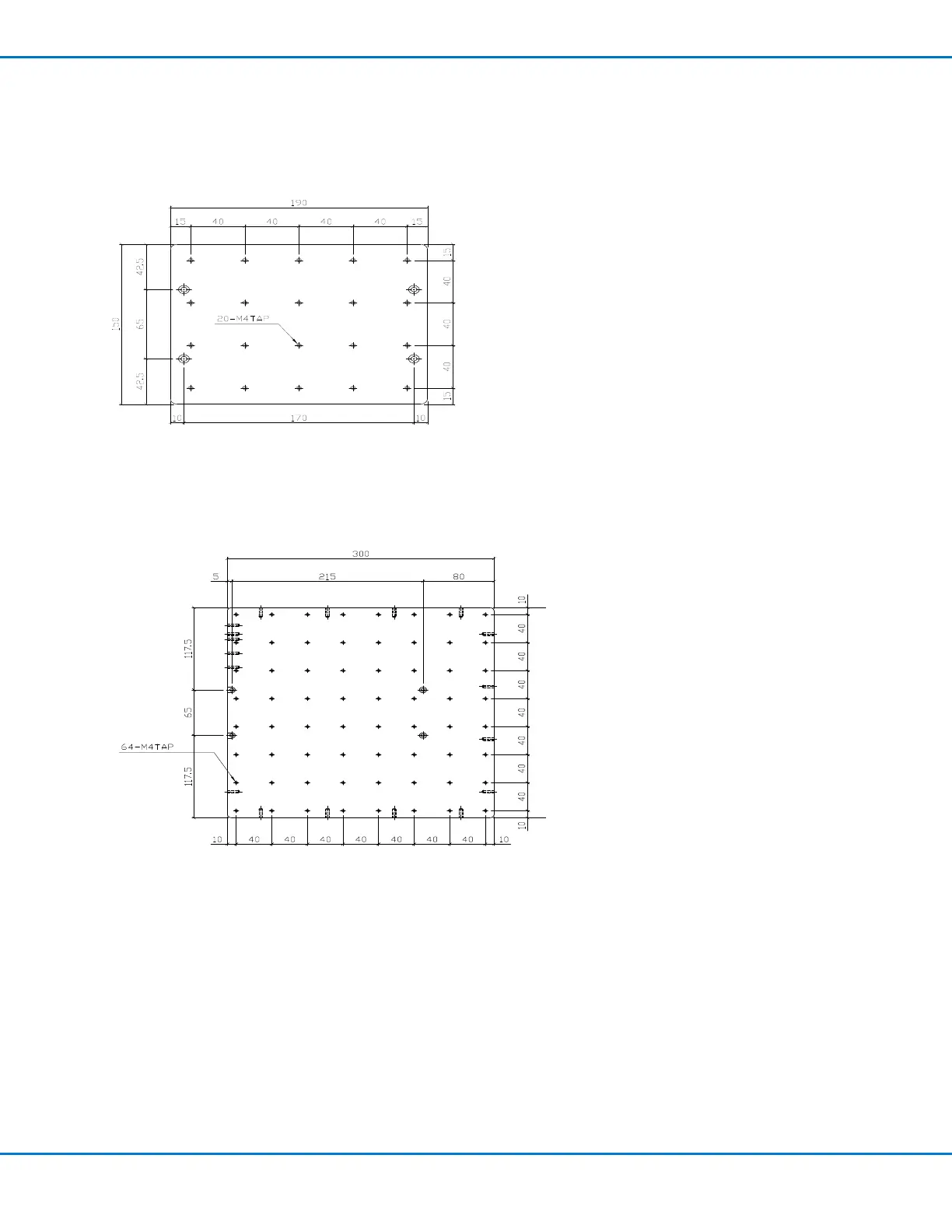

Fixture Plate Mounting Hole Template for PRO3 Robots
NOTE: All dimensions are in mm.
Fixture Plate Mounting Hole Template for PROPlus3 Robots
NOTE: All dimensions are in mm.
Prepare the Work Surface or Fixture Plate (continued)
