4-40 Power-Up and Testing

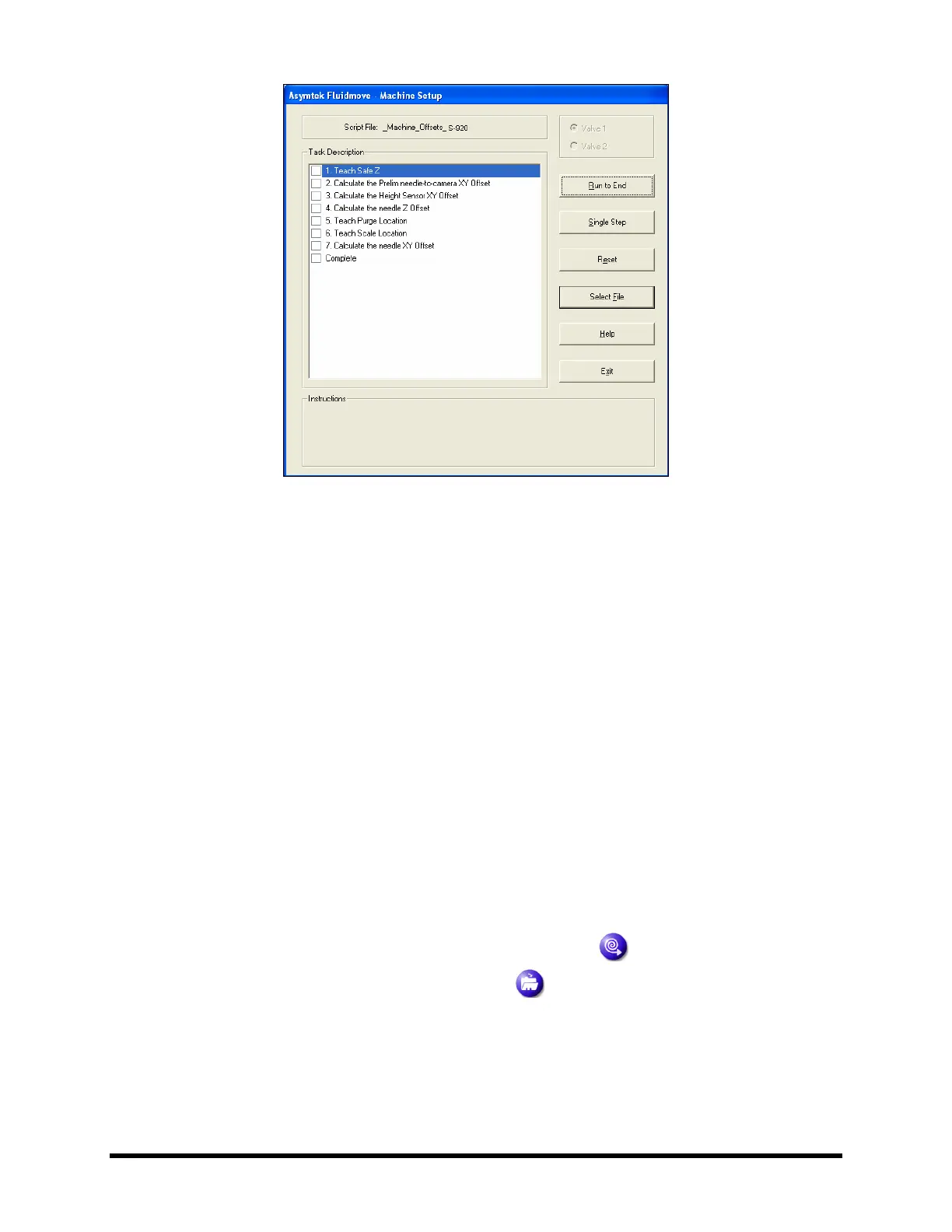

Figure 4-26 Machine Setup Dialog Box
3. Click on Run to End to perform the offsets routine.
4. Once you have completed the Scripted Valve Offsets routine, perform a simulated (dry)
production run using the TS-01 Test Box as follows:
" NOTE If your system is equipped with substrate heaters, make sure the heaters have
reached the set point temperature (SP) before proceeding with this procedure.
a. Perform a service shutdown as specified in 2.11 Service Shutdown.
b. Attach the TS-01 upstream and downstream cable adapters to the TS-01 I/O Test Box.
c. Attach the TS-01 upstream and downstream cables to the appropriate SMEMA
connectors at the rear of the dispensing system.
d. Start the dispensing system as specified in 4.5 Powering on the Dispensing System.
e. Make sure that all of the
I↔O/INDEP switches along the edge of the TS-01 I/O Test Box
are all set to
INDEP.
f. Make sure that the
DRIVERS/OPTO I/O switch in the corner of the TS-01 I/O Test Box is
set to
OPTO I/O.
g. In the FmXP Main Window, click on
Run a Program .
h. In the Production Window, click on
Load .
i. Select a dispensing program from the list and click on
Open. See Figure 4-27.
