1.10.7 Rear Cabinet
Item Name Description
1 Power Manager
The Power Manager is located inside the rear cabinet. It houses the
Main Circuit Breaker and the Main Power Inlet. It also contains the
EMO circuitry. The EMO button, the green ON (I) button, and the black
OFF (0) button are directly connected to the Power Manager.
2
Conveyor/Heater
Module (Dual Conveyor
Configuration shown)
The Conveyor/Heater Module receives power from the Power Manager
and supplies AC power to the substrate heaters in the dispensing area.
It also controls all conveyor functions (motors, sensors, pneumatics,
etc.).

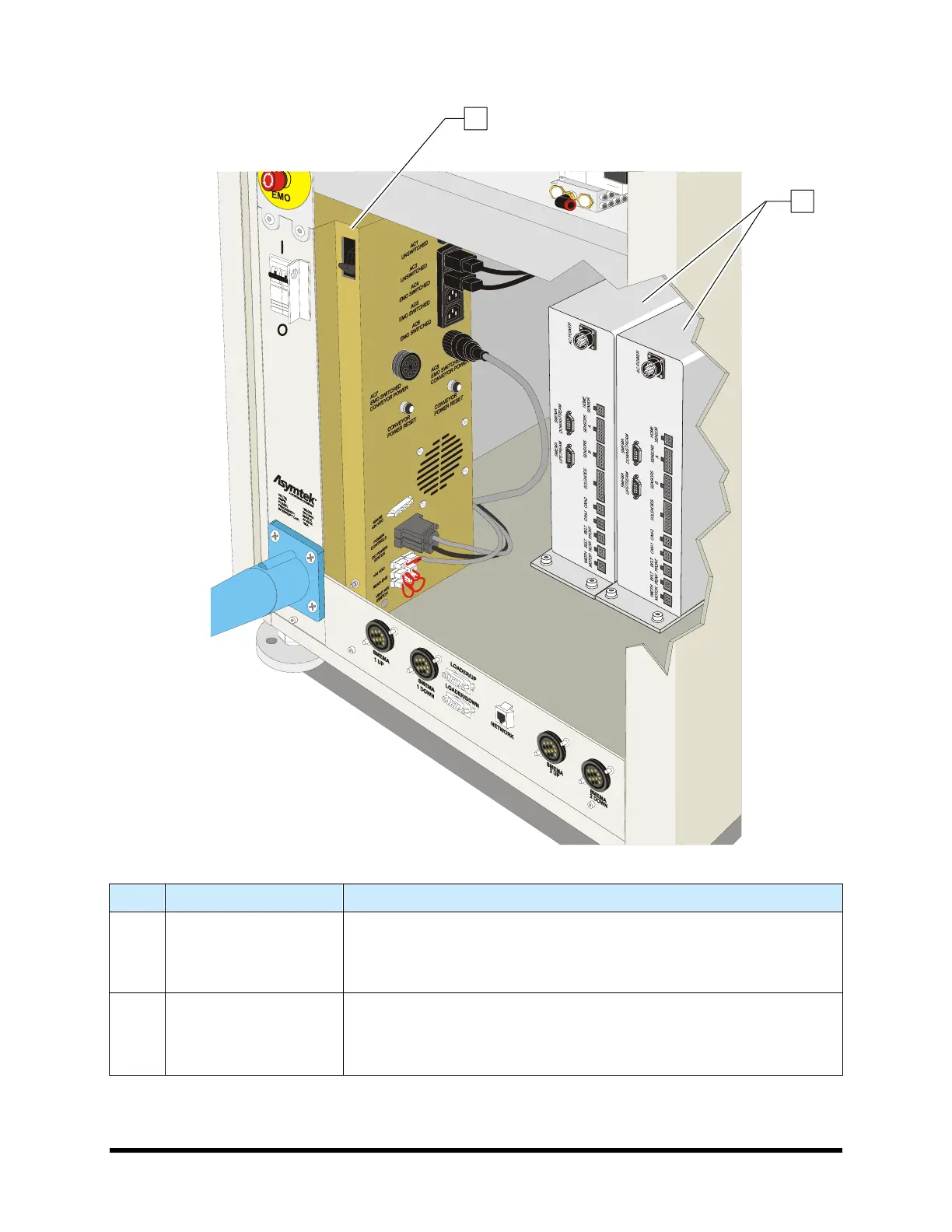

Figure 1-9 Rear Cabinet (Dual Conveyor Configuration Shown)
1
2
