1-10 Introduction
1.10.1 Dispensing Area
Item Name Description
1 Vision System
The compact, high resolution, black and white camera and lens are
part of the Vision System. They are mounted on the Dispensing
Head and are used to view work surfaces.
2 Dispensing Valve
The Dispensing Valve (DJ-9000 shown) controls or regulates the
flow of material from a pressurized reservoir, such as a syringe.
Devices include valves and jets.
3 Conveyor
The Conveyor transports the workpiece from an upstream system to
the dispensing station and then to downstream systems. All
Conveyors are SMEMA compatible and have adjustable rear rail
width.
4 Service Station
The Service Station consists of the Dispense Tile, Tactile Needle
Sensor, Purge Station, and Scale. See
Figure 1-4.
Height Sensor
(NOT SHOWN)
The Height Sensor is a device that measures substrate height and
sends a signal to the system computer. The height information is
used to position the dispensing needle at an exact distance above
the workpiece surface.

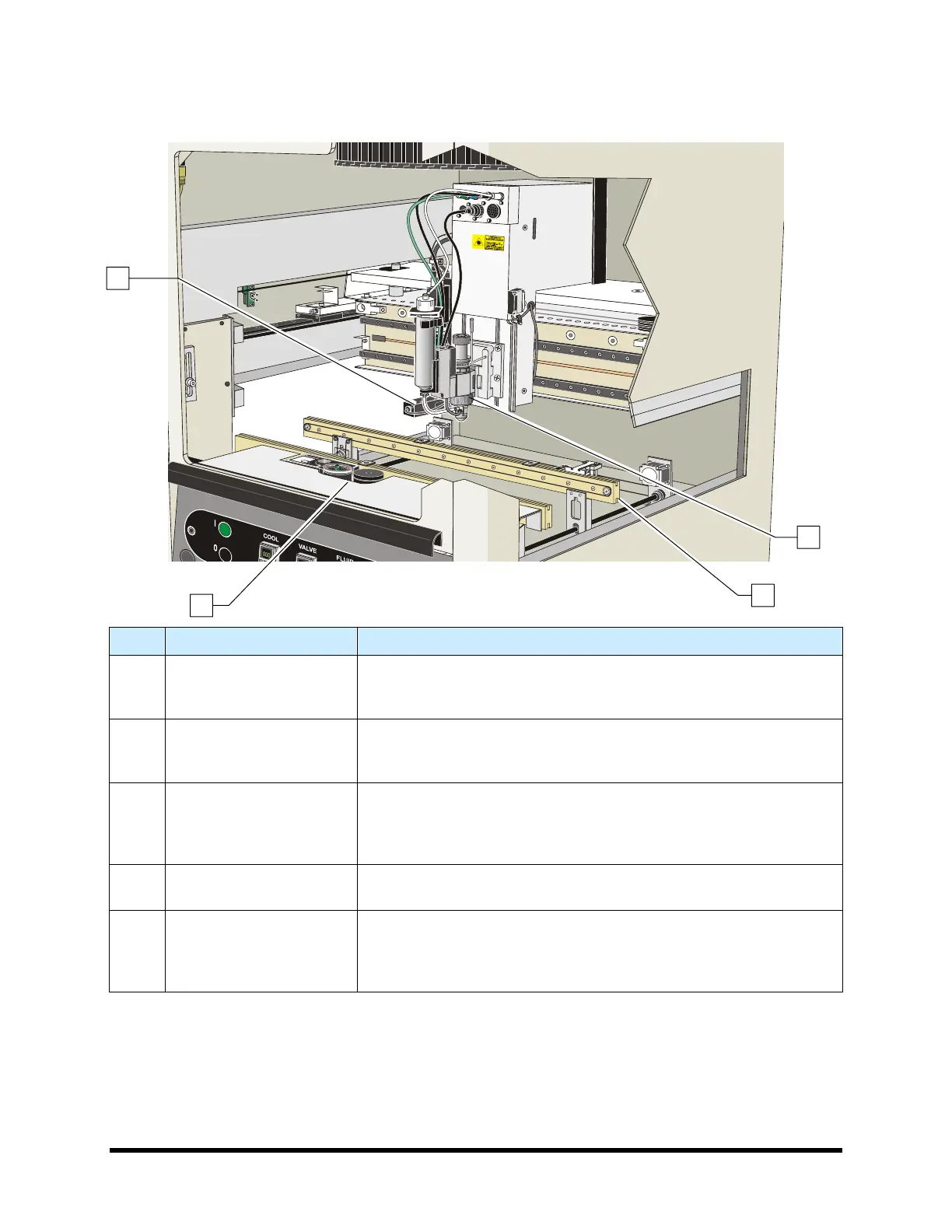

Figure 1-3 Dispensing Area
