Nordson Asymtek Spectrum S-920 User Manual

Parts Replacement 9-9
9.9 Replacing the Height Sensor Probe
To replace the Height Sensor Probe:
1. Remove all valve clamps attached to the Z-head (
16HFigure 9-4).
2. Remove the Z-head top cover.
3. Remove the front valve panel.
4. Unhook the two springs from the upper spring bracket.
5. Remove the Z-plate.
6. Dismount the height sensor assembly from the Z-carriage.

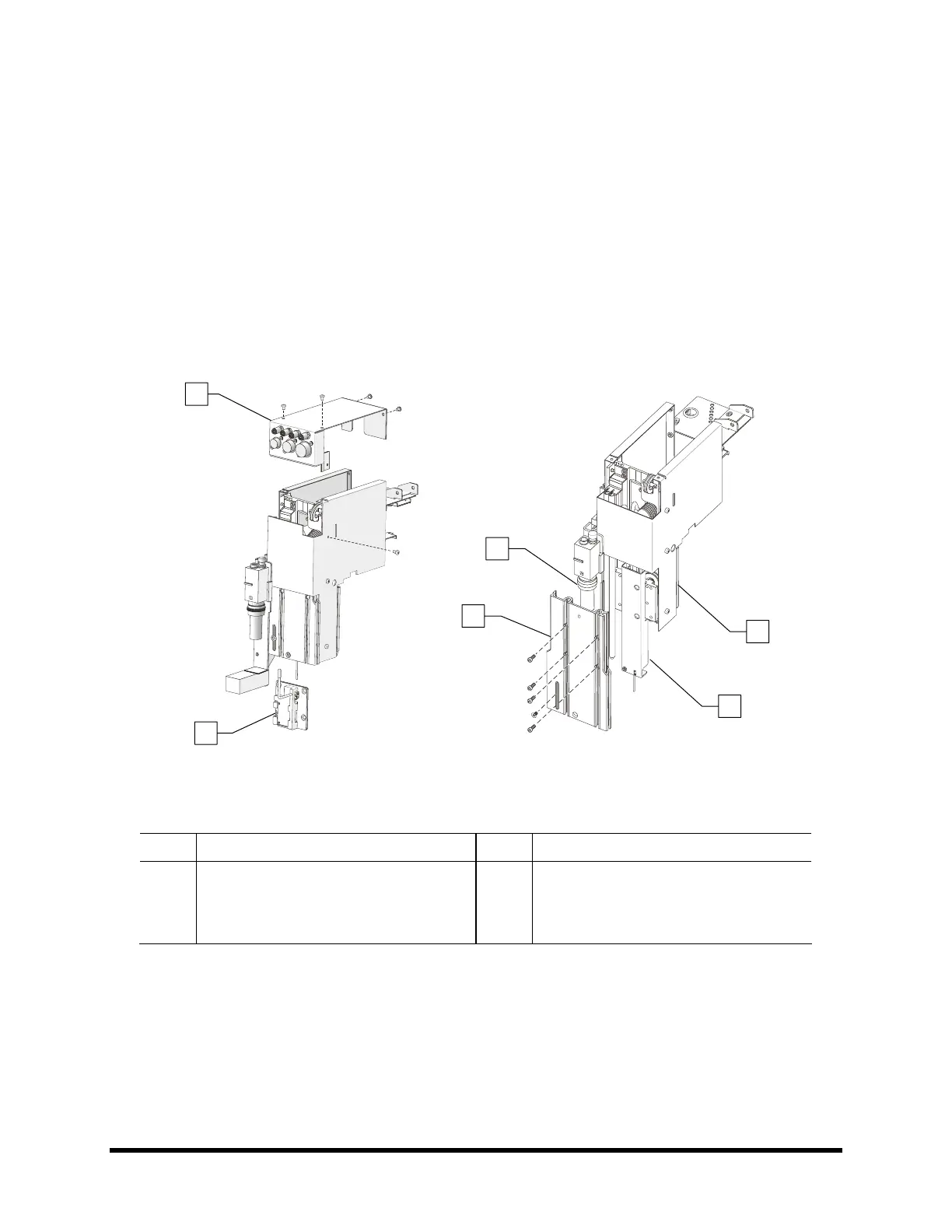

17HFigure 9-4A Removing the Z-head Top Cover
and Front Valve Panel
18HFigure 9-4B Removing the Z-plate
Item Description Item Description
1 Z-head Cover and Front Valve Panel 4 Z-plate
2 Valve Clamps 5 Height Sensor Assembly
3 Upper Bracket Springs 6 Z-carriage
Figure 9-4 Removing the Z-Head Panels
1
2
3
4
5
6
