9-10 Parts Replacement
7. Turn over the height sensor assembly to reveal the probe (19HFigure 9-5).
8. Loosen the screw and remove the probe from the top.
9. Replace the probe and re-mount the height sensor assembly.
10. Re-attach the two springs to the upper bracket.
11. Reach under the Z-head cover and firmly pull out the two springs and hook on to the
lower bracket.
12. Re-attach the Z-plate, valve clamp, and all other covers.
Item Description
1 Height Sensor Probe
2 Lower Bracket Springs
3 Probe Adjustment Screw

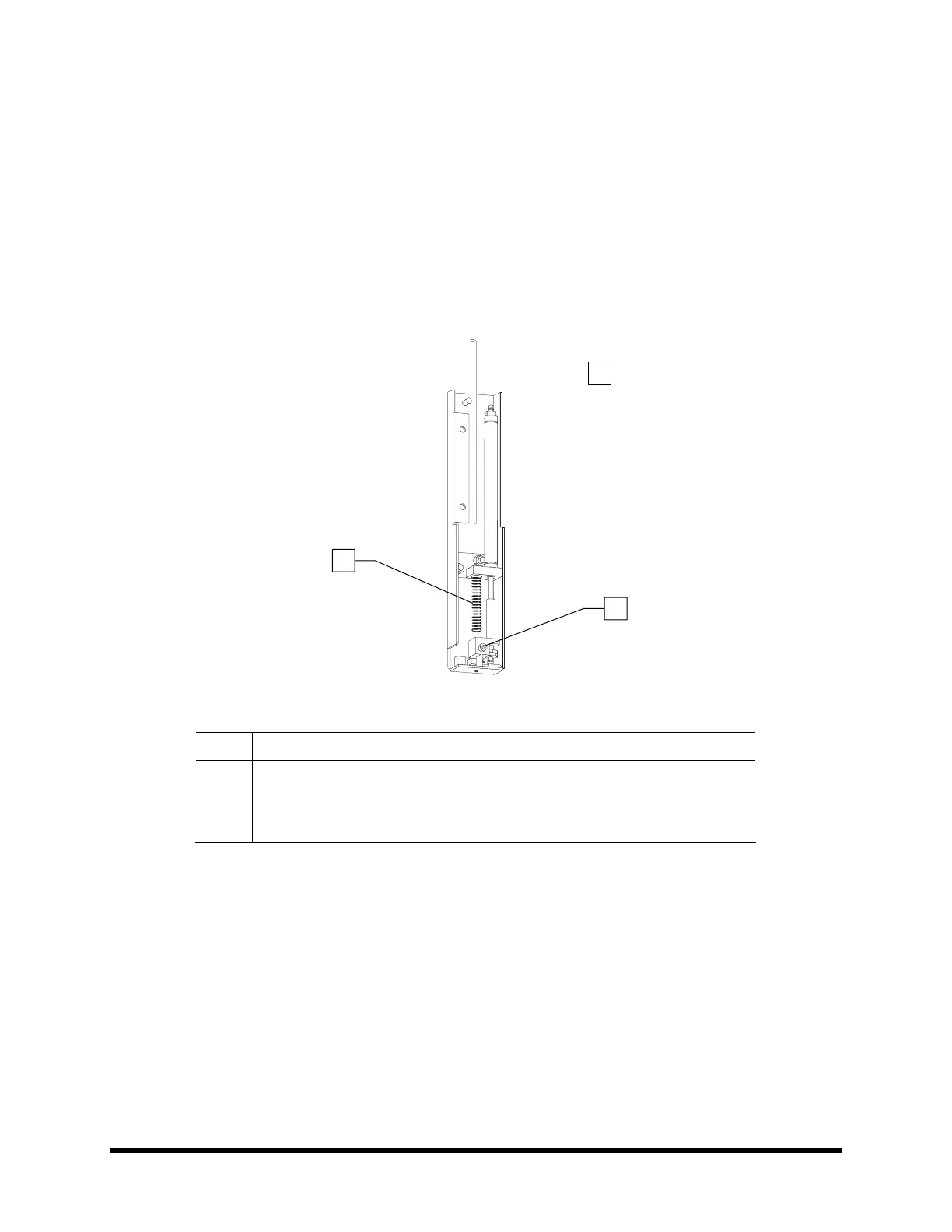

Figure 9-5 Height Sensor Probe
1
2
3
