Appendix B - Block Diagrams B-3
B.4 Conveyor/Heater Module Connections
Item Name Description
1 SMEMA Upstream Connects to the machine’s external upstream SMEMA port
2 SMEMA Dowstream Connects to the machine’s external downstream SMEMA port
3 Width Motor Controls the rail width stepper motor
4 Belt Rear Controls the rear belt stepper motor
5 Belt Front Controls the front belt stepper motor
6 CAN-1 CAN serial communications in to the module
7 CAN-2 CAN serial communications out of the module
8 Solenoids Controls solenoids related to conveyor functions (stop, lift, vacuum)
9 Sensors B (spare)
10 Sensors A Connects to board sensors mounted on the conveyor rails
11 Home Sensor Connects to the conveyor’s width home sensor
12 AC Power Connects AC power to the conveyor controller

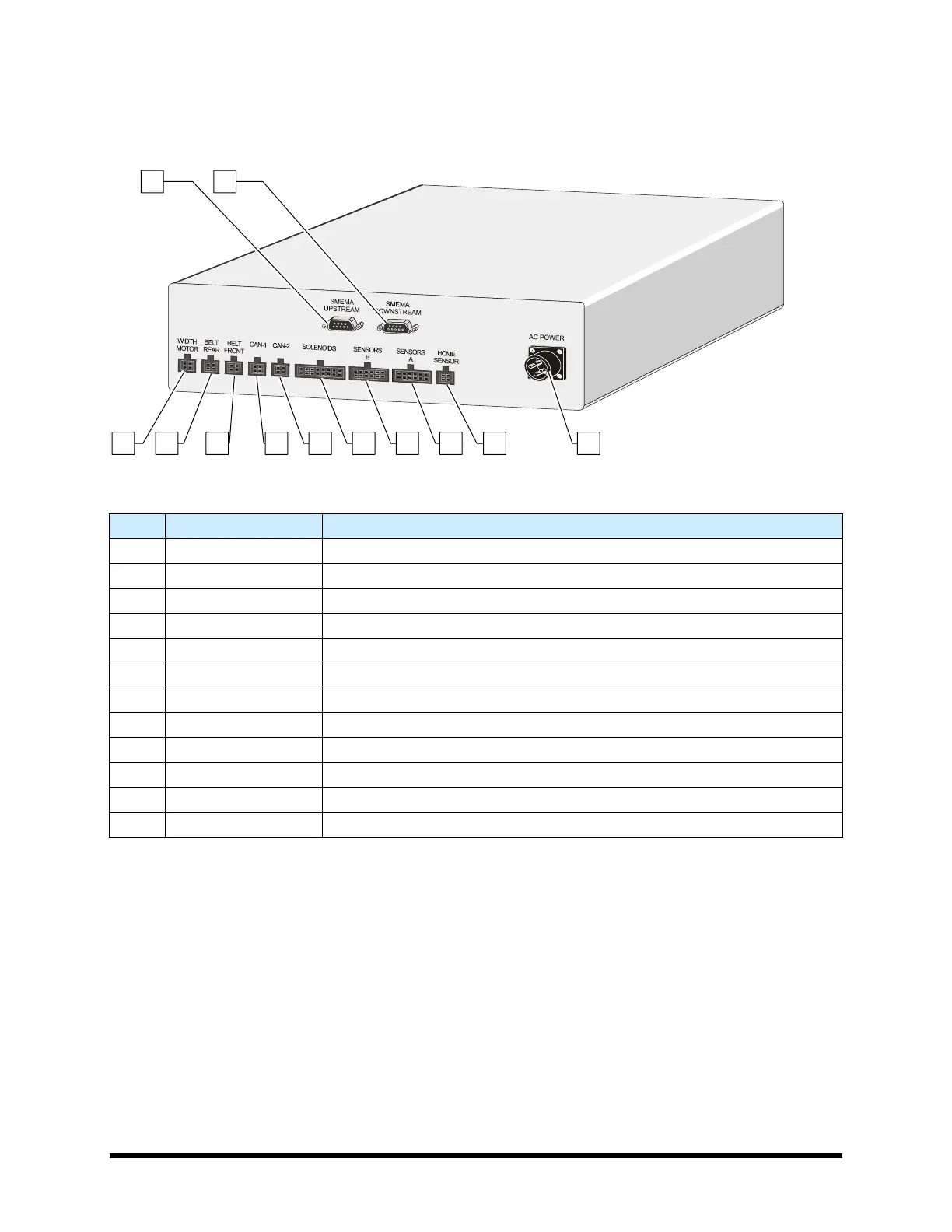

Figure B-2 Conveyor/Heater Module Connections
3 4 5 6 7 8 9 10 11
1 2
12
To Next Page
