Nordson Asymtek Spectrum S-920 - Leveling the Scale Mechanism

3-10 Installation
3.8 Leveling the Scale
1. Check the scale level bubble.
! If the bubble is not centered, the scale must be leveled. If the bubble is centered, the scale
is level.
2. Adjust the scale leveling screws until the scale is level (
Figure 3-11).

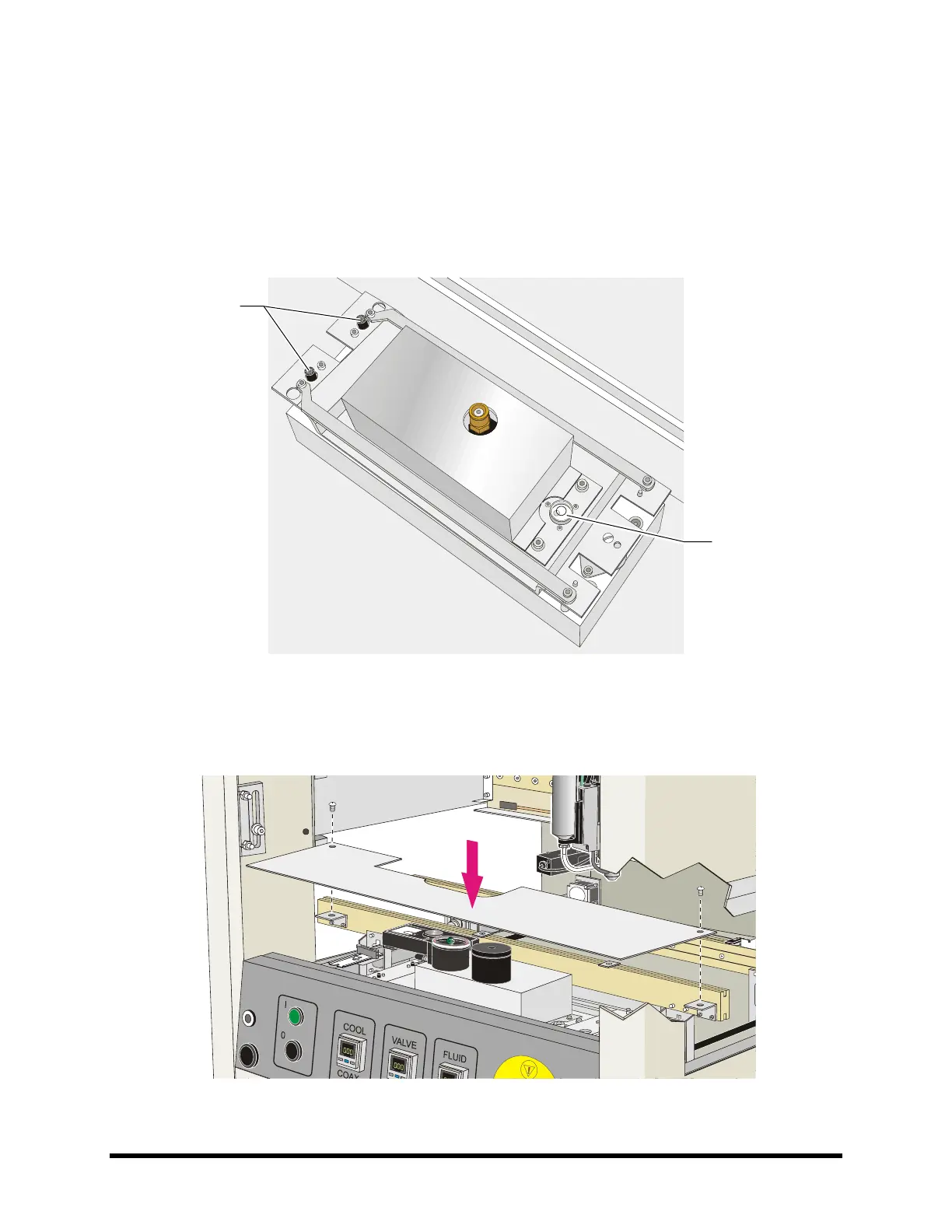

Figure 3-11 Leveling the Scale
3. Replace the scale cover and reinstall the two mounting screws (Figure 3-12).
Figure 3-12 Replacing the Scale Cover
Bubble
Leveling Screws
