Nordson Asymtek Spectrum S-920 User Manual

6-10 Operation
6.7 Positioning the Conveyor and Dispensing Head
When necessary, an operator can use Fluidmove Position (Jog) Controls to adjust conveyor rail width,
reposition the workpiece X-axis location on the conveyor, and reposition the dispensing head in the X-,
Y-, and Z-axes. These position controls can be operated using the touchpad to click on-screen buttons, or
by pressing key combinations on the keyboard. Both methods are described below.
" NOTE These procedures assume that the dispensing system and computer have been turned on
as specified in 4.5 Powering on the Dispensing System.
6.7.1 Using the Touchpad
To operate position controls with the touchpad:
1. In the Fluidmove Main Window, click on
Jog.
! The Position Controls dialog box opens. See Figure 6-10.
" NOTE The Position Controls can be accessed from the Main Window, the Production Window,
the Run Window, the Programming Window, and the Tools Window. The selected jog
device is indicated in the bottom right-hand corner of all major windows.
2. Click on the
Conveyor 1 radio button to activate the Conveyor 1 position controls or click on
the
Dispenser radio button to activate the Dispensing Head position controls.
" NOTE See 6.7.3 Dual Conveyor Systems for systems equipped with dual conveyors.
Item Description
1 Y-axis Controls (rear rail forward and backward movement)
2 X-axis Controls (belt left and right movement)
3 Radio Buttons (Conveyor 1 selected)

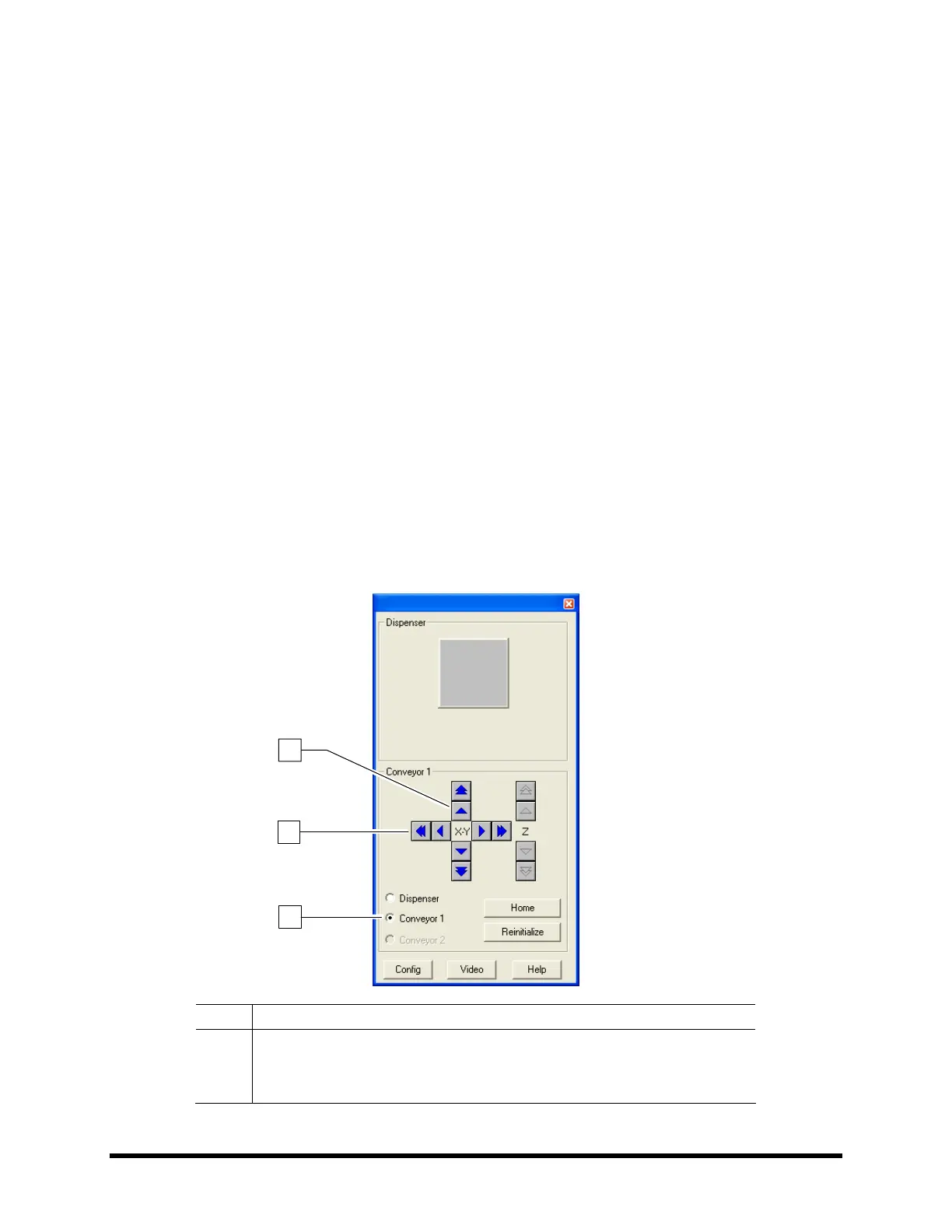

Figure 6-10 Conveyor Position Controls
1
2
3
