3-2 Installation
3.5 Uncrating and Placing the Dispensing System
To uncrate and place the dispensing system:
1. Check the “Tip & Tell” and "Shockwatch" devices, both on the outside of the shipping crate
and on the dispensing system, to make sure that the dispensing system has not been dropped
or tipped. If any of these devices has been activated, contact Asymtek.
" NOTE If the dispensing system is being installed in a clean room, uncrate the system,
remove all packaging material, including wrapping paper and tape from all parts
and components, before moving into the clean room.
2. Locate and remove the envelope on the outside of the shipping crate. Open the envelope and
locate the shipping list.
! As you unpack each item inside of the box, identify the item, locate it on the shipping list,
and place a checkmark next to the item.
3. Referring to the uncrating instruction sheet, use the flat bar and hammer to remove the lid and
sides of the crate.
WARNING! CAUTION!
Personnel should wear gloves and safety glasses while removing the top and
sides of the crate. Sufficient personnel should be used to lift and control the crate
to prevent serious injury to personnel or damage to the dispensing system.
4. Remove the four machine-to-crate shipping brackets attached to the pallet using a 1/2-inch
wrench and 9/16-inch wrench (
Figure 3-1).
Item Description Item Description
1 Foot Restraint Bracket 5 Lag Bolts and Washers
2 Hex Head Screws and Washers 6 Hex Nuts and Washers
3 Leveler (foot) 7 Post Nut
4 Machine-to-Crate Shipping Bracket 8 Lock Nut

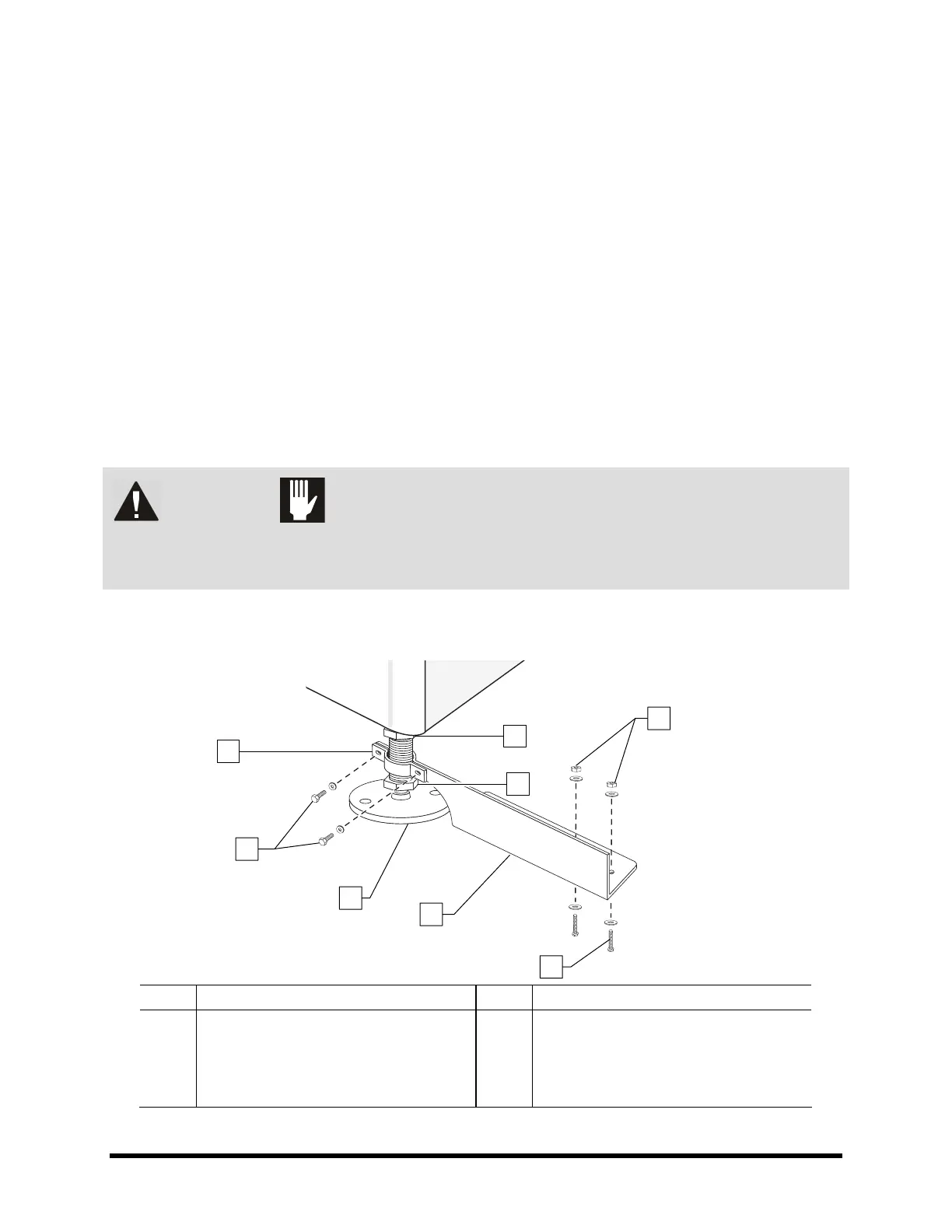

Figure 3-1 Removing the Shipping Brackets
1
2
3
4
5
6
8
7
To Next Page
