Operation 6-3
Item Description Item Description
1 Cooling Air (Green) 4 Valve Electrical Connection
2 Valve Air Pressure (Black) 5 DJ-9000 Valve
3 Fluid Air Pressure (Clear)

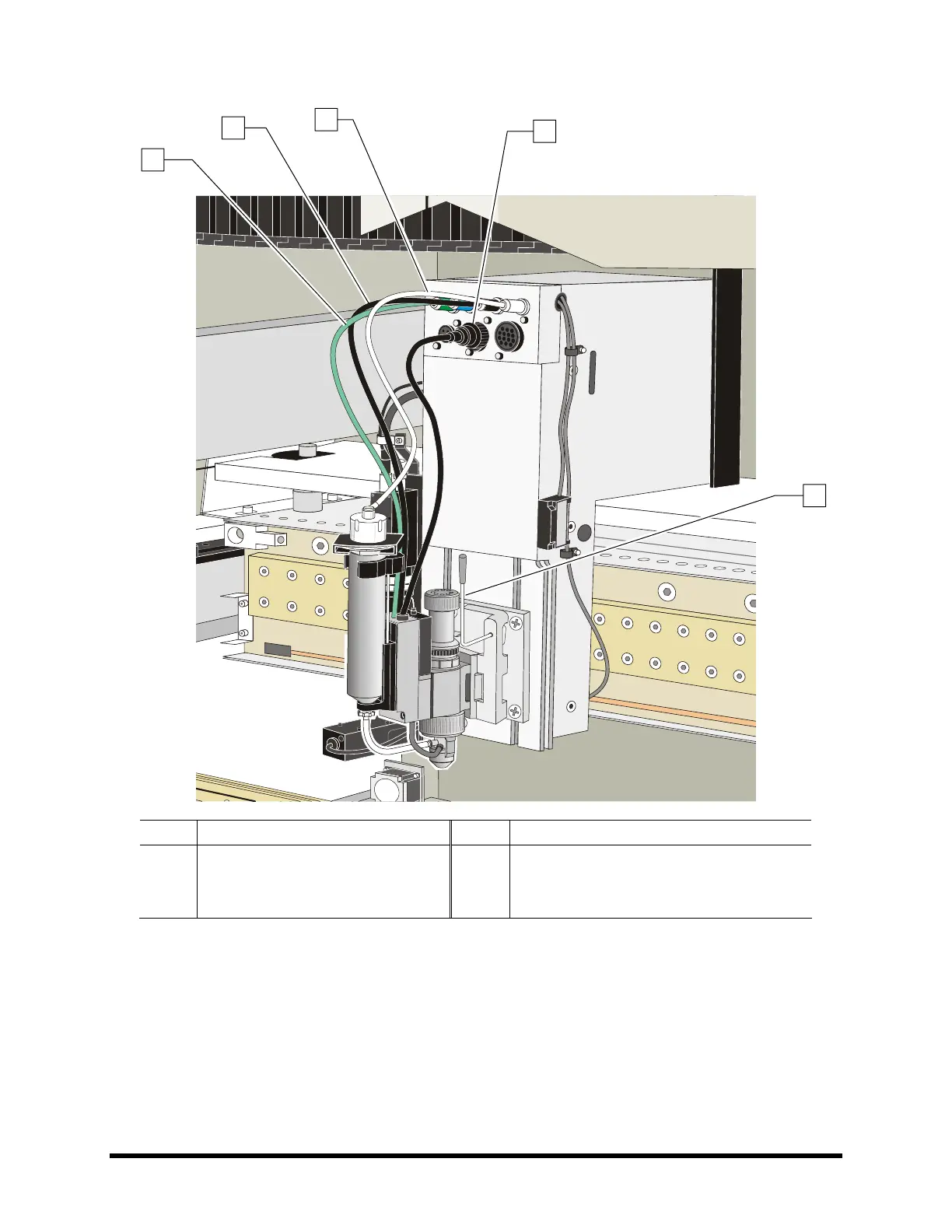

Figure 6-2 Valve Pneumatic and Electrical Connections (DJ-9000 shown)
1
2
3
4
5
