ID50 Series Panel - Installation, Commissioning & Configuration Manual
Commissioning
32997-263, Issue 4
September 2002
4.5.2 Batteries

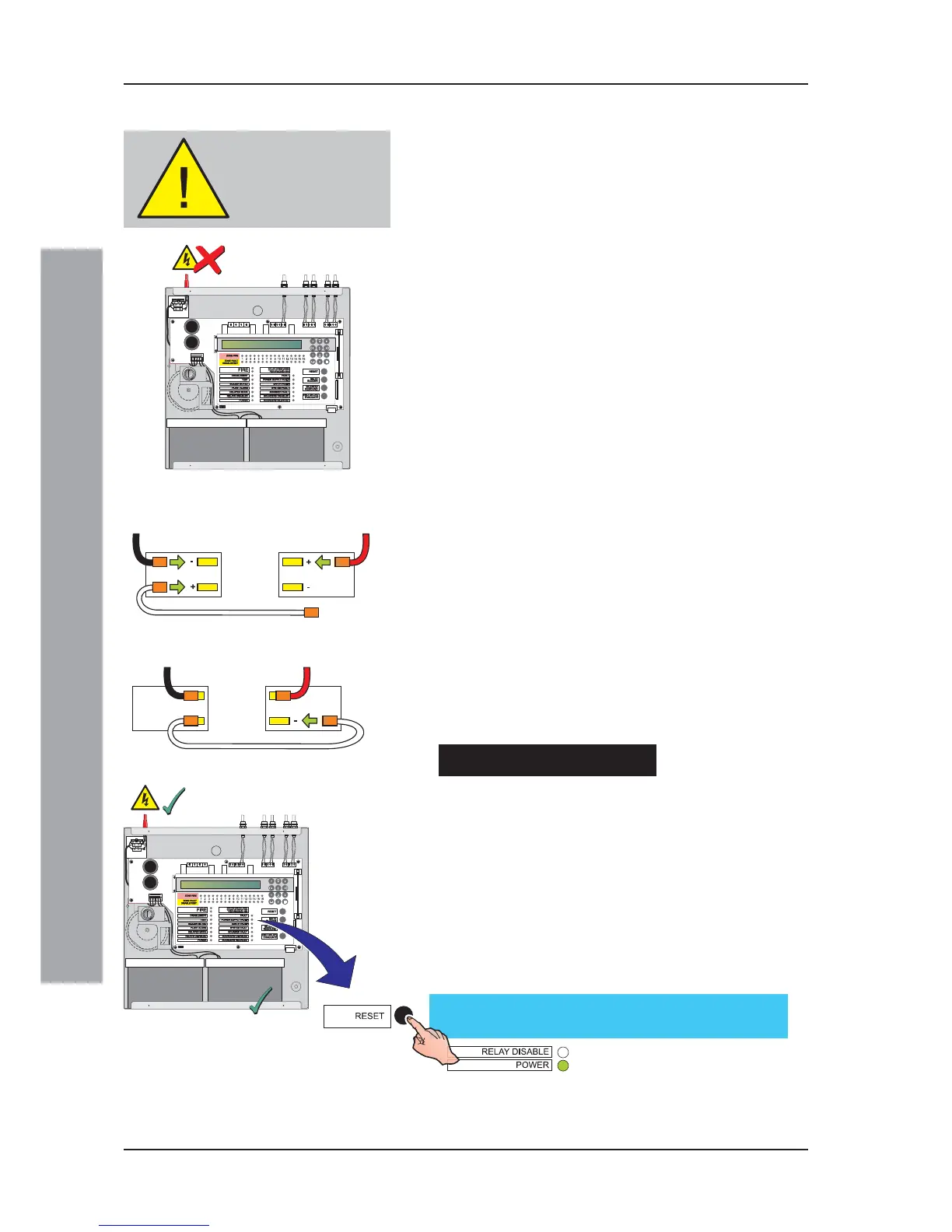

The ID50 Series Panel back box holds up to two 12V,
12Ah batteries. the batteries are not supplied with the
panel. A valve-regulated, lead-acid type MUST be used.
To connect the batteries:
1 Externally isolate the mains supply at the third-party-
supplied isolation unit, remove the cover and fit the
batteries in the back box. Connect the mains/battery/
supply wiring plug to the power socket, between the
mains fuse (FS1) on the left and the battery fuse (FS2)
to the right.
2 Connect the red wire from the terminal block, TB2
(BAT+) to the positive terminal of battery 2 and the
black wire from the terminal block, TB2 (0V) to the
negative terminal on battery 1.
Connect one end of the interlink cable to battery 1
positive terminal only.
DO NOT connect both ends of the interlink cable at
this stage.
3 Turn on the AC mains supply and verify that after
power-up:
i The panel indicates CPU RESTART.
ii The buzzer sounds.
iii The FAULT and SYSTEM FAULT LEDs illuminate.
4 Connect the interlink cable to the negative terminal
on battery 2.
5 Reset the panel and check that the LCD displays the
Status: NORMAL message and that the FAULT and
SYSTEM FAULT LEDs extinguish.
Battery Disposal
As a minimum, replace the batteries every four years.
Always dispose of the batteries in accordance with the
battery manufacturers recommendations and local
regulations.
Status: NORMAL
Sat 05/01/2002 00:00
CAUTION-
ENERGY HAZARD!
NEVER short the battery
terminals
2
4
5
TB2 (0 V)
Battery 1
TB2 (BAT +)
Battery 2
Battery
1
Battery
2
To Next Page
