ID50 Series Panel - Installation, Commissioning & Configuration Manual
Configuration Mode
75 997-263, Issue 4
September 2002
5.10 System Options
The System menu allows:
a. The crystal frequency to be set.
b. The existing panel configuration to be cleared.
5.10.1 Crystal Frequency
To adjust the Crystal Frequency:
1 Press the
2
/
8
keys to display additional options
(6 : System, 7 : Normal and × : More) from the main
Commissioning menu.
2 On the numeric keypad, press the
6
button to
display the System menu.
3 At the System menu select the required option. Using
the numeric keypad, press the
1
button to select
the Crystal option.
4 Using the
2
/
8
buttons, scroll through the Crystal
Frequency options until the displayed value matches
that written on the PCB. Press the
5
button to
update/confirm the selection and return to the System
menu.

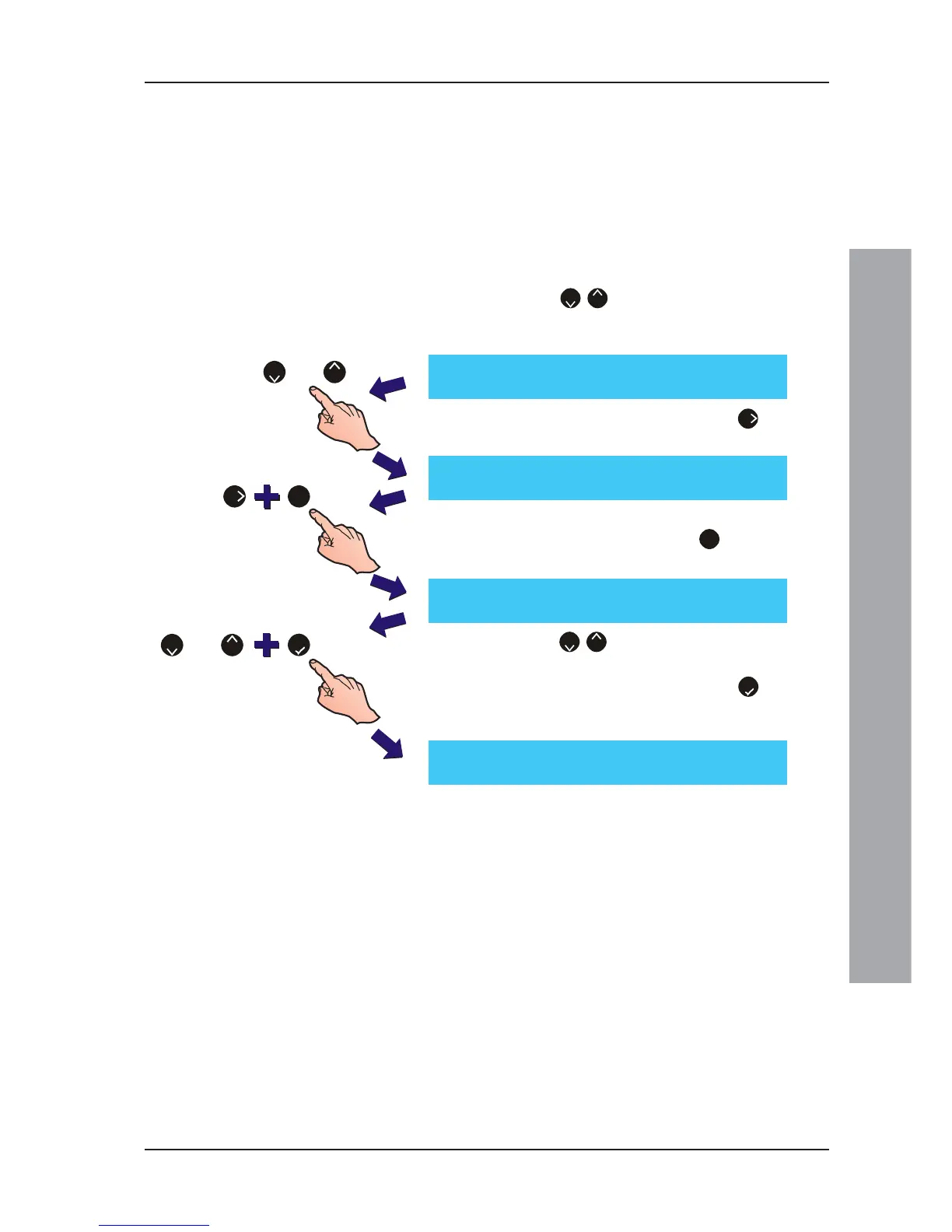

[S1 COMM] 1 : Setup 2 : Circuit
3 : CBE Rules 4 : Zones 5 : Access × : More
[S1 COMM] 6 : System 7 : Normal
× : More
[S1 SYSTEM] 1 : Crystal 2 : Wipe Memory
Crystal Frequency = nn.nnnnn MHz
3 : Update × : Change < : Cancel
or
8
2
5
or
8
2
1
6
To Next Page
