ID50 Series Panel - Installation, Commissioning & Configuration Manual
Configuration Mode
47 997-263, Issue 4
September 2002
5.5.18 Digital Input 1
Digital Input 1 can be configured as either Day Mode Start
or Class Change function.
When configured as Day Mode Start, activation from the
input during the Day Mode period starts/ends Day Mode
delays, depending on their current state.
When Class Change is selected outputs assigned to CBE
Rules that have Class Change configured will activate
when Digital Input1 is operated.

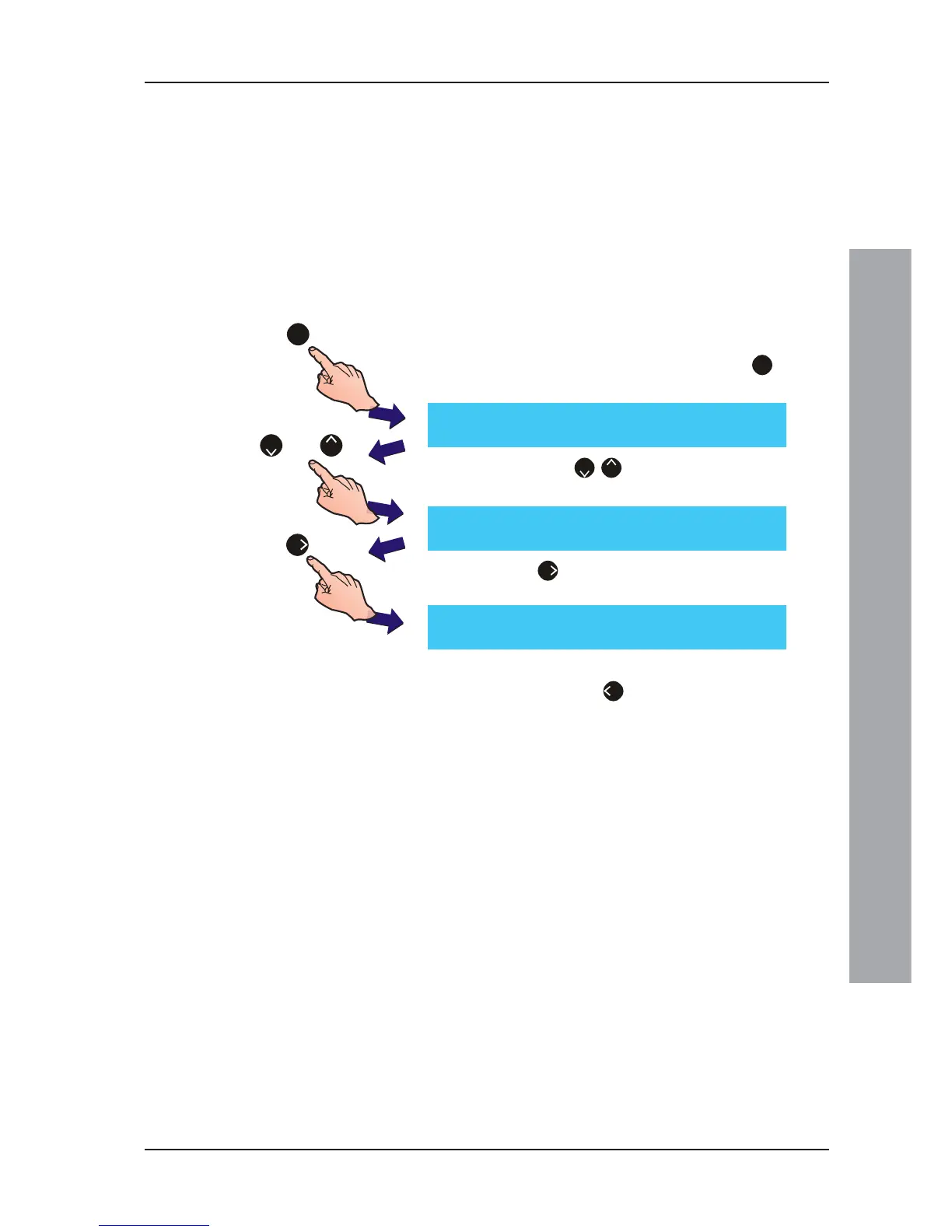

To configure Digital Input 1:
1 Using the numeric keypad, press
1
at the
Commissioning menu to enter the Setup menu.
2 Press either
2
/
8
to step through the options until
the Digital Input 1 menu is displayed.
3 Press
6
to toggle between Day Mode Start and
Class Change.
4 With the required configuration of Digital Input 1
displayed, press
4
to return to the Commissioning
menu.
[Setup] Language = English
> : Change × : More < : Exit
[Setup] Digital Input 1 = Day Mode Start
> : Change × : More < : Exit
[Setup] Digital Input 1 = Class Change
> : Change × : More < : Exit
1
or
82
6
To Next Page
