ID50 Series Panel - Installation, Commissioning & Configuration Manual
Configuration Mode
68997-263, Issue 4
September 2002
5.7.5 Interrupt Delay
The Interrupt Delay option has two settings, Yes (Y) or
No (N). This option is only available with the Fire rule.
Caution: Selecting No contravenes the
requirements of EN54.
To change the Interrupt setting from the CBE Output
Rules menu:
1 Press the
5
button using the numeric keypad to
select the Interrupt option.
2 Press the
6
button to select the required setting.
Refer to Section5.7, Control-by-Event Output
Rules for further information.
3 Confirm the selection by pressing the
5
button. To
cancel the selection, press
4
. In either case the
menu below is re-displayed.
5.7.6 Class Change
This control parameter has two options, Yes (Y) and No
(N). These indicate whether or not the selected CBE
Rules assigned outputs activate when Digital Input 1 is
configured as Class Change and then operated. To
configure Class Change, from the CBE Output Rules menu:
1 Press the
6
button using the numeric keypad to
select the Class Change option.
2 Press the
6
button to select the required setting.
Refer to Section5.7, Control-by-Event Output
Rules for further information.
3 Confirm the selection by pressing the
5
button. To
cancel the selection, press
4
. In either case the
menu below is re-displayed.

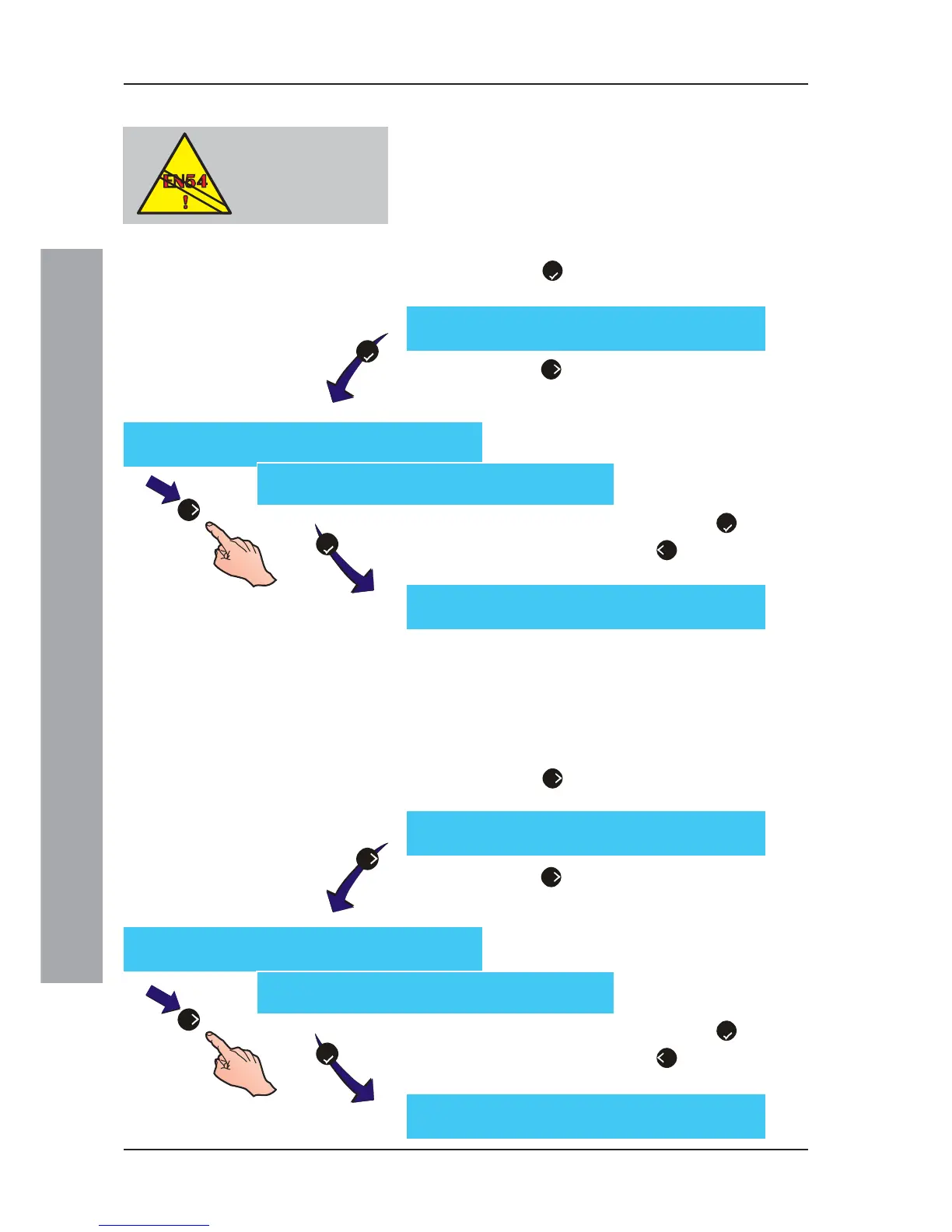

CBE Rule:01 1:Type 2:Filter 3:Evac
4:Silence 5:Interrupt × : More
EN54-2 : 7.11.d.
Configured delays MUST
be set to interruptable
(Y) to remain EN54
compliant
CBE Rule:01 Interrupt = [N]
>:Change 3:Accept < : Cancel
CBE Rule:01 Interrupt = [Y]
>:Change 3:Accept < : Cancel
CBE Rule:01 1:Type 2:Filter 3:Evac
4:Silence 5:Interrupt × : More
CBE Rule:01 6:Class Change 7:Two Zone
9:Zones × : More
CBE Rule:01 Class Change = [N]
> : Change 3: Accept < : Cancel
CBE Rule:01 Class Change = [Y]
> : Change 3: Accept < : Cancel
CBE Rule:01 6:Class Change 7:Two Zone
9:Zones × : More
6
5
5
6
5
6
