5.5.15 Number of Repeaters
The Number of Repeaters menu allows the quantity of
repeaters connected to the RS485 Communications Link
to be entered. The panel displays a fault if this quantity
does not equal the number of repeaters connected. To
enter the number:
1 From the Commissioning menu, press the
1
button
on the numeric keypad to enter the Setup menu.
2 Press the
2
/
8
buttons to step through the Setup
menu until the Number of Repeaters menu is
displayed.
3 Press the
6
button to enable the number or
repeaters to be entered.
4 Enter the required number using the numeric buttons;
for example if entering a value of 10, first press 1,
then 0.
5 Press the
5
button to confirm the setup or press
4
repeatedly to cancel and return to the Setup
menu.
5.5.16 Transmission Device
The Transmission Device activates in response to an
alarm condition. The Transmission Device menu enables
the configuration of either a continuous or a 6 second
pulse response. This feature is required for VdS-
compliant operation only.
5.5.17 FWP Input 4 Disabled
This menu disables either the Extinguishing System or
the Sounder Outputs. This feature is required for VdS-
compliant operation only.

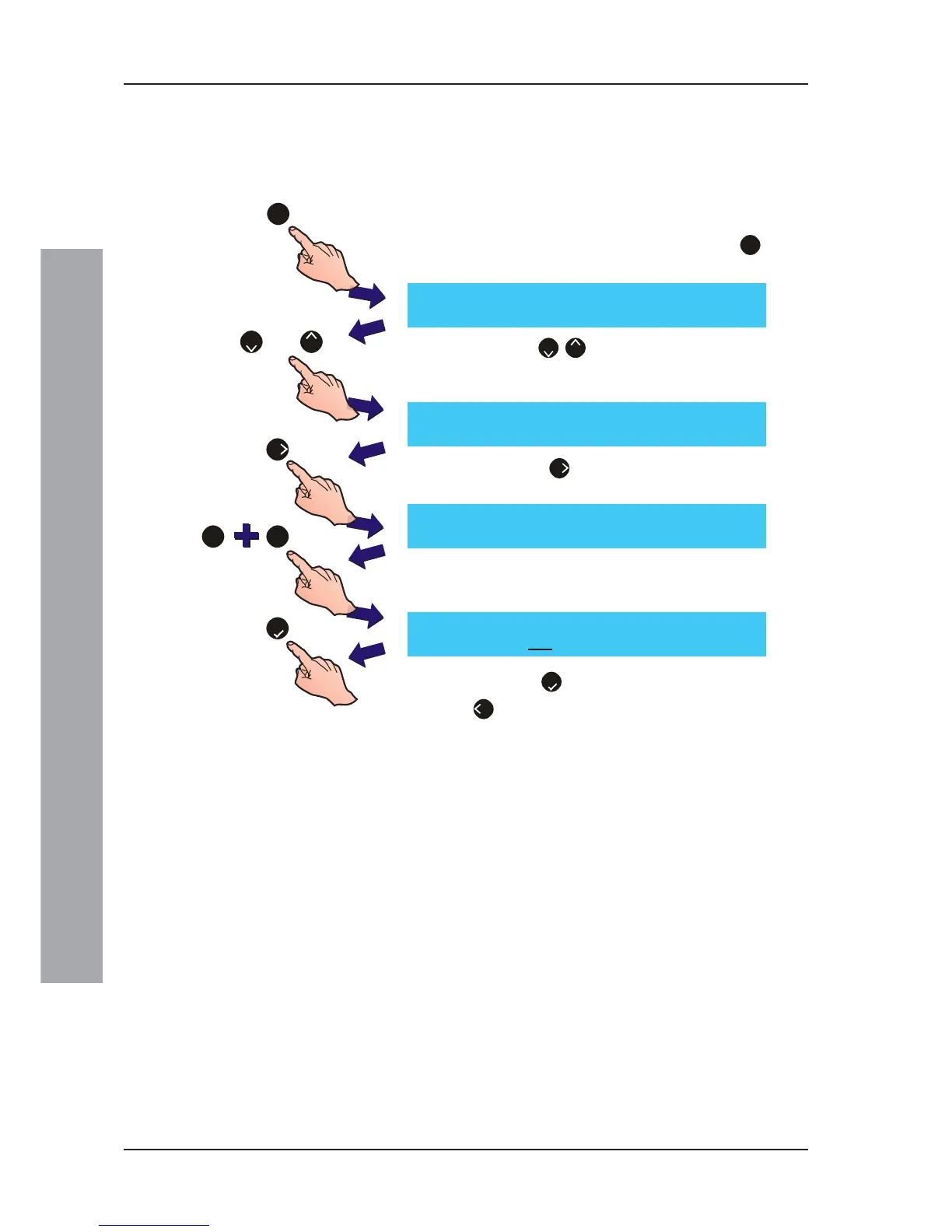

[Setup] Language = English
> : Change × : More < : Exit
[Setup] No. of Repeaters = 0
> : Change × : More < : Exit
[Setup] No. of Repeaters = 0
Enter new value ____ 3 : Confirm < : Cancel
[Setup] No. of Repeaters = 0
Enter new value 1 0 3 : Confirm < : Cancel
