ID50 Series Panel - Installation, Commissioning & Configuration Manual
Configuration Mode
57 997-263, Issue 4
September 2002
5.6.1.5 CBE Rules
The CBE Rules option is used during the SLC Loop
configuration. It is accessed through the Commissioning
Menu. The panel can be configured with up to 64 CBE
rules. This option enables modules to be assigned to a
CBE Rule.
Base Rule and Rule Range
Devices may be activated by any of up to 24 contiguously-
numbered CBE rules. When assigning modules to CBE
rules a Base Rule number has to be specified with an
associated rule range (up to 24 rules starting at the base
rule) and the auxiliary action. The Base Rule number and
rule range apply to AUX - Hold Switch, AUX - Abort Switch,
SND, RLY, CTL, EST, MRL, IRL and ESO.
For input devices the range specifies which CBE rules
are affected by the input. The action taken by the CBE
rule depends on the type of input.
For outputs, the range specifies which CBE rules will
affect the output. The output takes the highest priority
status from a combination of all the CBE rules.
The Base Rule number has a valid range of 1-41 with a
default of 1. The Rule Range will default to having the
first CBE rule set only.

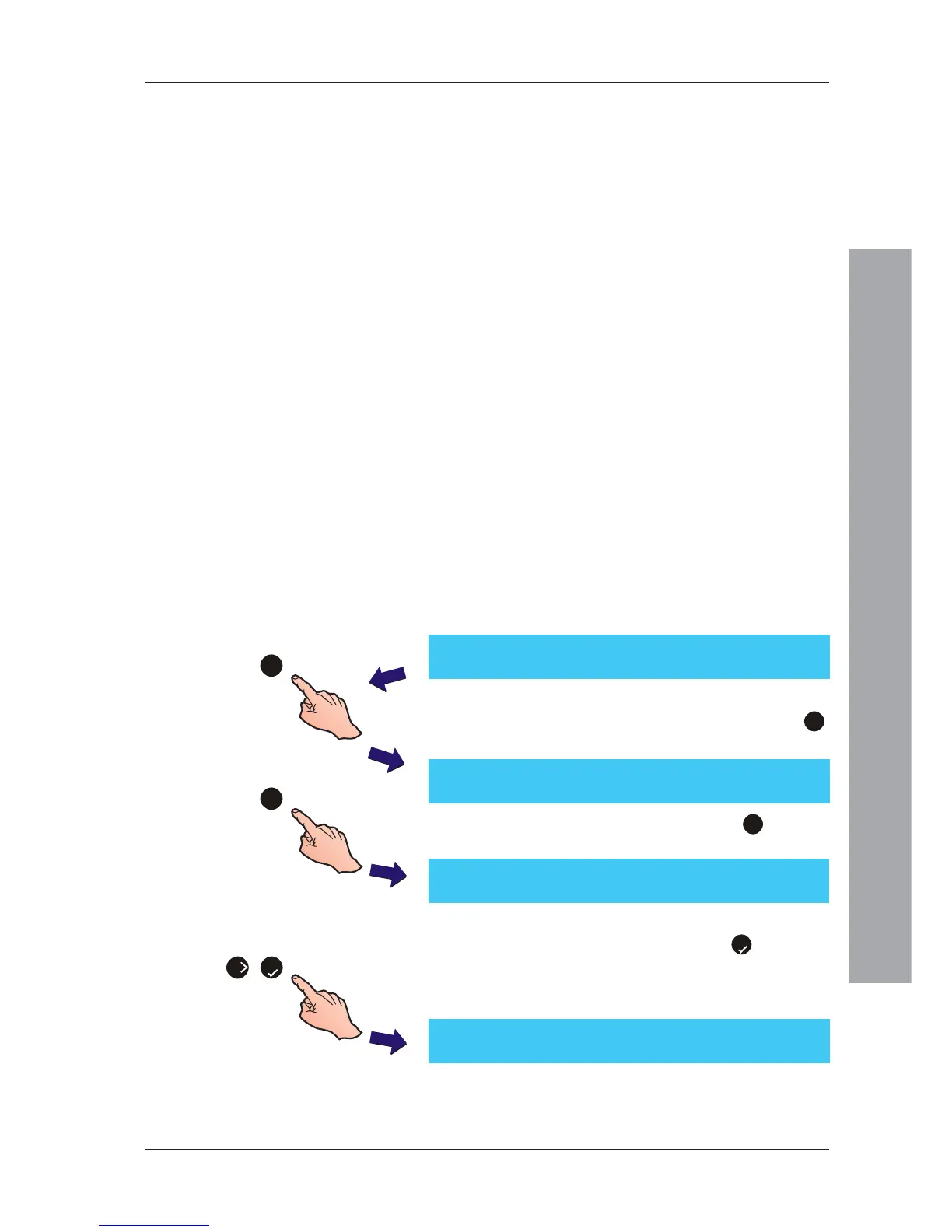

To select or change the Rule number to which a module
is assigned:
1 With the module CBE Rules attributes screen
displayed, use the numeric keypad and press the
3
button to select the CBE Rules option screen:
2 Using the numeric keypad, press the
1
button to
change the CBE Base Rule:
3 Using the numeric keypad enter the desired Base
Rule, for example Rule 6, and press
5
to confirm.
The CBE Rule range on line 1 changes, now starting
at 6. The CBE Rule number in the square brackets
on line 2 also relects the changed selection:
[Module nn - SDR] 1 : Zone (nn) 2 : Type
3 : CBE Rule (nn) 4 : [ Blank/Existing Text ]
[Mnn] CBE Rules 01
--------------------------------------------
24
1: Base [01: No] NNNNNNNNNNNNNNNNNNNNNNNN
3
[Mnn] CBE Rules 01
--------------------------------------------
24
Enter CBE Rule: _ < : Cancel
1
6
[Mnn] CBE Rules 06
--------------------------------------------
29
1: Base [06: No] NNNNNNNNNNNNNNNNNNNNNNNN
5
